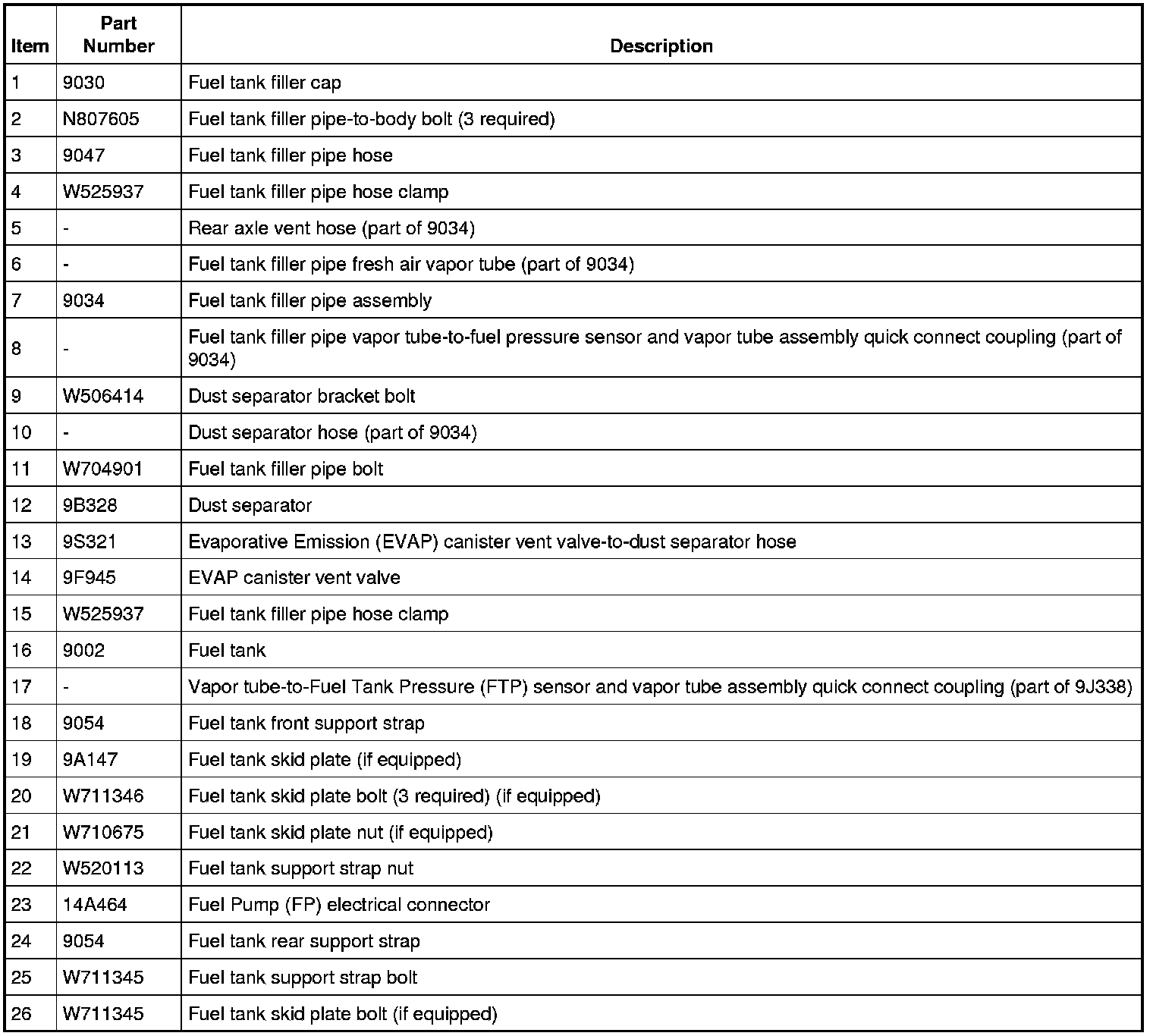

Fuel Tank and Filler Pipe - Exploded View

Fuel Tank and Filler Pipe - Exploded View

Explorer Sport Trac

NOTE: Vehicle body removed from art for clarity.











Explorer/Mountaineer

NOTE: Vehicle body removed for clarity.










1. For additional information, refer to the procedures.
