Trailer Hitch: Service and Repair

TRAILER HITCH

Removal and Installation

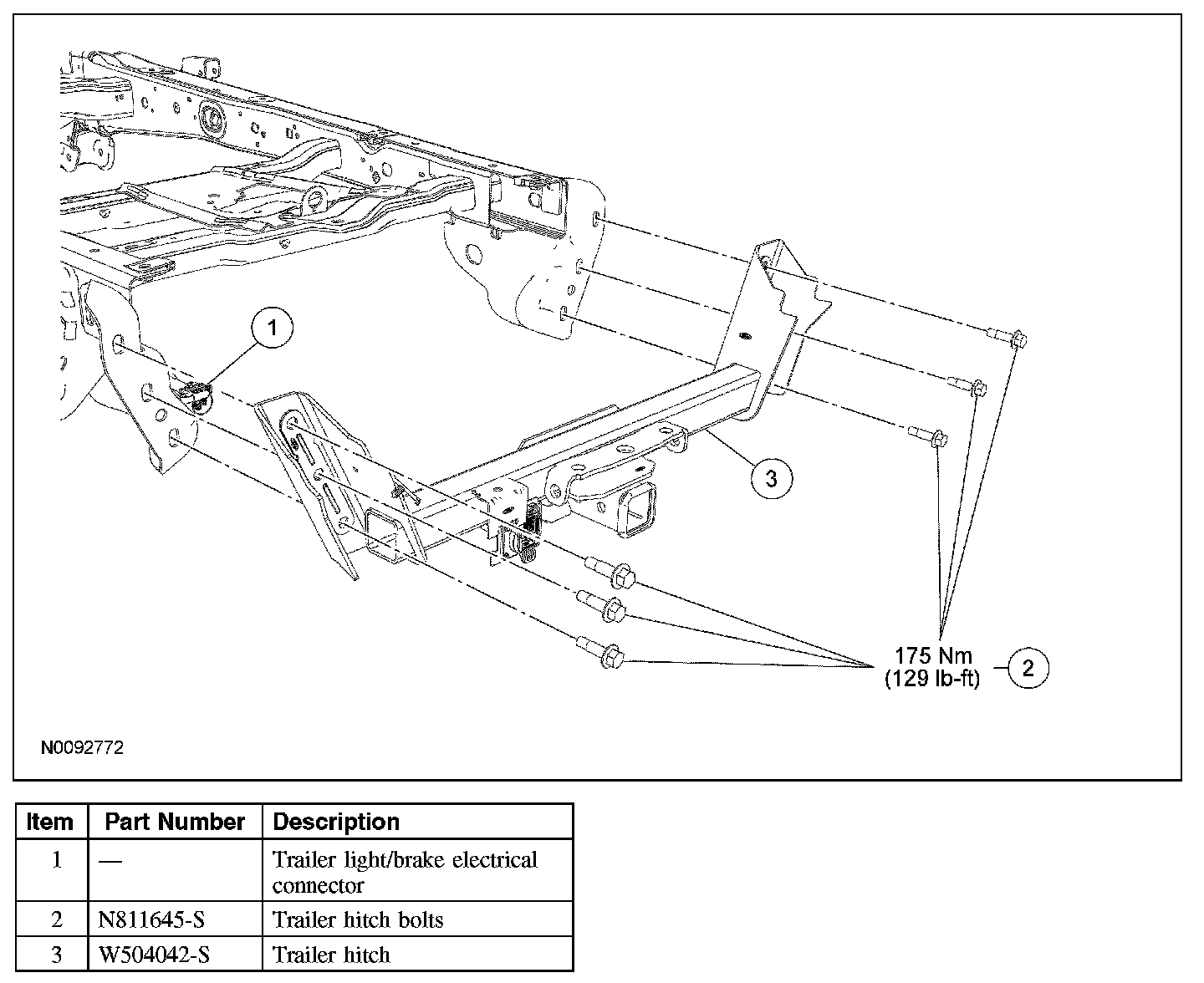

Trailer Hitch:

1. Remove the rear bumper.
2. Disconnect the trailer light/brake electrical connector.
3. Remove the trailer hitch bolts and remove the trailer hitch.
- To install, tighten to 175 Nm (129 lb-ft).

4. To install, reverse the removal procedure.
