Pinpoint Test A: The Speed Control Is Inoperative
Speed Control
Pinpoint Test A: The Speed Control Is Inoperative
Refer to Wiring Diagram Set 31, Speed Control for schematic and connector information. Diagrams By Number
Normal Operation
The PCM sends a signal through circuit VES10 (WH) to the speed control switches, which passes through the clockspring. The return signal is sent to the PCM through circuit RES08 (GN/BN) and the clockspring. When the brake pedal is applied, the stoplamp switch sends a voltage signal to the PCM on circuit CCB08 (VT/WH) to deactivate the speed control if engaged.
The speed control deactivator switch (part of the stoplamp switch) interrupts circuit CES09 (VT/OG) removing the voltage signal to the PCM when the brake pedal is applied. This is a redundant signal to the PCM.
This pinpoint test is intended to diagnose the following:
- Wiring, terminals or connectors
- PCM not configured for speed control
- Stoplamp switch
- Speed control deactivator switch (integral to the stoplamp switch)
- Speed control switches
- Digital Transmission Range (TR) sensor
- Vehicle speed signal
- PCM

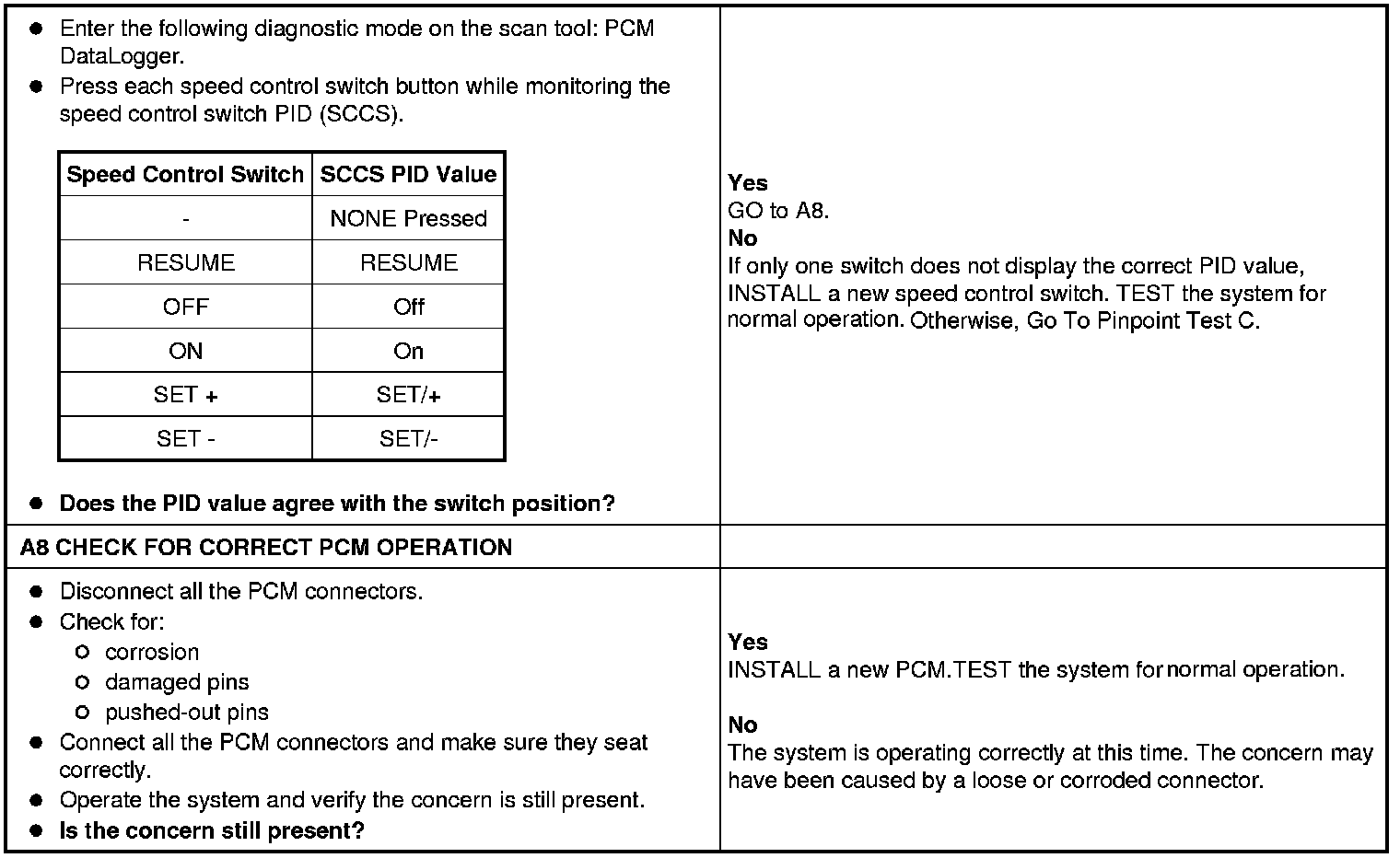

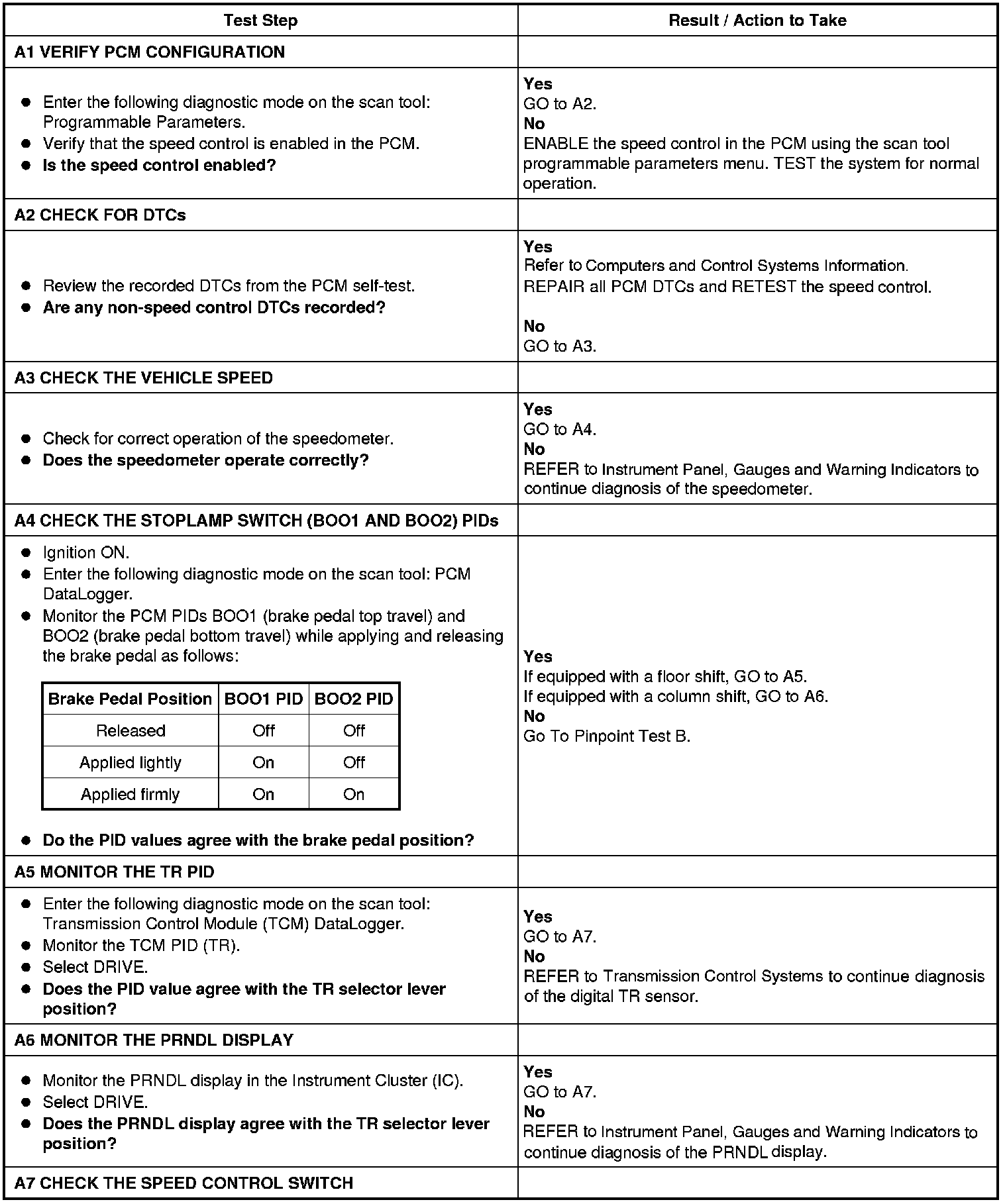

PINPOINT TEST A: THE SPEED CONTROL IS INOPERATIVE
