Home >> Ford >> 2009 >> F 150 2WD V8-5.4L Flex Fuel >> Repair and Diagnosis >> Locations >> Component Locations >> Location Views >> View 151-9 (Engine)

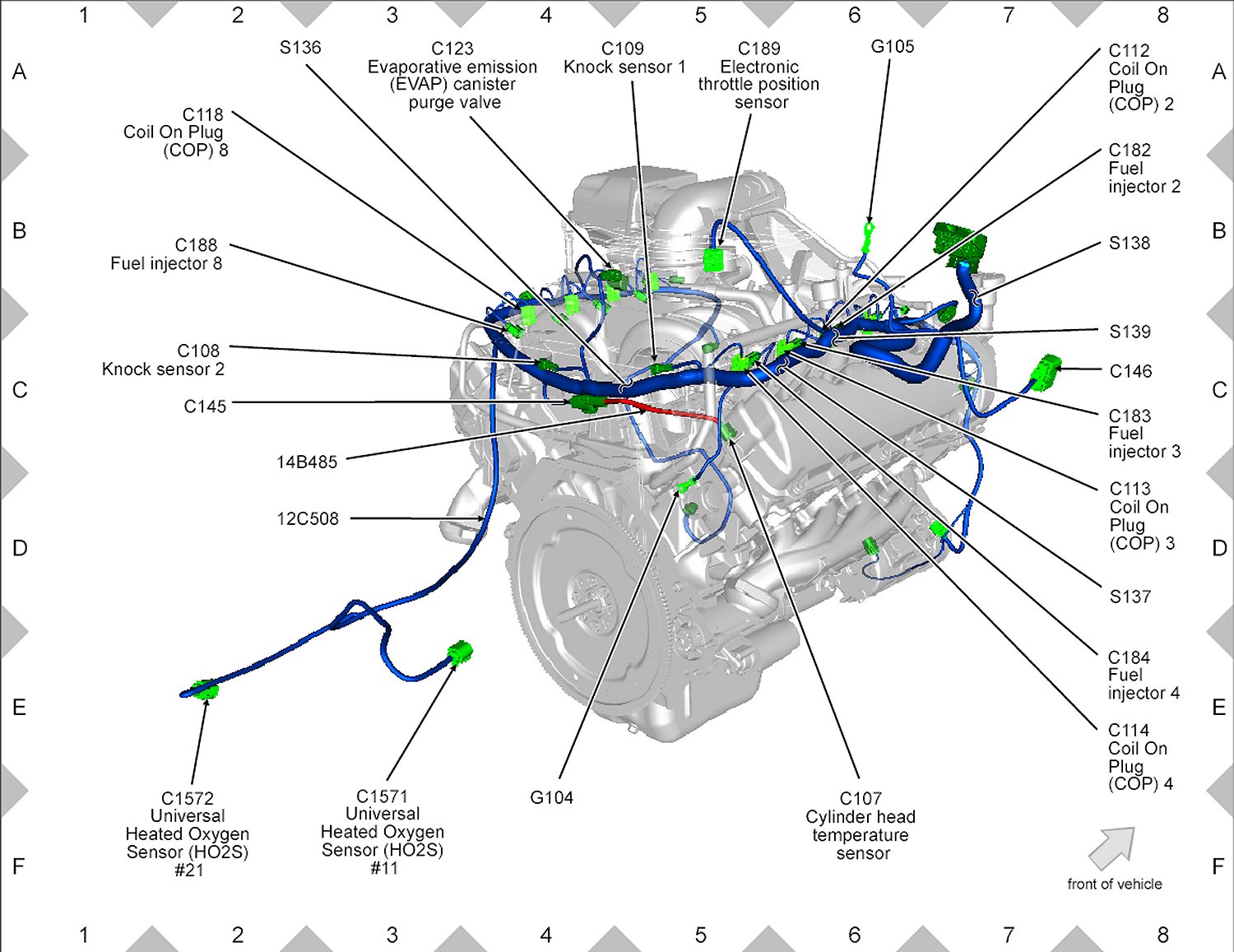

View 151-9 (Engine)

151-09:
