Connector Locations

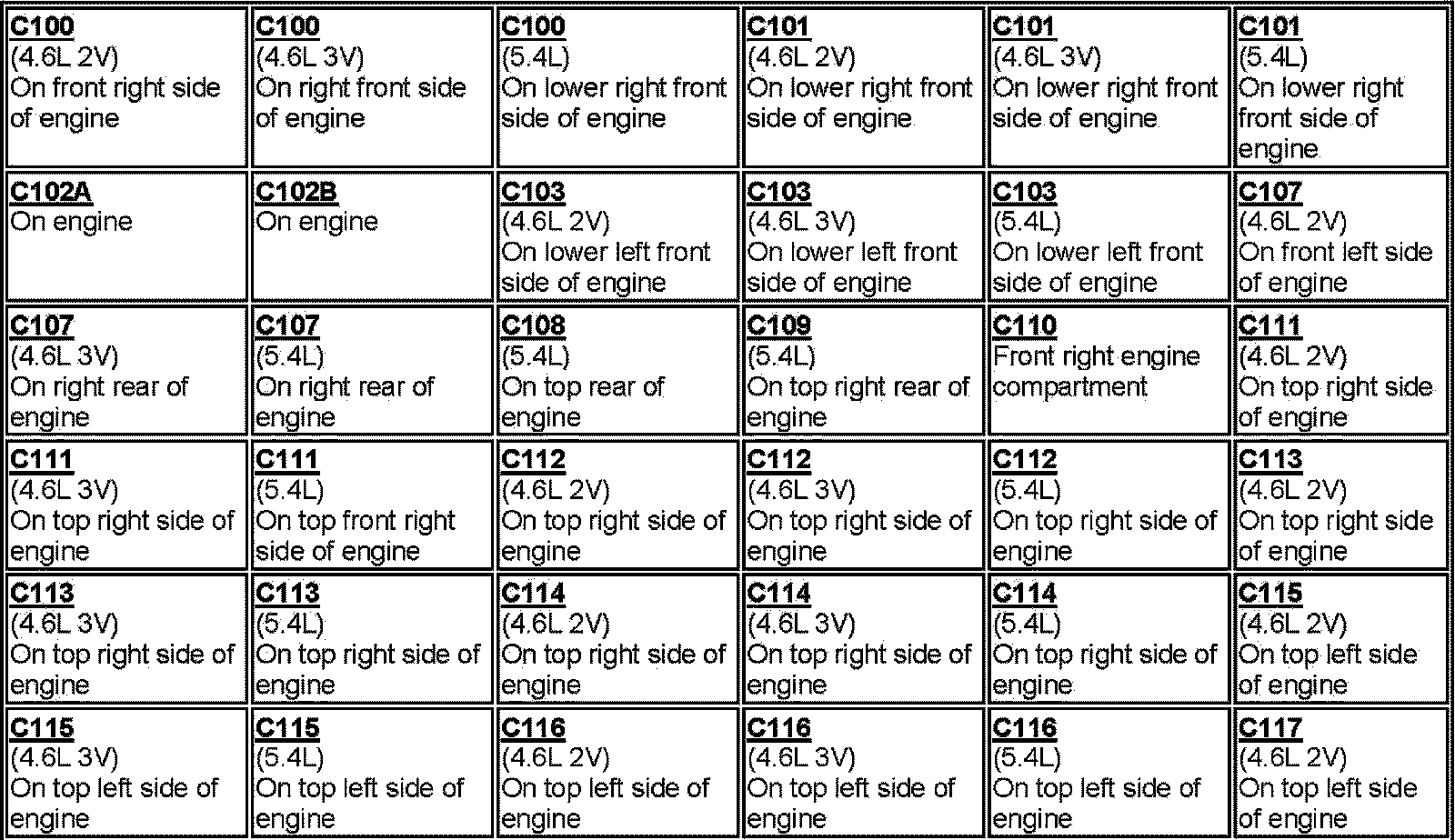

C100-C117:

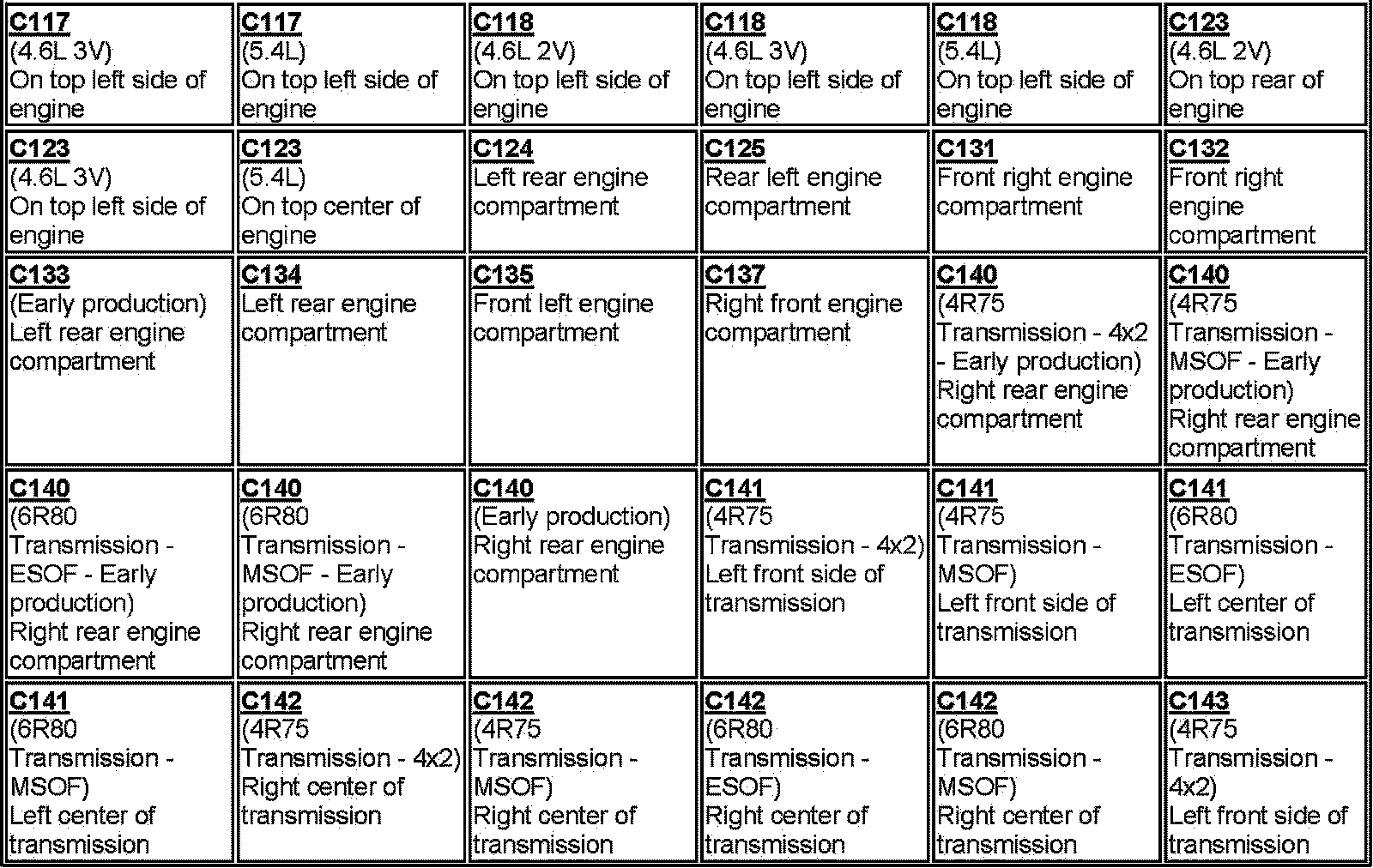

C117-C143:

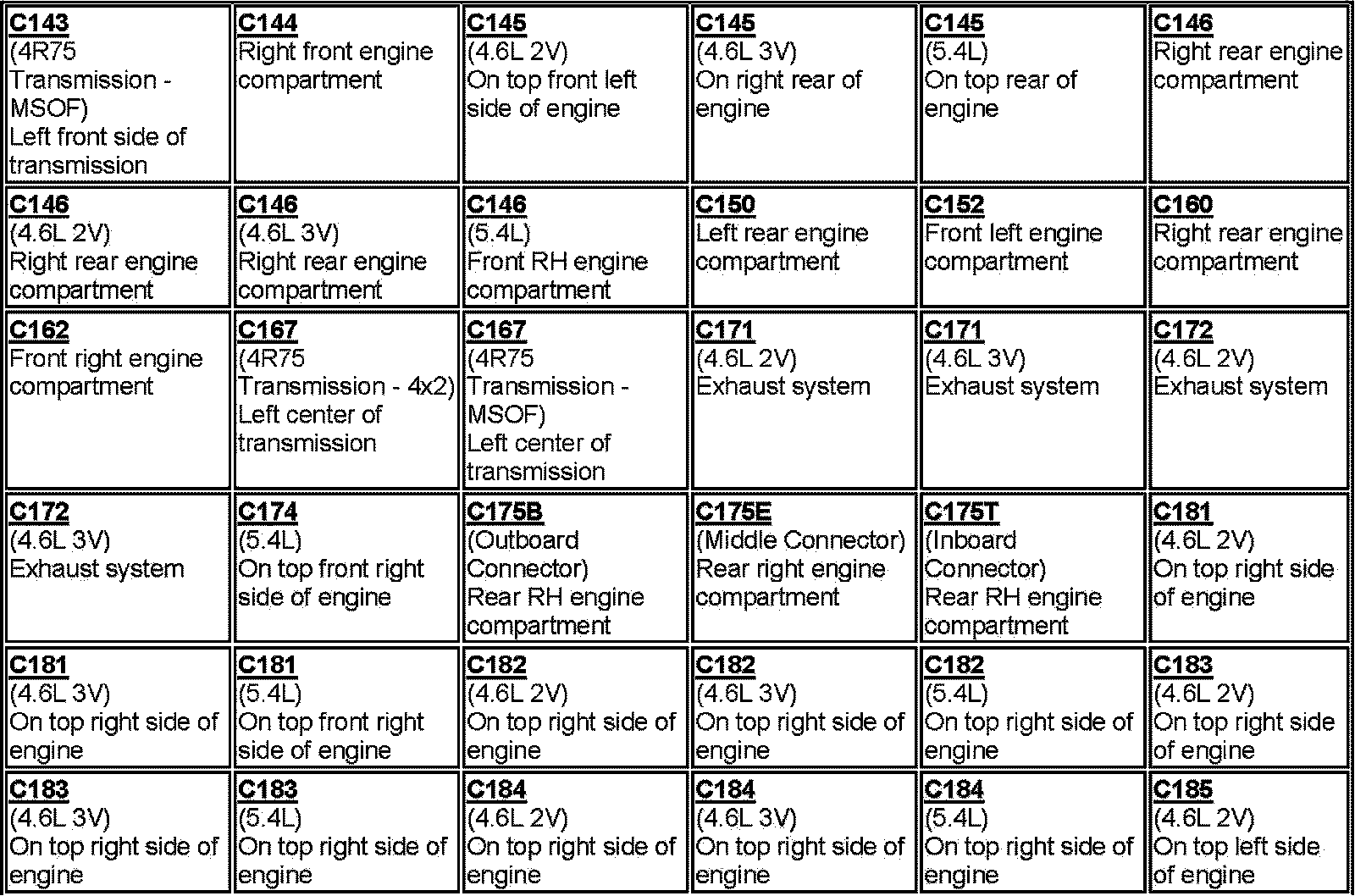

C143-C185:

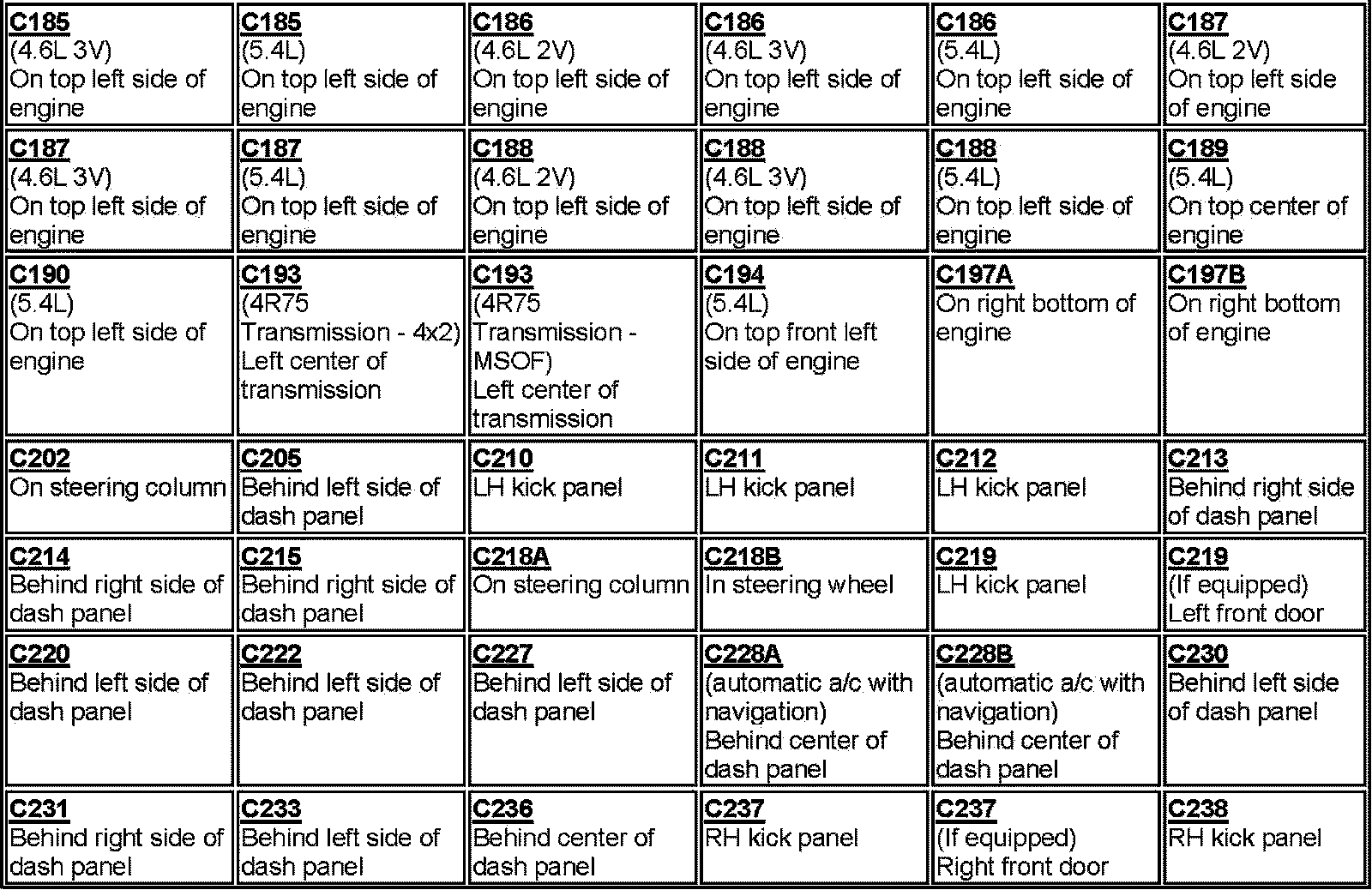

C185-C238:

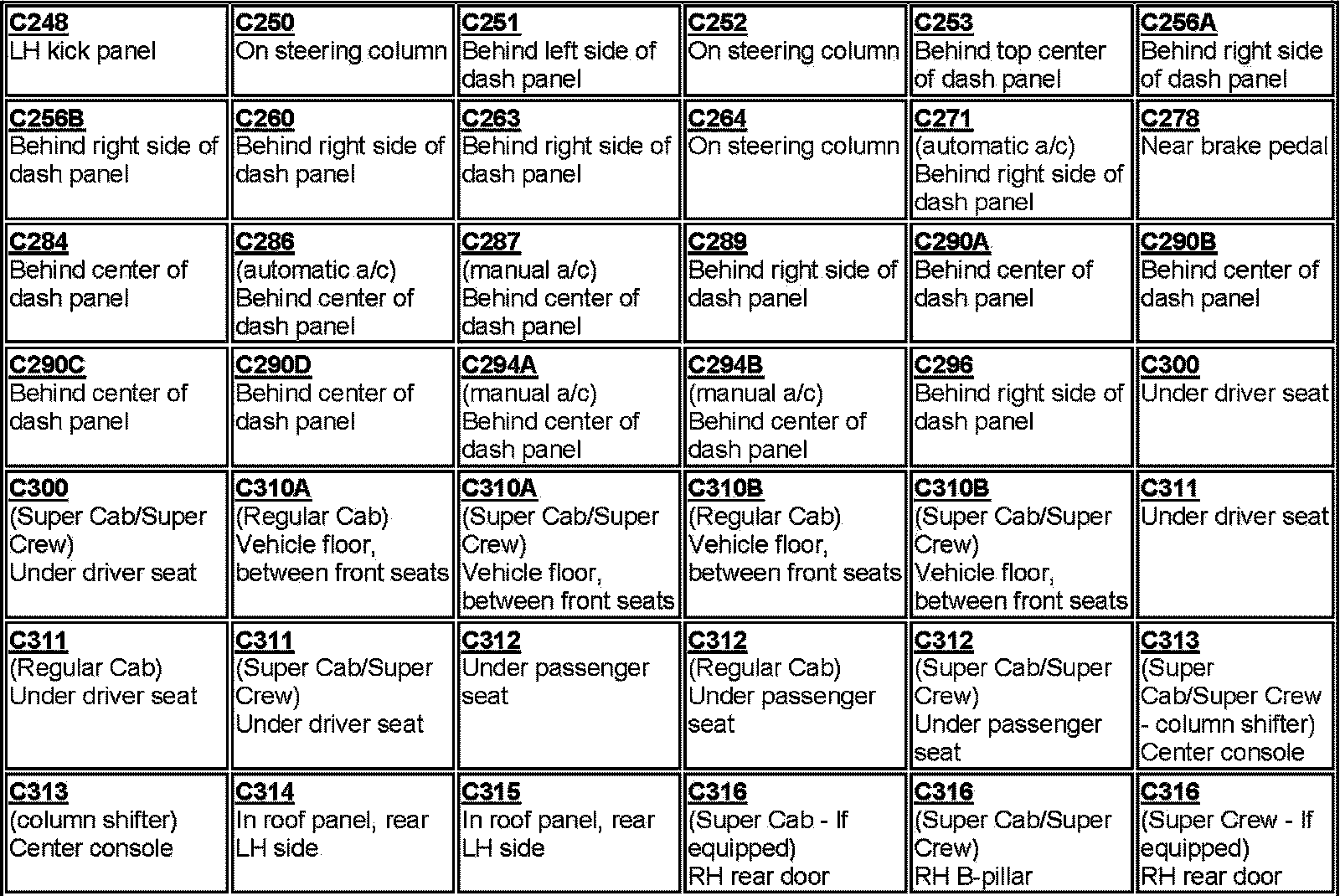

C248-C316:

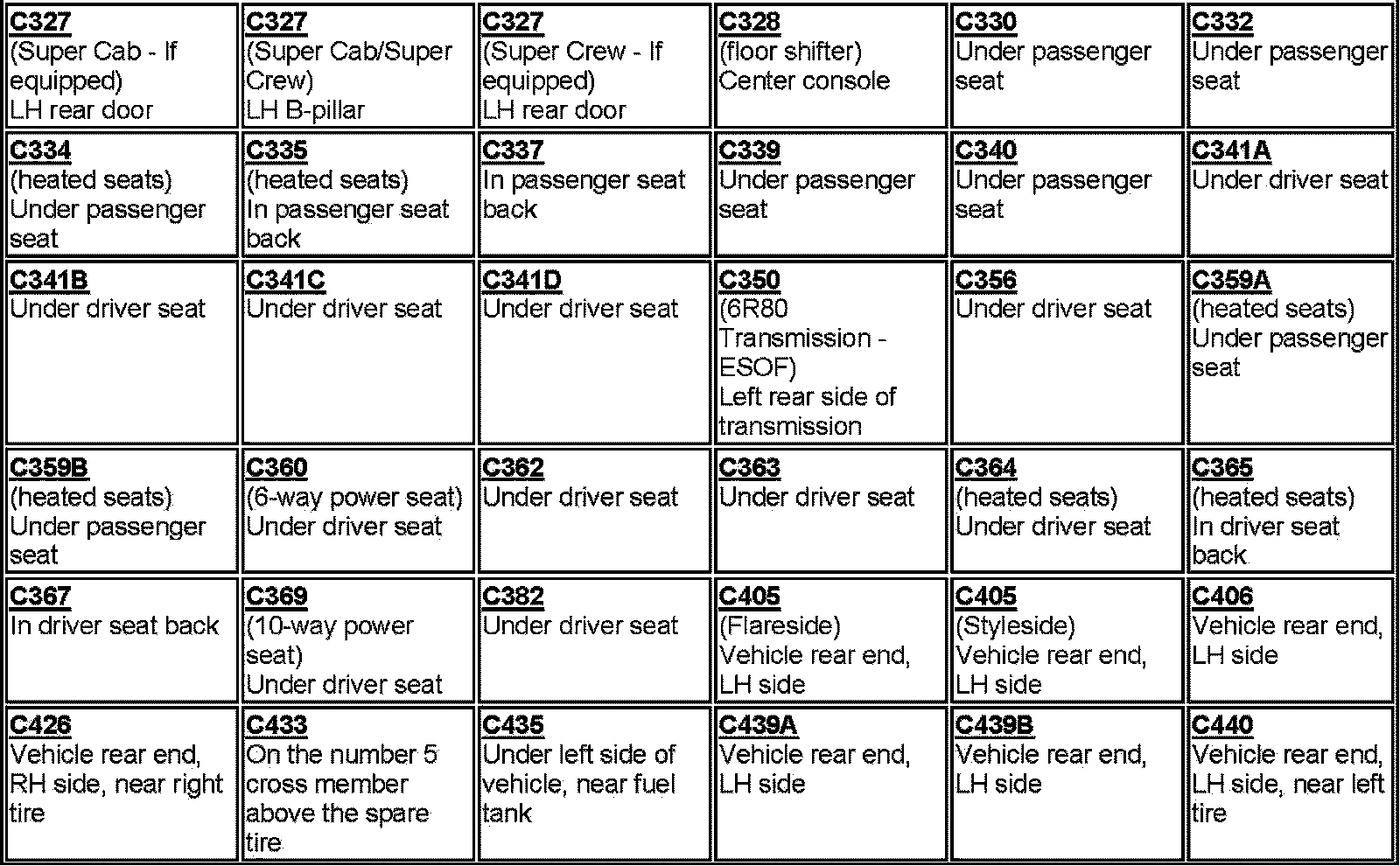

C327-C440:

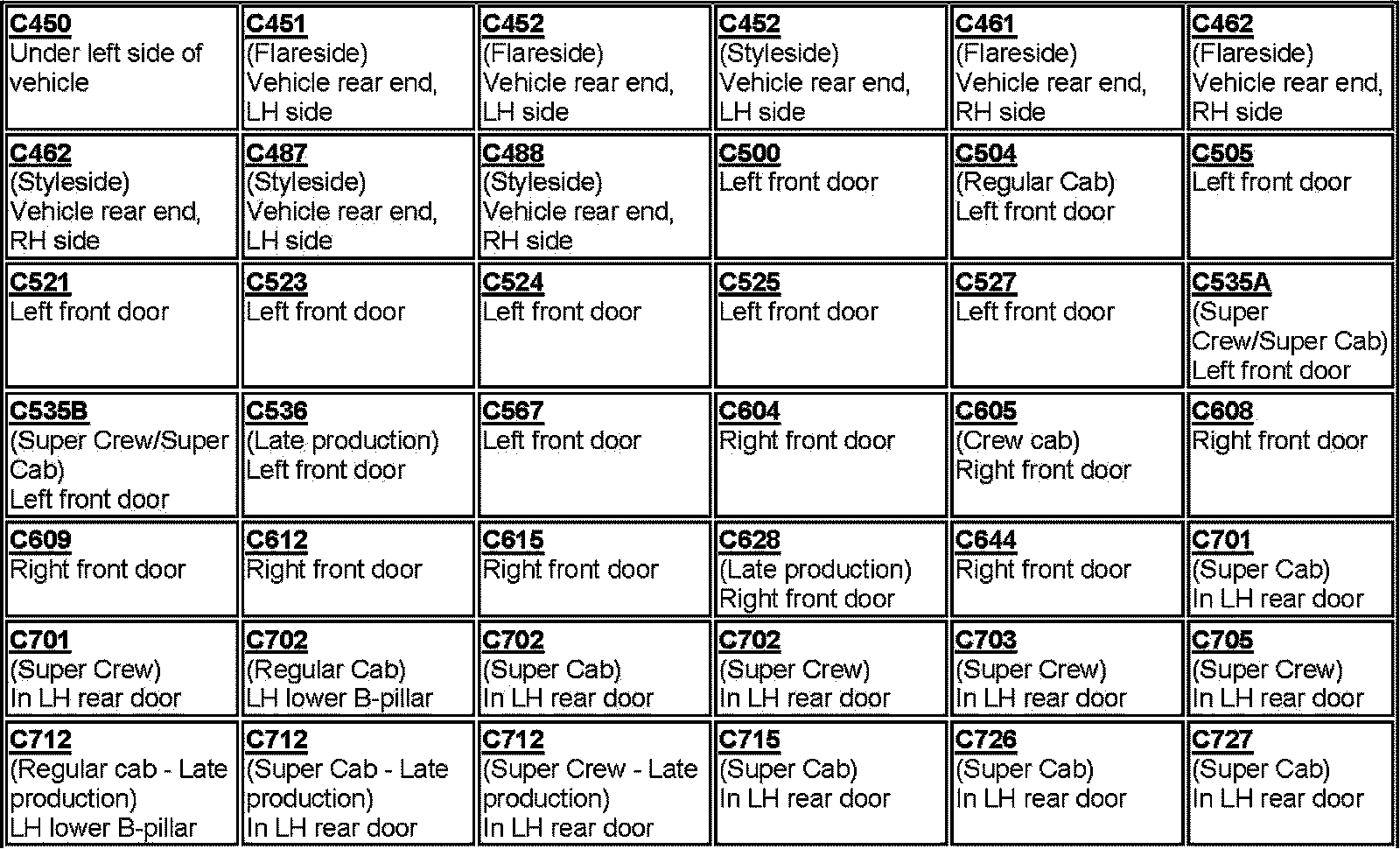

C450-C727:

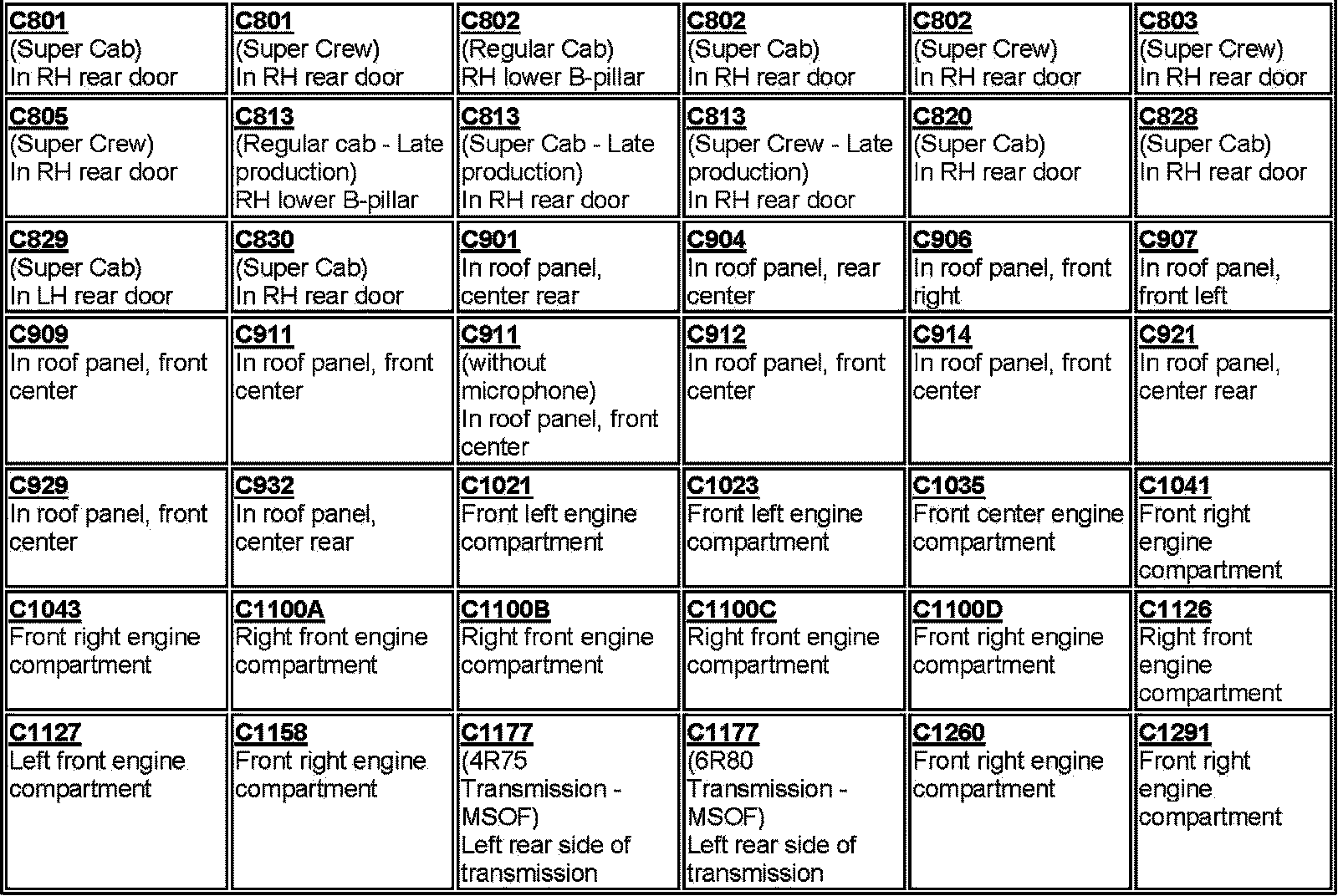

C801-C1291:





C1311-C1580:

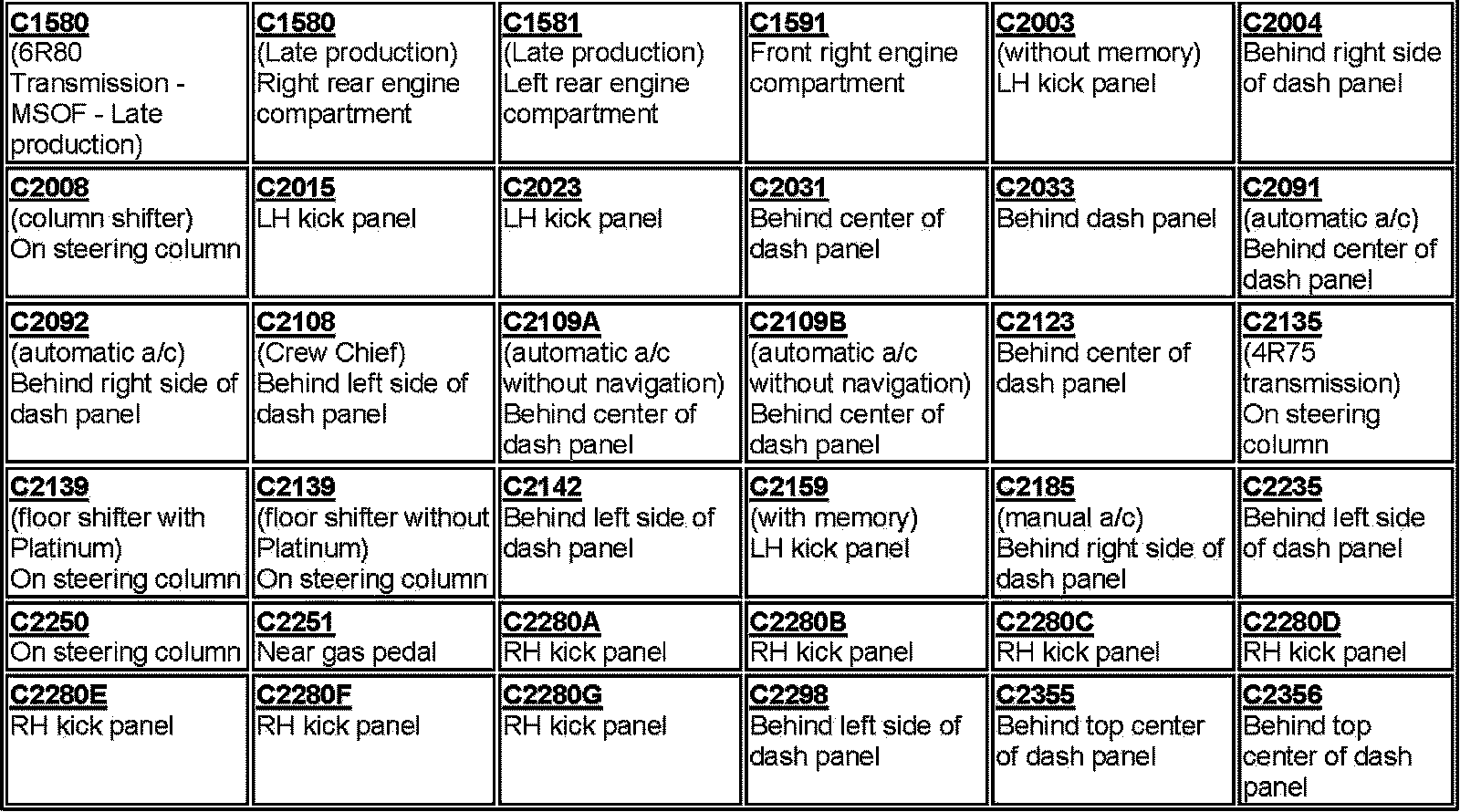

C1580-C2356:

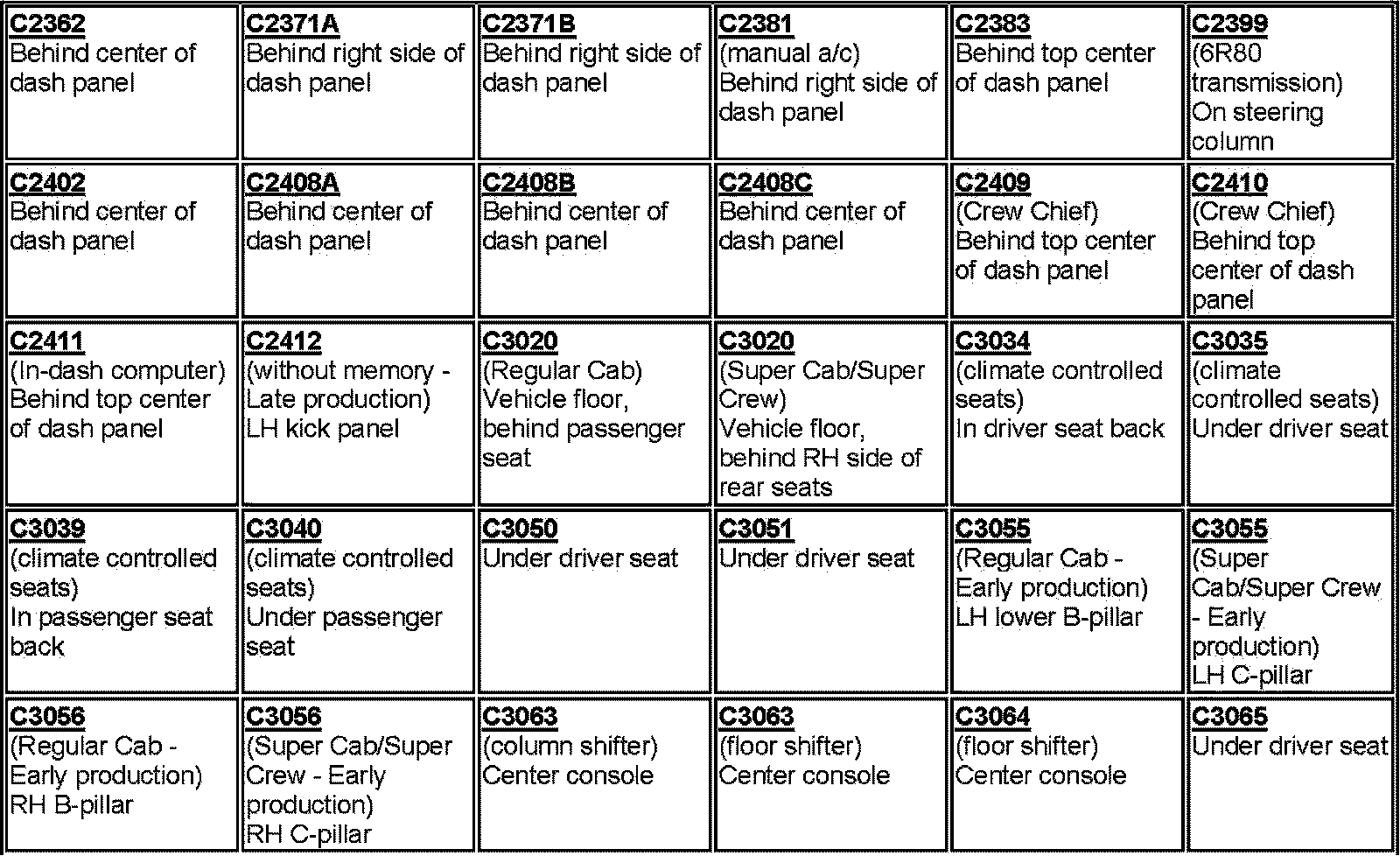

C2362-C3065:

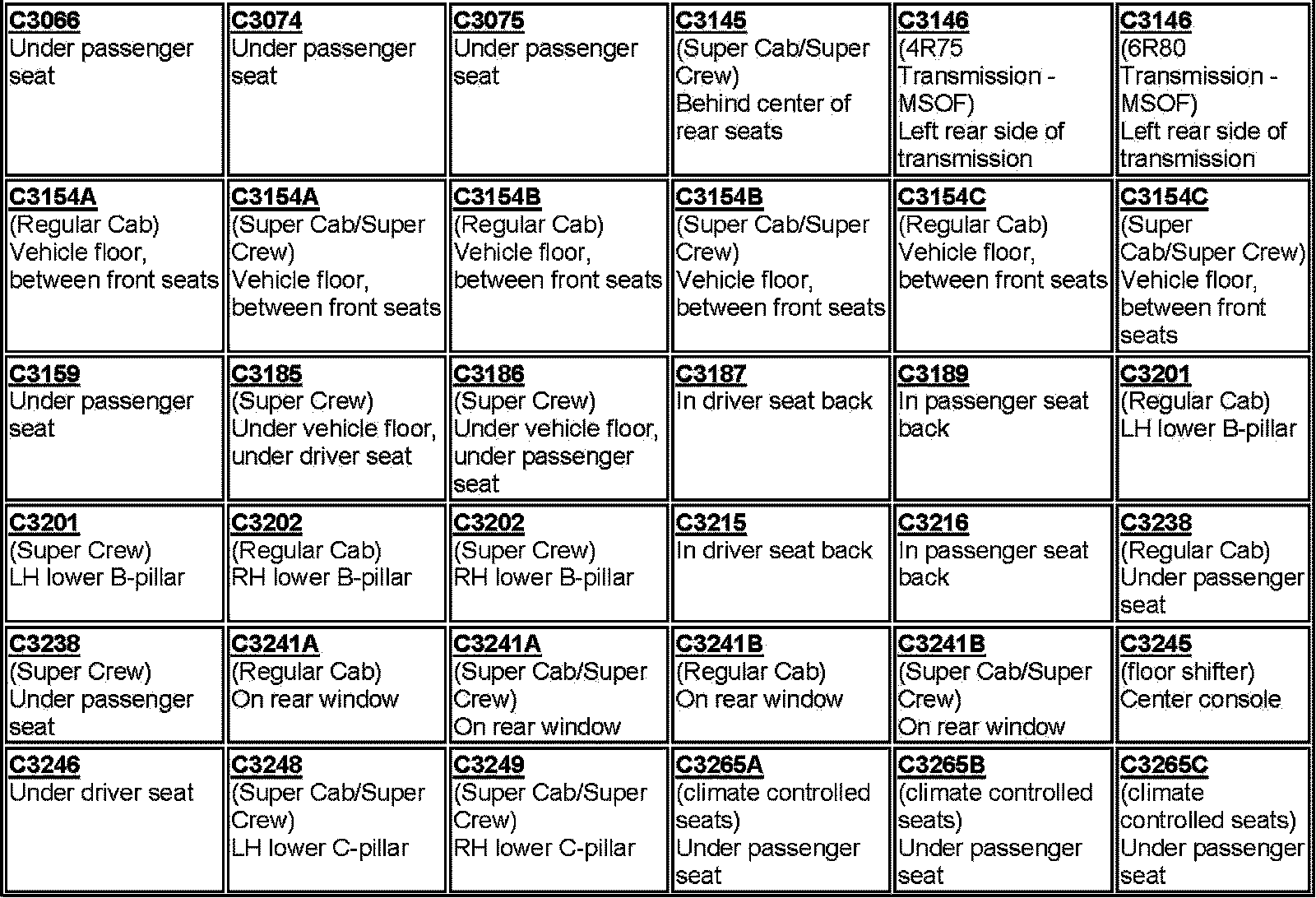

C3066-C3265C:

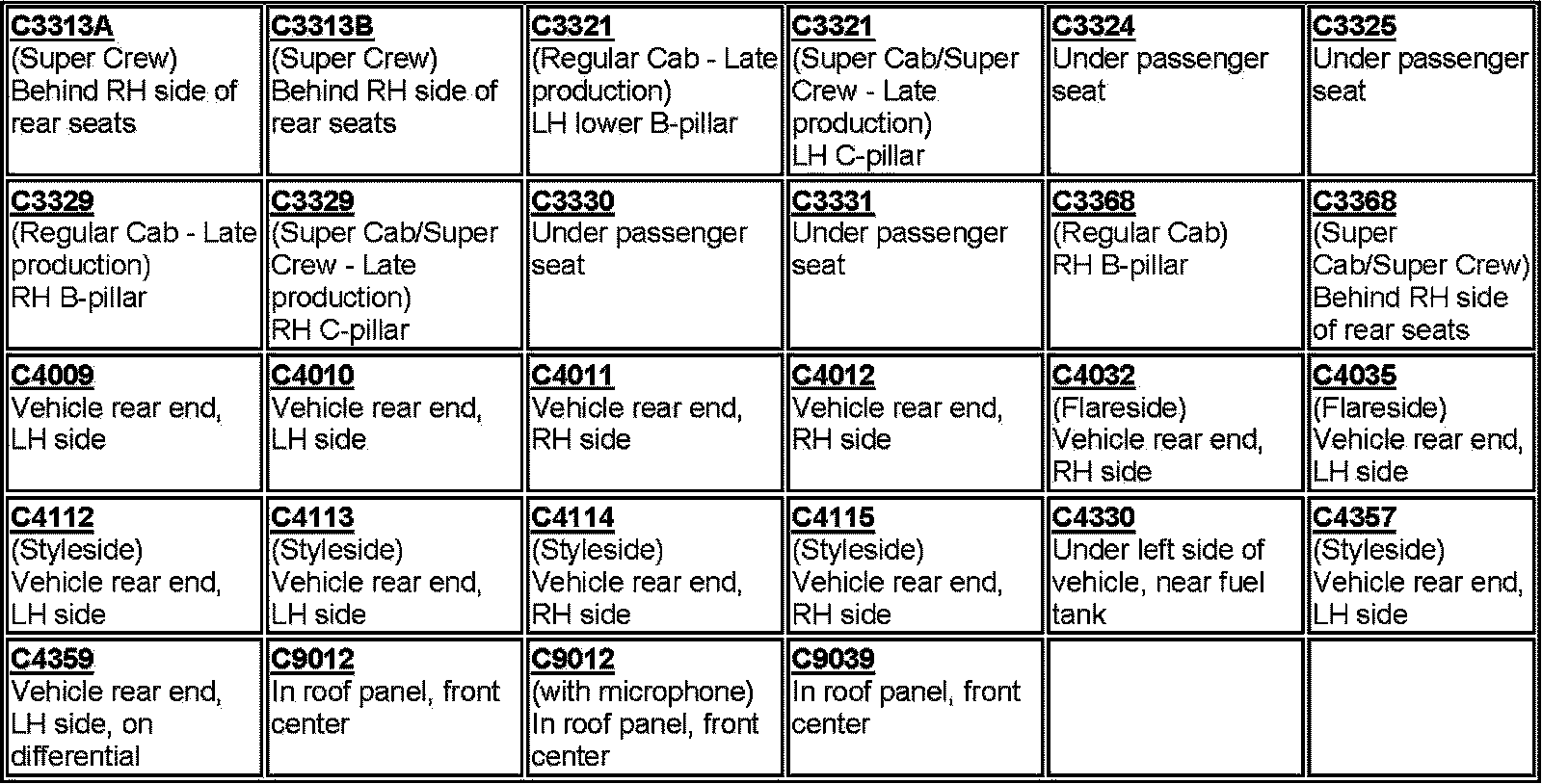

C3313A-C9039:
