Locations
>>
Splice Locations
Splice Locations

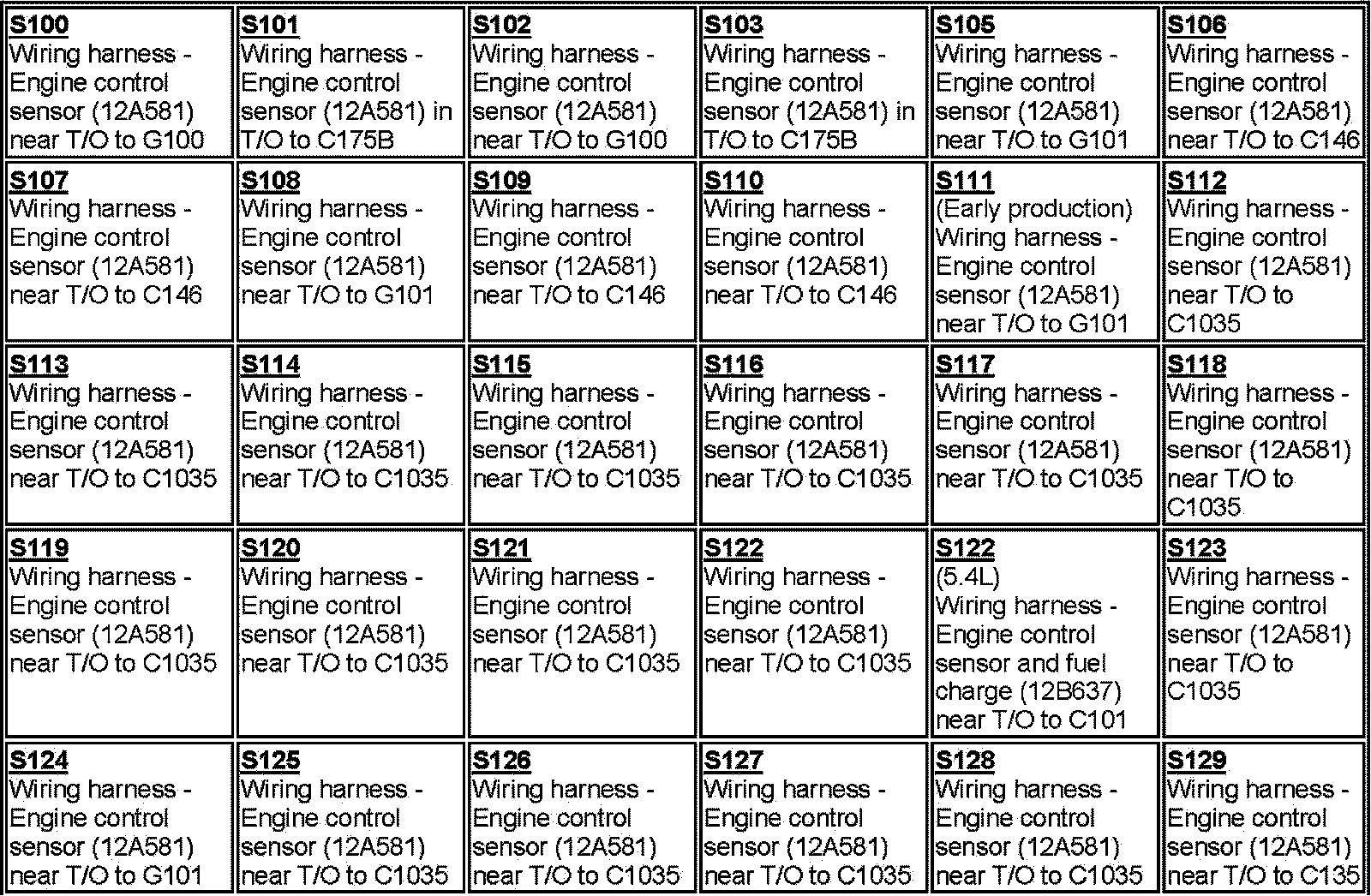

S100-S129:

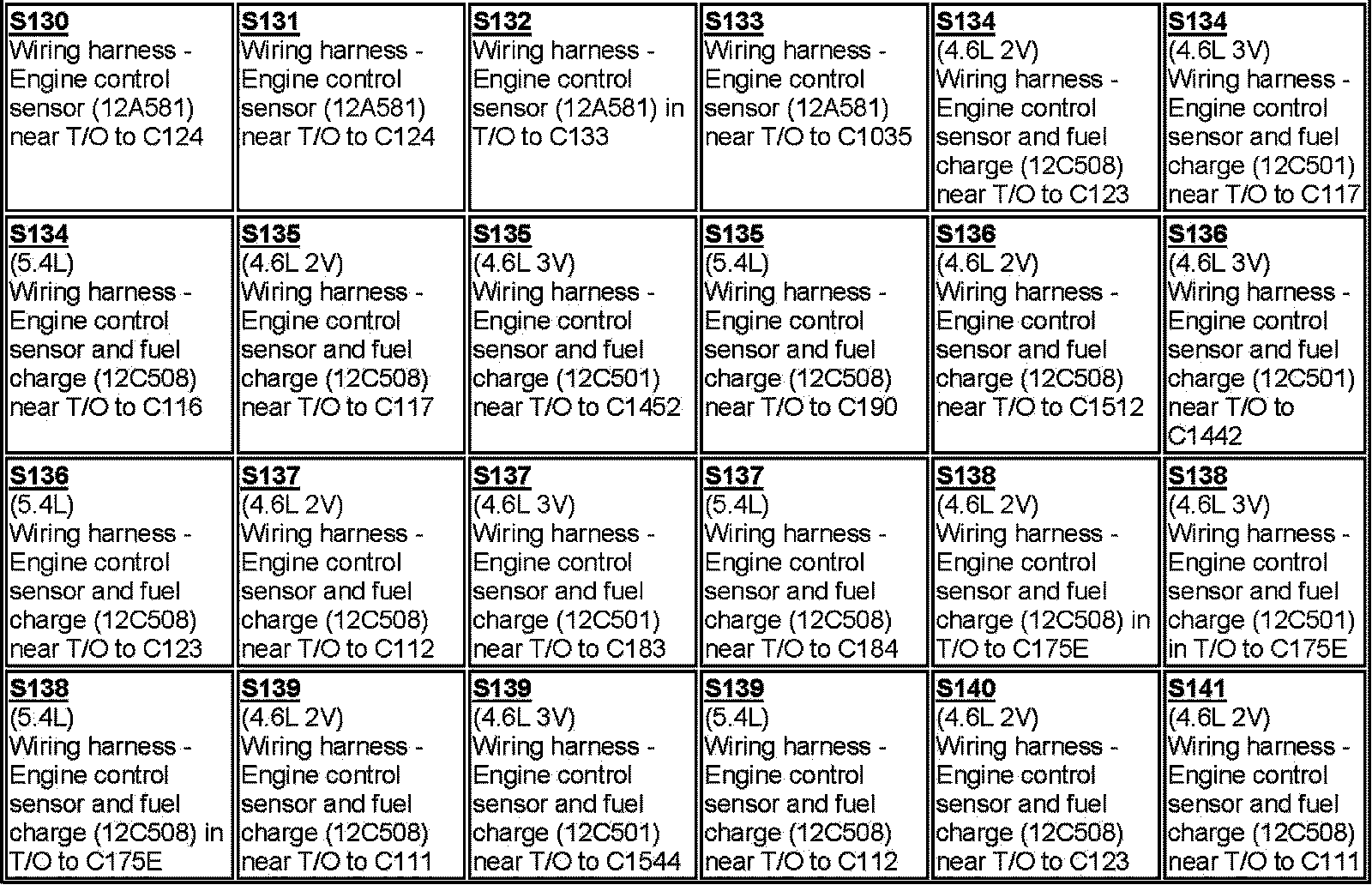

S130-S141:

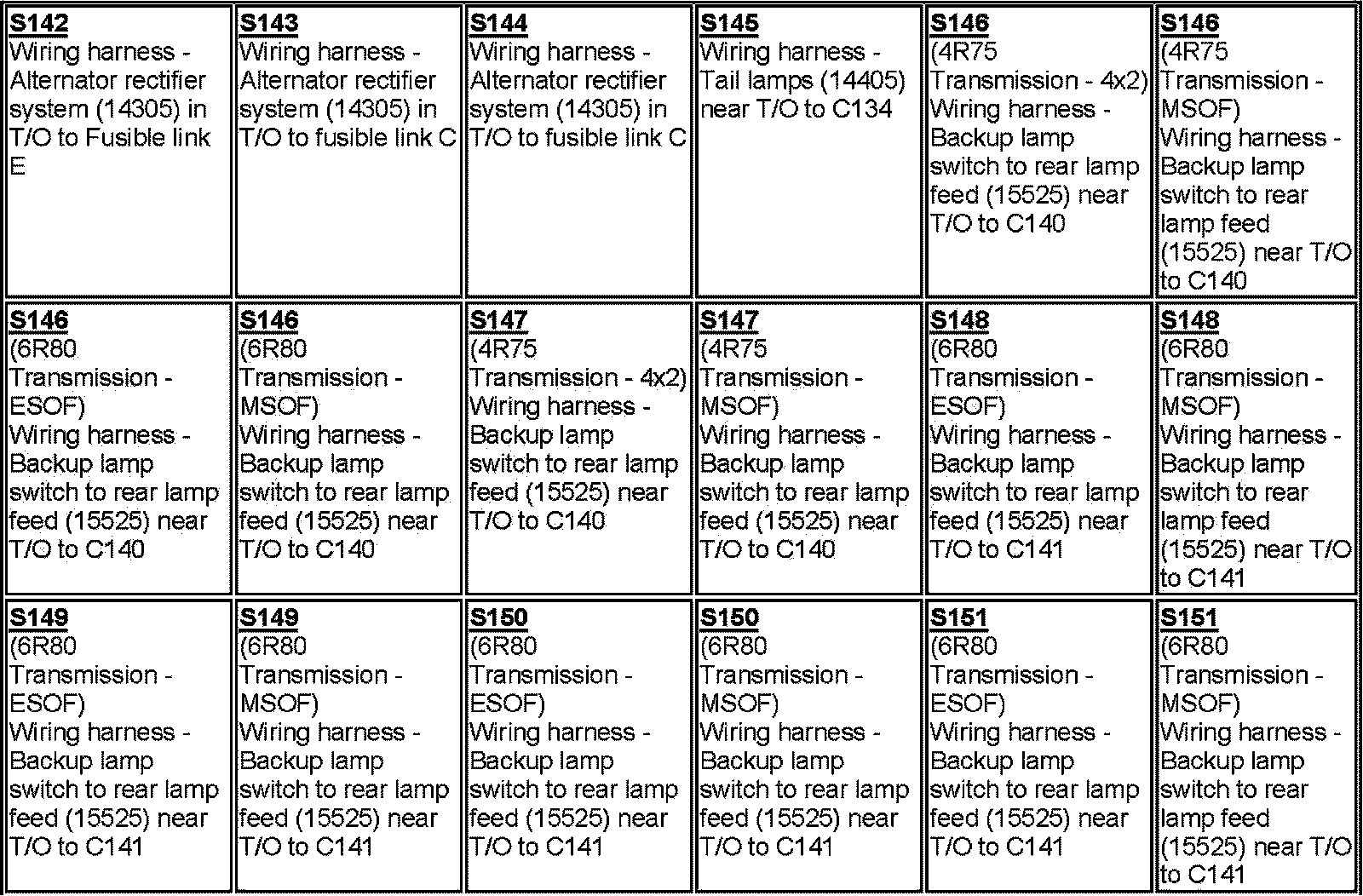

S142-S151:

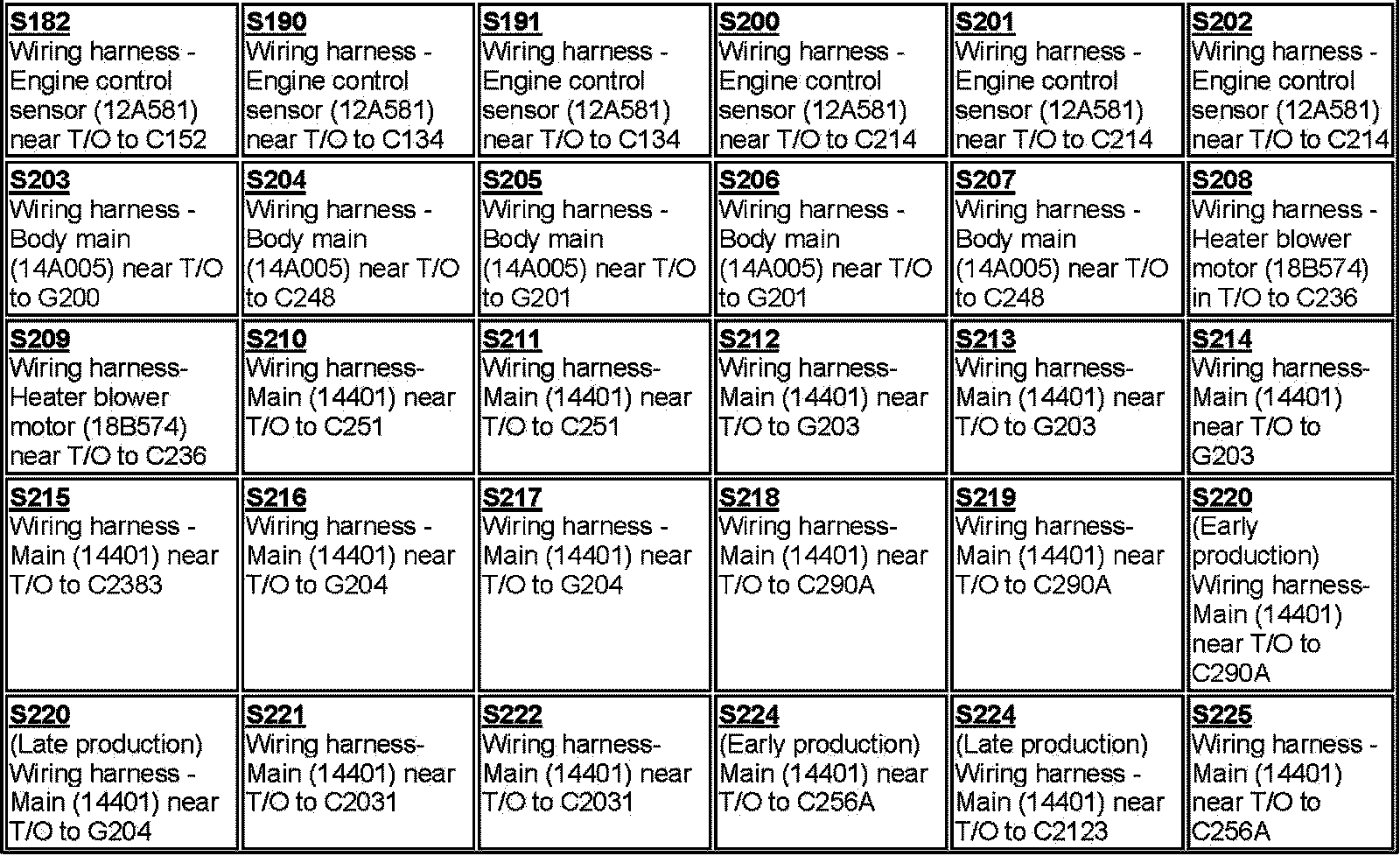

S182-S225:

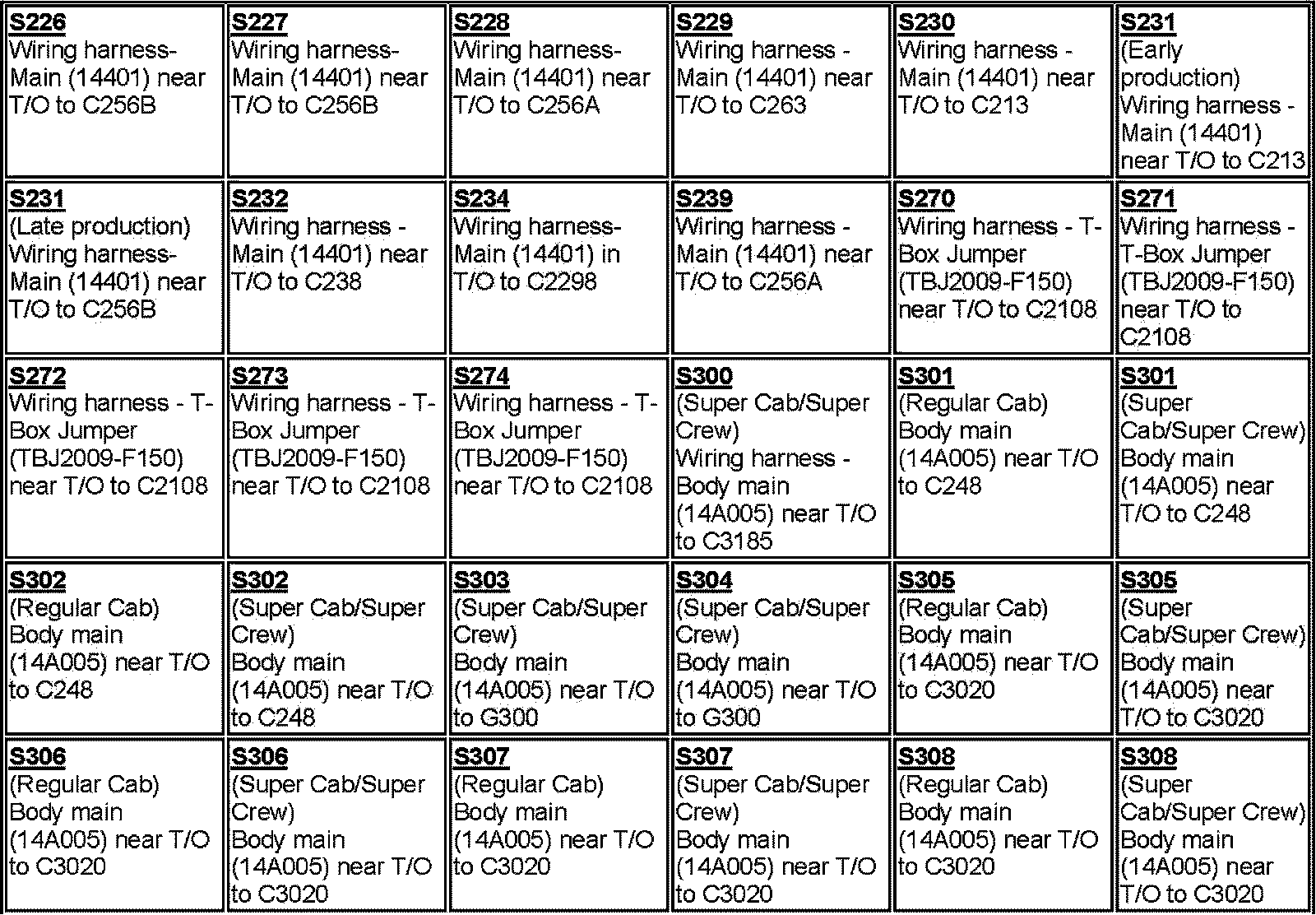

S226-S308:

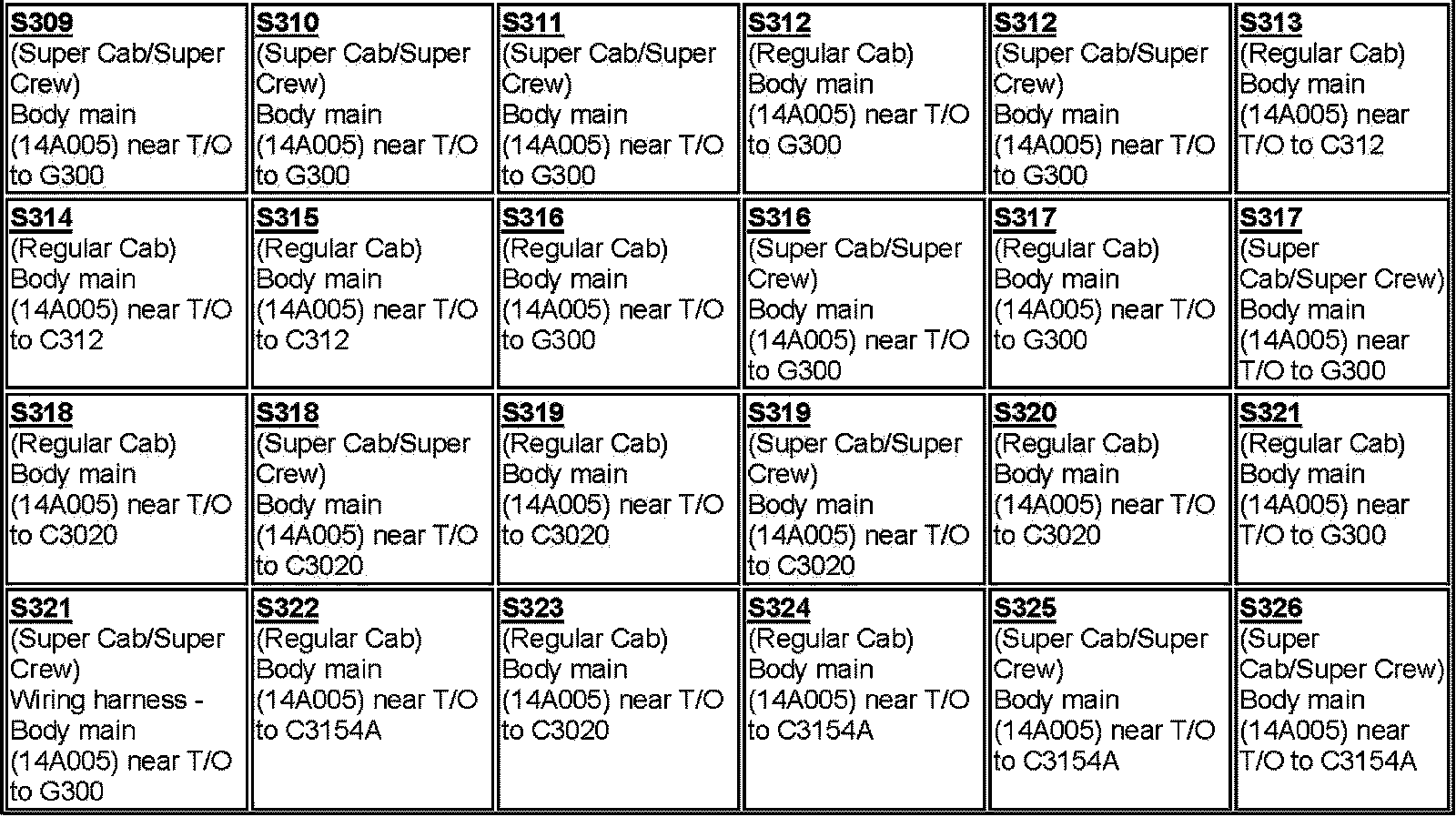

S309-S326:

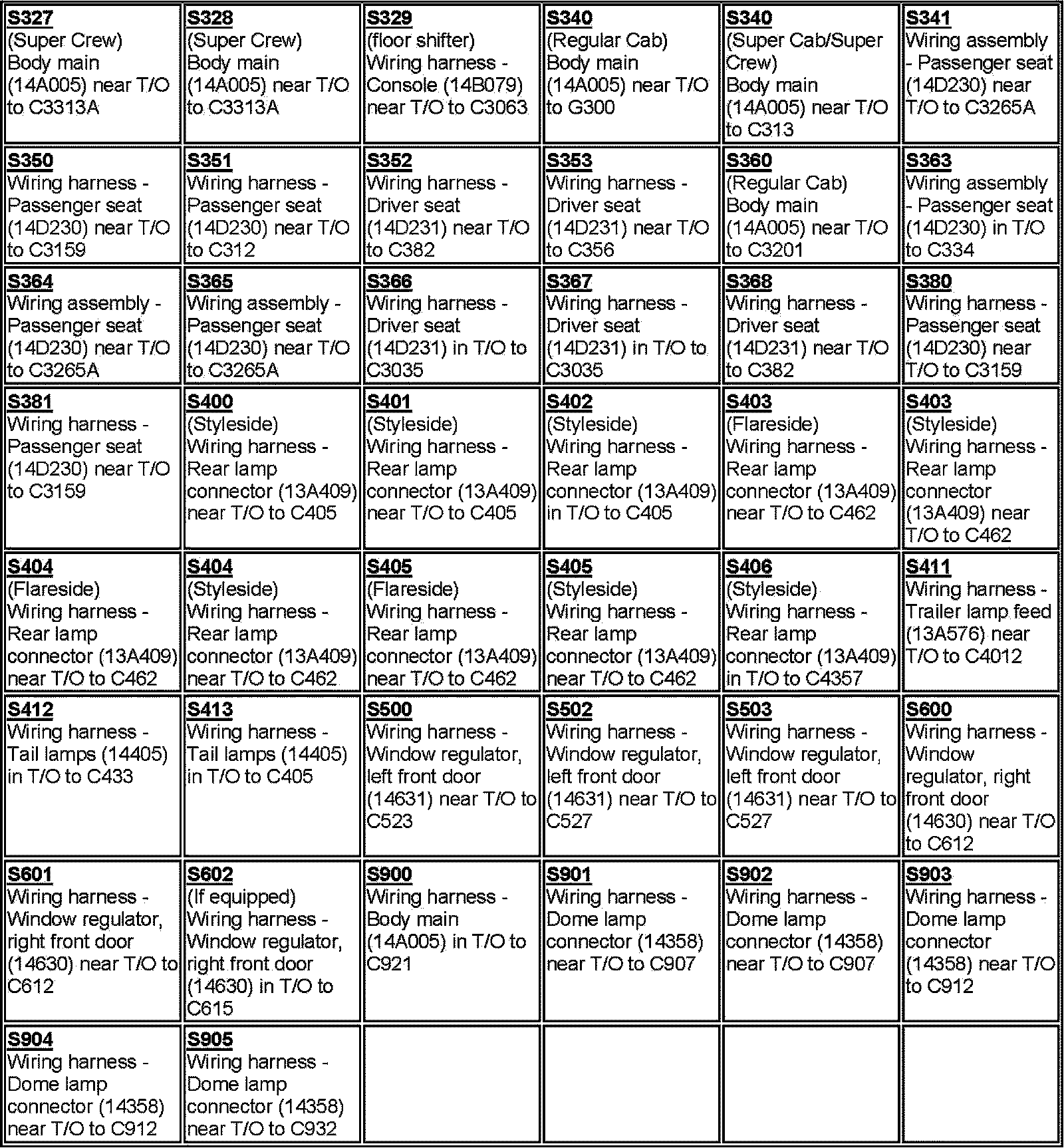

S327-S905:
