Typical Diagnostic Reference Values

Typical Diagnostic Reference Values Notes (Part 1):





Typical Diagnostic Reference Values Notes (Part 2):

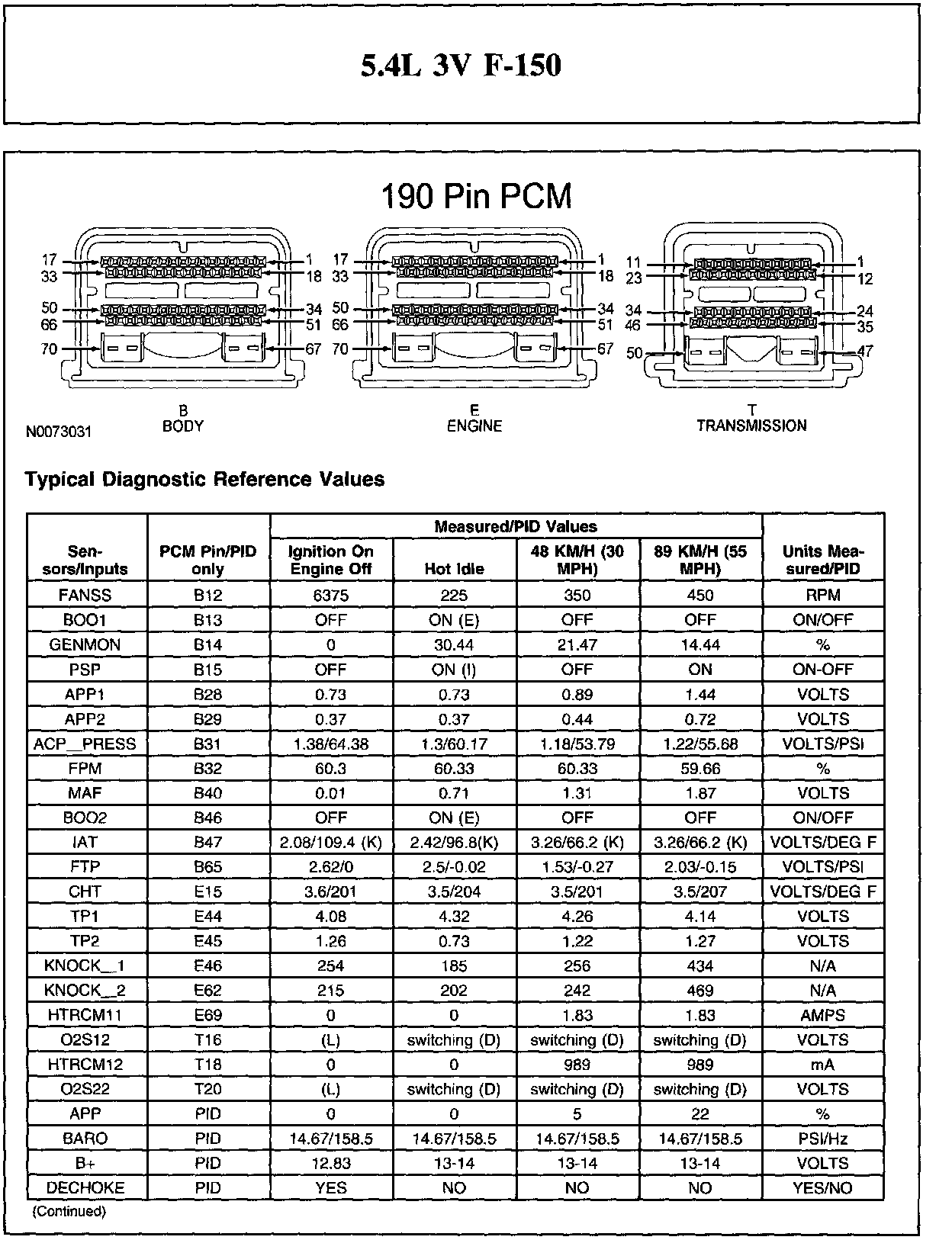

5.4L 3V F-150 (Part 1):

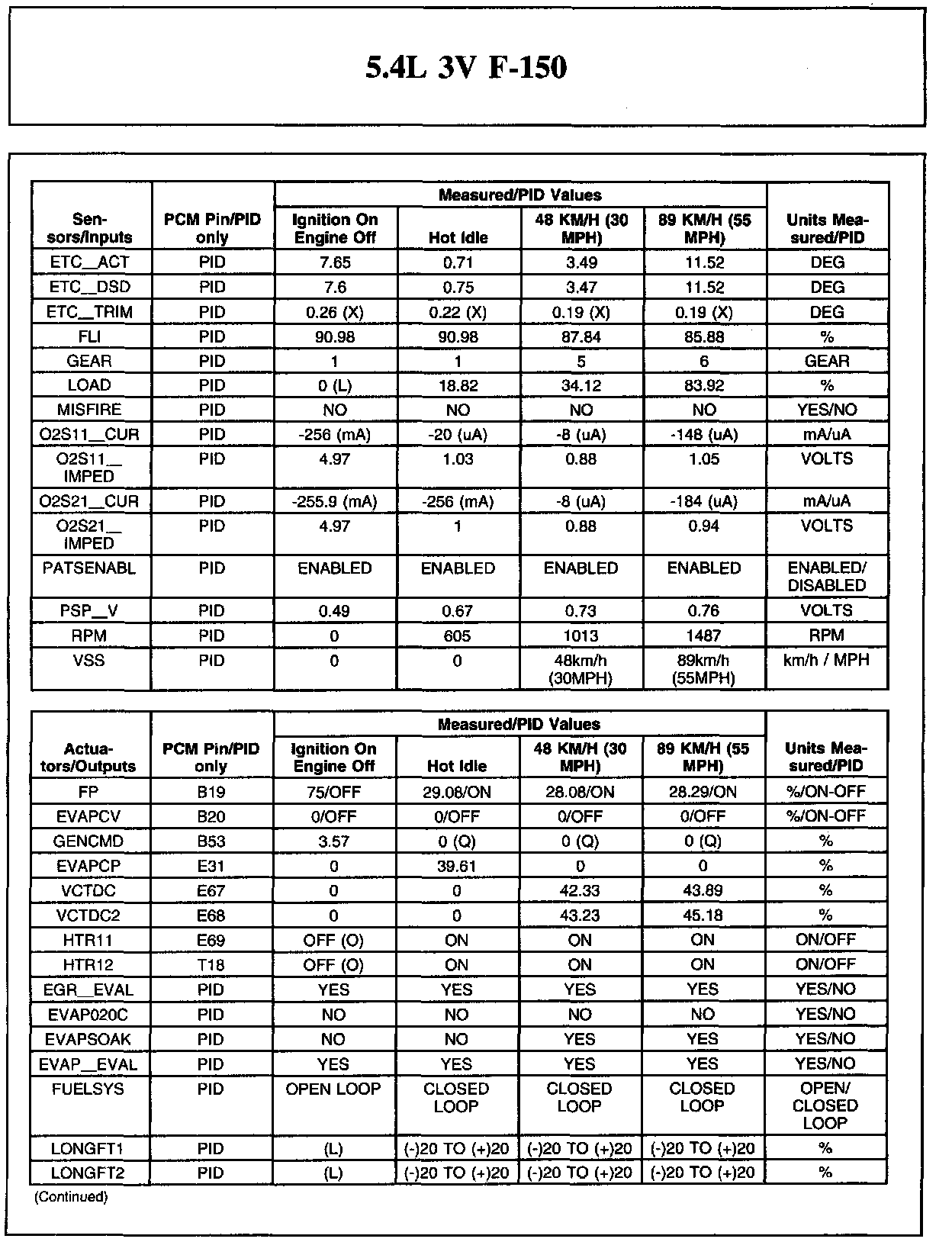

5.4L 3V F-150 (Part 2):





5.4L 3V F-150 (Part 3):
