Starter Motor

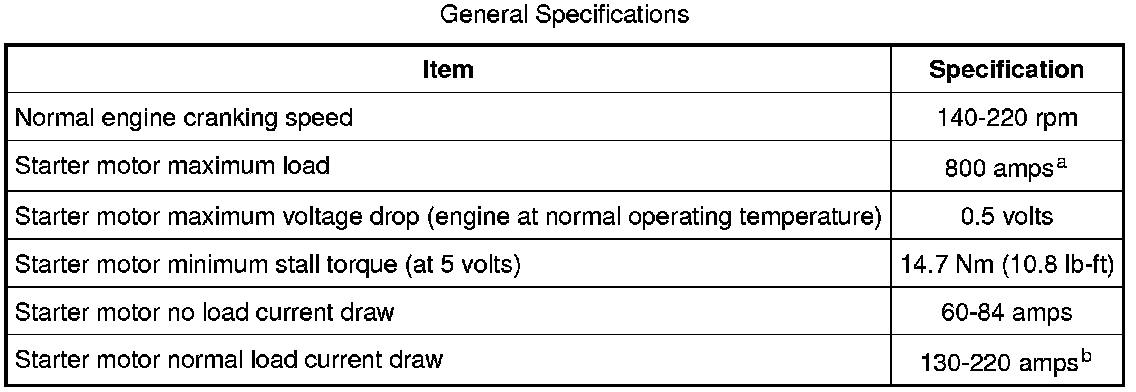

General Specifications:

a Initial "in-rush" current draw.

b Continuously running current draw.
