Cylinder Head Assembly

General Specifications (Part 1):

General Specifications (Part 2):

General Specifications (Part 3):

a The time required for the plunger to leak down 1.6 mm (0.062 in) of travel with 222 N force and leak-down fluid in the lash adjuster.

b The pin bore and crank bearing bore must be parallel and in the same vertical plane within the specified total difference when measured at the ends of a 203 mm bar, 105.5 mm on each side of
rod centerline.

Cylinder Head

NOTE: The cylinder head bolts must be discarded and new bolts installed. They are a tighten-to-yield design and cannot be reused.





NOTE: RH shown, LH similar.

Tighten the 20 bolts in 3 stages, in the sequence shown.
- Stage 1: Tighten to 40 Nm (30 lb-ft)
- Stage 2: Tighten an additional 90 degrees
- Stage 3: Tighten an additional 90 degrees

Intake Manifold

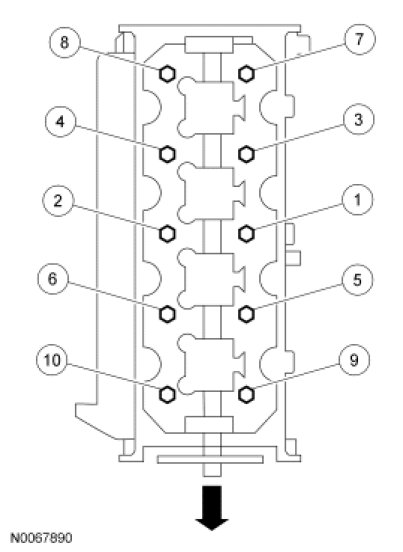

Install the 10 intake manifold bolts and tighten in 2 stages in the sequence shown.
- Stage 1: Tighten to 2 Nm (18 lb-in)
- Stage 2: Tighten to 10 Nm (89 lb-in)

Camshaft Bearing Cap

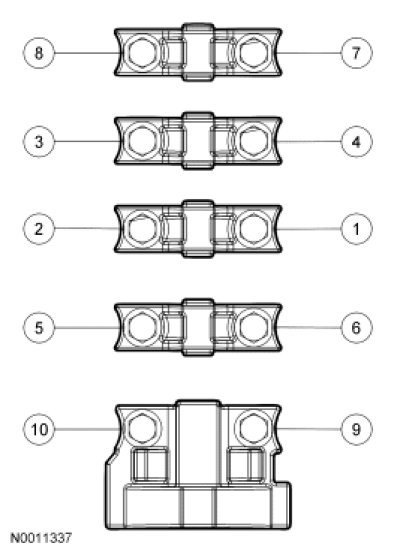

Tighten the bolts in the sequence shown.
- Tighten to 10 Nm (89 lb-in)

Camshaft Phaser And Sprocket

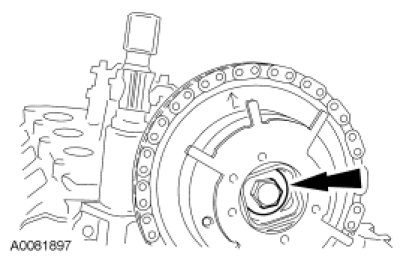

Tighten the camshaft phaser and sprocket bolt in 2 stages:
- Stage 1: Tighten to 40 Nm (30 lb-ft)
- Stage 2: Tighten an additional 90 degrees

Exhaust Manifold

RH

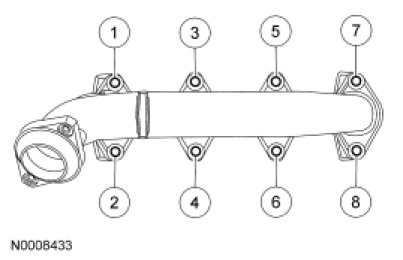

Exhaust Manifold - RH:

Install the 8 new exhaust manifold nuts in the sequence shown.
- Tighten to 25 Nm (18 lb-ft)

LH

Exhaust Manifold - LH:

Install the 8 new exhaust manifold nuts in the sequence shown.
- Tighten to 25 Nm (18 lb-ft)
