Intake Manifold

Intake Manifold

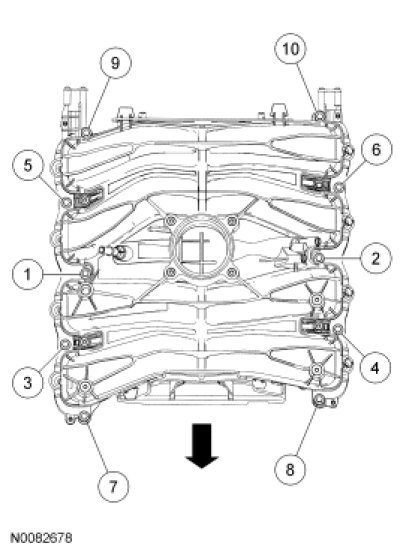

Install the 10 intake manifold bolts and tighten in 2 stages in the sequence shown.
- Stage 1: Tighten to 2 Nm (18 lb-in)
- Stage 2: Tighten to 10 Nm (89 lb-in)

Throttle Body
Tighten the 4 Throttle Body bolts in 2 stages.
- Stage 1: Tighten to 9 Nm (80 lb-in)
- Stage 2: Tighten an additional 90 degrees (one-fourth turn)
