Oil Pan, Engine

Oil Pan

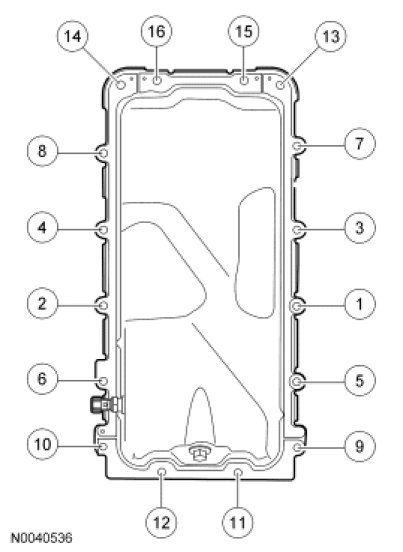

Tighten the bolts in the sequence shown in 3 stages.
- Stage 1: Tighten to 2 Nm (18 lb-in)
- Stage 2: Tighten to 20 Nm (177 lb-in)
- Stage 3: Tighten an additional 60 degrees
