Pinpoint Test C: Adjustable Brake Pedal is Inoperative/Does Not Operate Correctly - Using the Memory SET Switch Buttons or the Remote Keyless Entry (RKE) Transmitter

Refer to Wiring Diagram Set 127, Adjustable Pedals for schematic and connector information. Diagrams By Number

Normal Operation

When the desired memory position is selected using the memory SET switch buttons or the remote transmitter, the Driver Seat Module (DSM) will send voltage to the adjustable pedal motor along circuit CPP01 (WH/OG) to move the pedals forward and along circuit CPP02 (BN) to move the pedals rearward. When voltage is sent to the motor along circuit CPP01 (WH/OG) it returns to the DSM along CPP02 (BN). Likewise, when the voltage is sent to the motor along circuit CPP02 (BN) it returns to the DSM along CPP01 (WH/OG).

The DSM uses a Hall-effect switch attached to the pedal motor to identify the current pedal position. The DSM sends a reference voltage along circuit LPP06 (YE/BU), through the Hall-effect switch and back to the DSM along the signal return circuit, RPP06 (GN)/VPP08 (WH).

This pinpoint test is intended to diagnose the following:
- Wiring, terminals or connectors
- Adjustable pedal motor
- DSM



PINPOINT TEST C: ADJUSTABLE BRAKE PEDAL IS INOPERATIVE/DOES NOT OPERATE CORRECTLY - USING THE MEMORY SET SWITCH BUTTONS OR THE RKE TRANSMITTER

NOTICE: Use the Flex Probe Kit for all test connections to prevent damage to the wiring terminals. Do not use standard multi-meter probes.

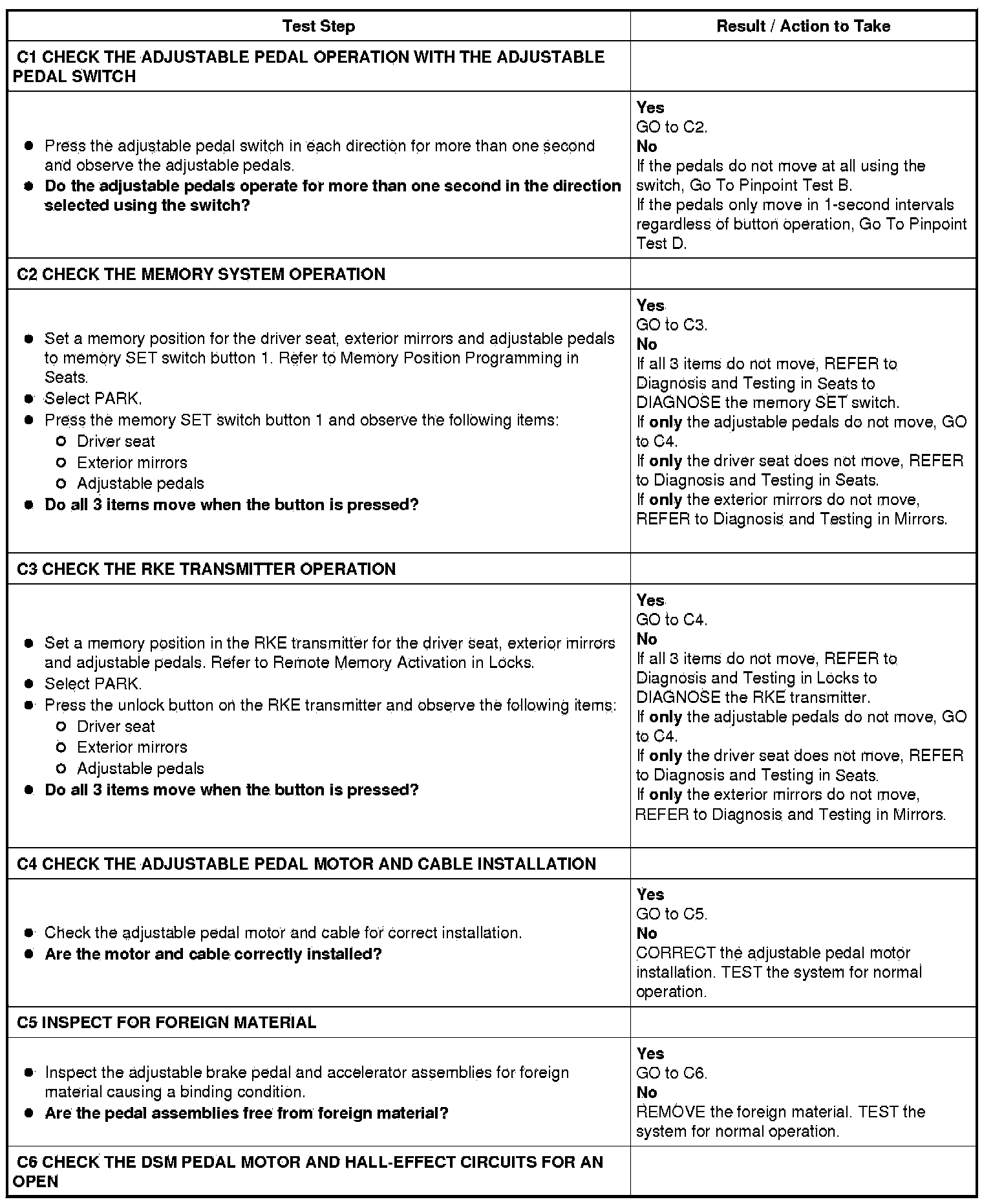

C1-C6:

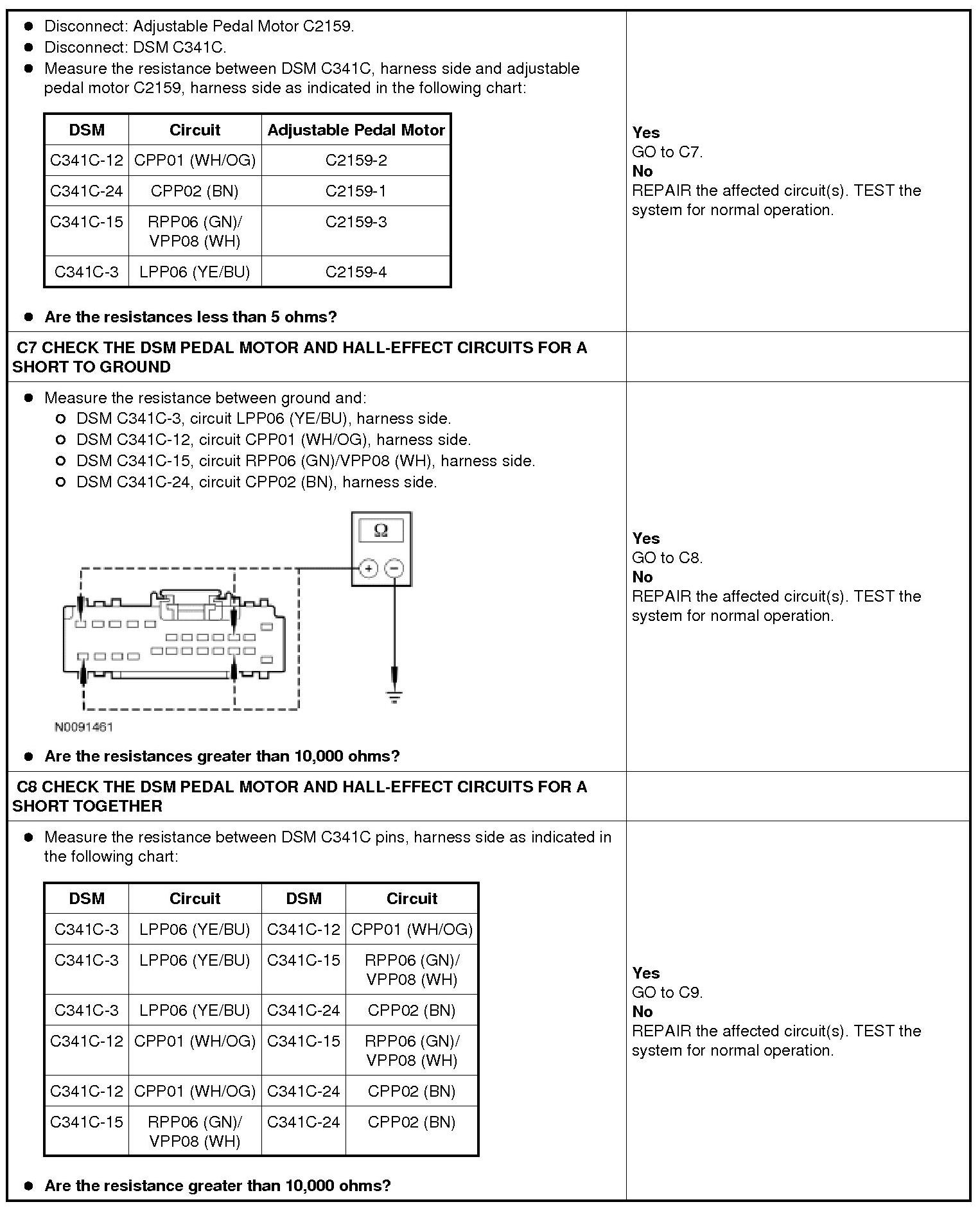

C6-C8:

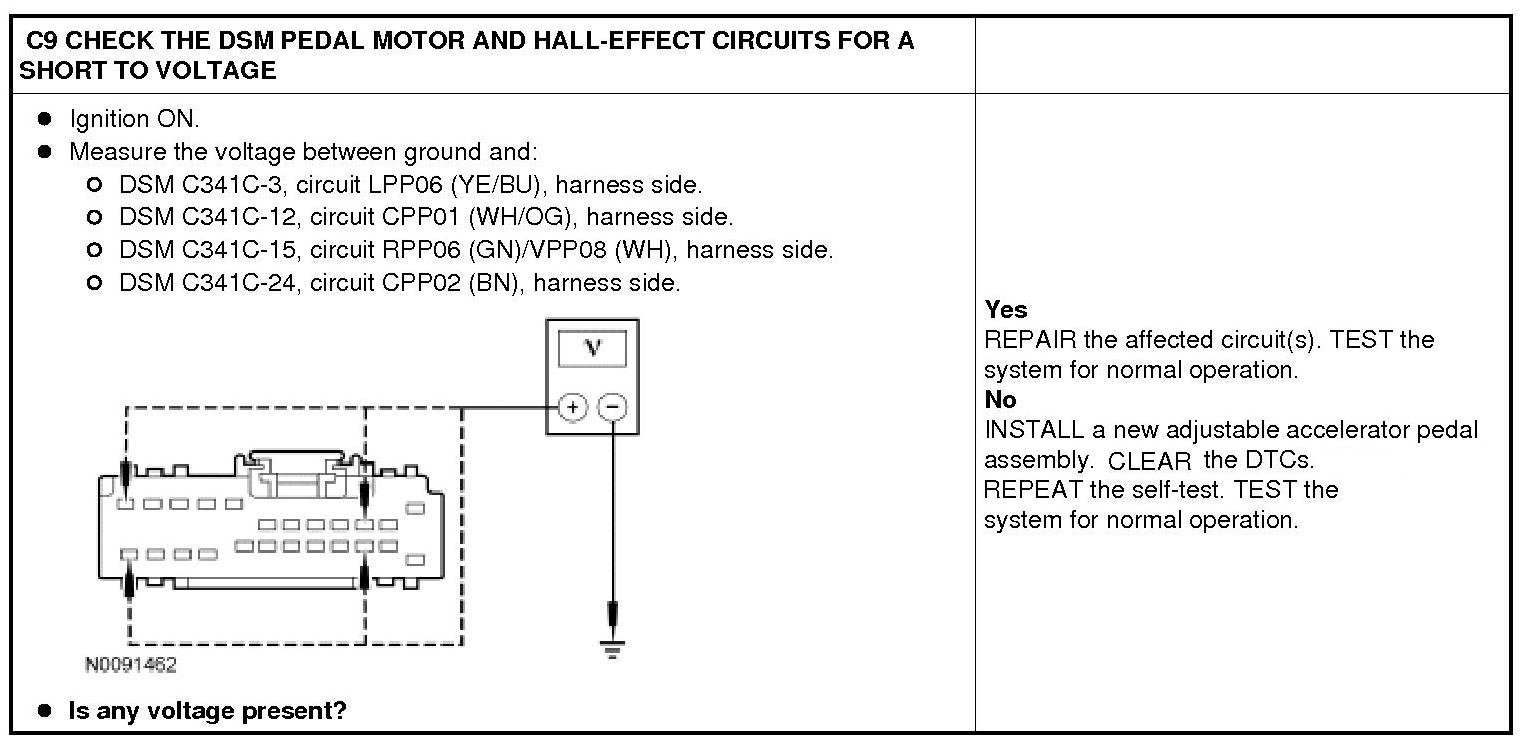

C9:
