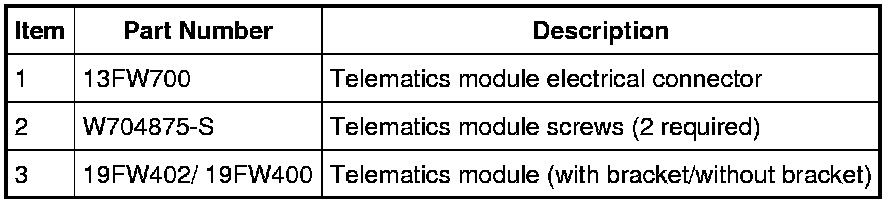

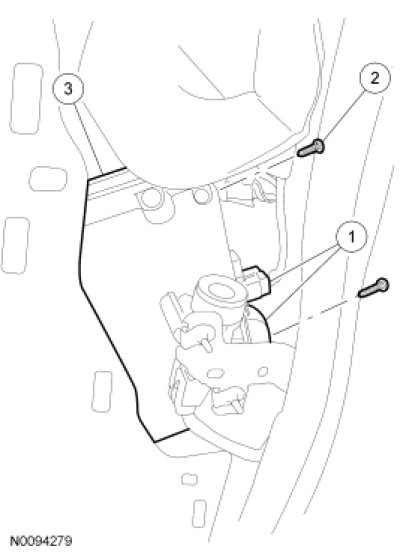

Telematics Module




Telematics Module









Removal

1. Turn the ignition to OFF.

2. Lower the glove compartment completely.

3. Disconnect the telematics module electrical connector.

4. Remove the RH instrument panel side trim panel.

5. Remove the 2 screws and the telematics module.
- Remove the telematics module through the glove compartment opening.

Installation

1. Position the telematics module and install the 2 screws.

2. Install the RH instrument panel side trim panel.

3. Connect the telematics module electrical connector.

4. Close the glove compartment.

5. Initialize the telematics module.

1. Wait 5 minutes after the modem-antenna is installed.

2. Turn the ignition to RUN.

3. Wait 10 seconds.

4. Start the vehicle and run the engine for 30 seconds.

5. Turn the ignition to OFF.
