Drive Belt

Front End Accessory Drive (FEAD) - Exploded View

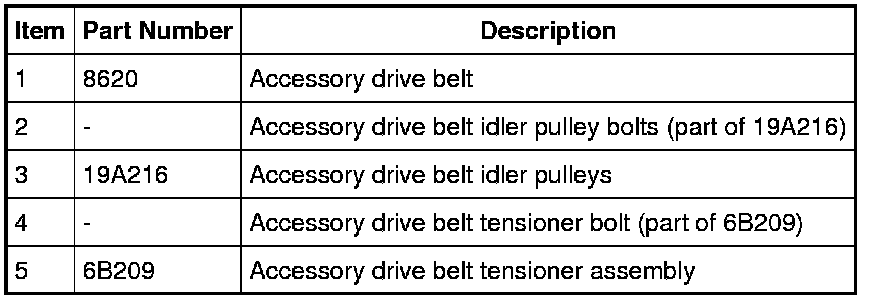

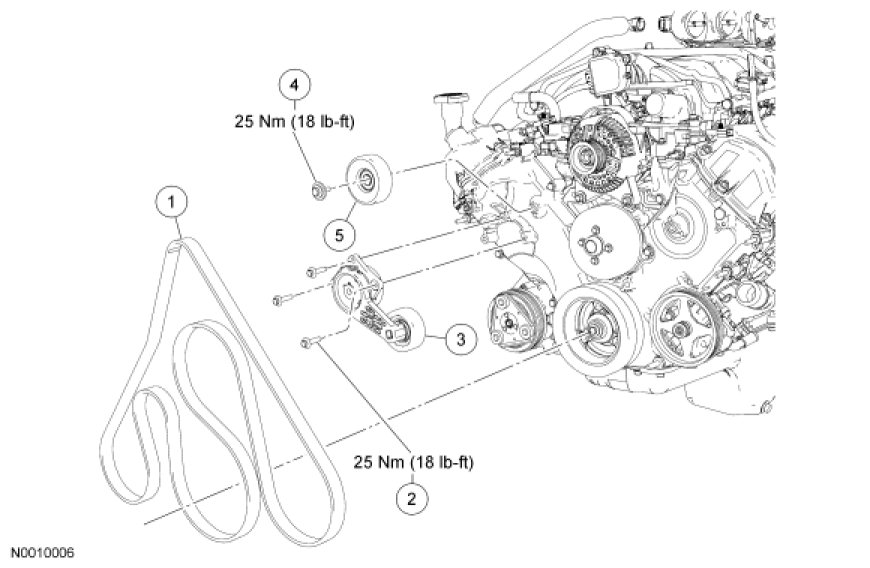

Front End Accessory Drive (FEAD) Exploded View - 5.4L (3V), 6.8L (3V)

NOTE: 6.8L (3V) shown, 5.4L (3V) similar.

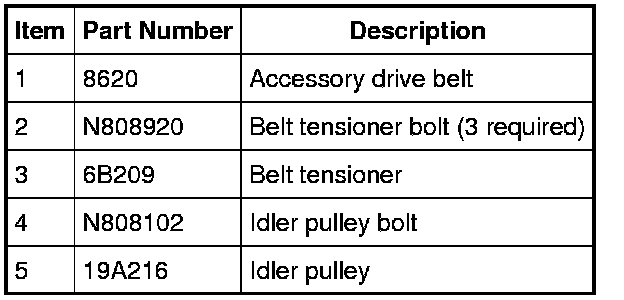

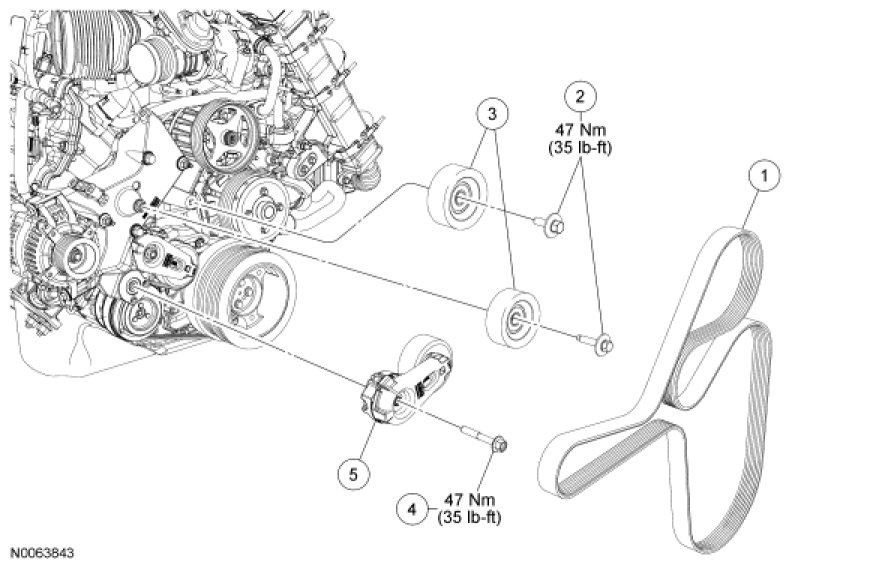

Front End Accessory Drive (FEAD) Exploded View - 6.4L Diesel With Single Generator

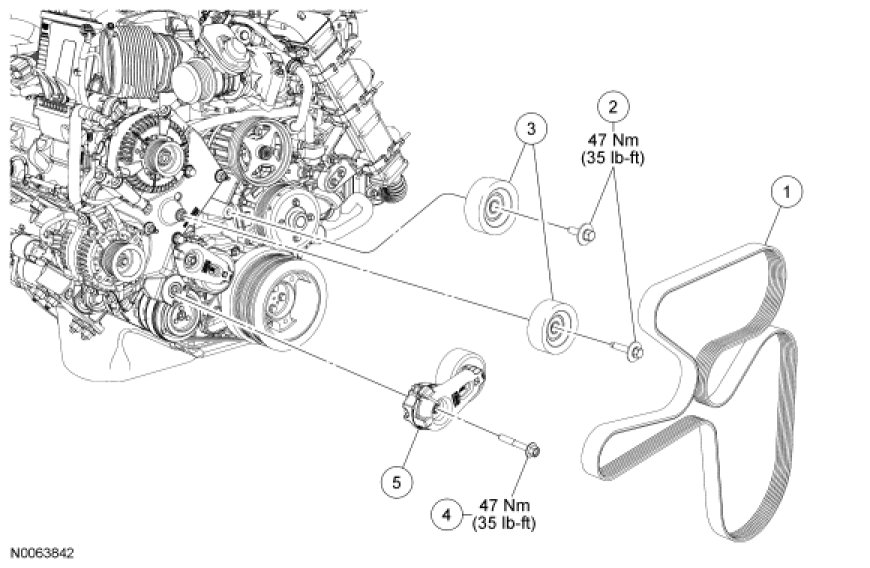

Front End Accessory Drive (FEAD) Exploded View - 6.4L Diesel With Dual Generators

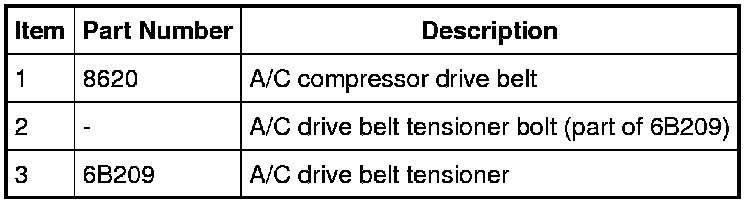

A/C Compressor Drive Components - 6.4L Diesel

1. For additional information, refer to the procedures.
