Ride Height Measurement

Ride Height Measurement


Front Ride Height Measurement

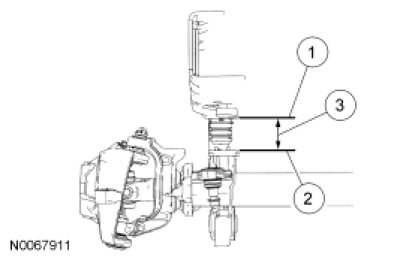

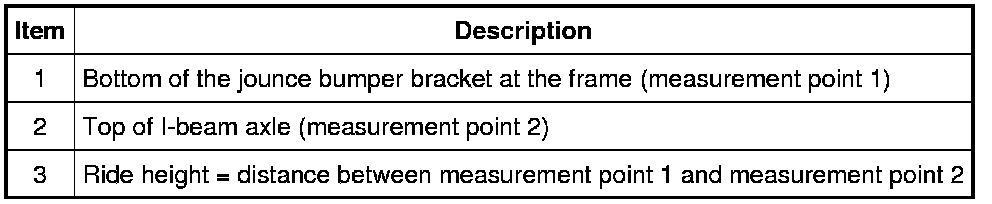

F-250 and F-350, Rear Wheel Drive (RWD)

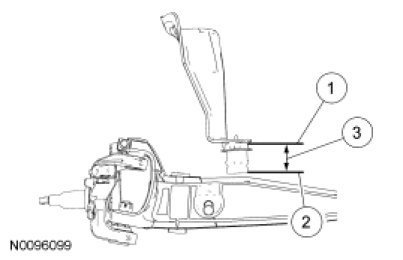

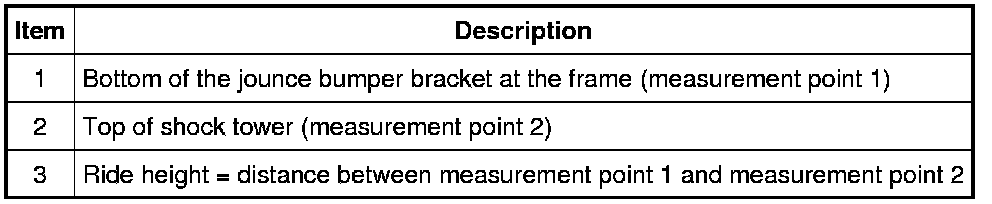

F-250 and F-350, Four-Wheel Drive (4WD), F-450 and F-550










1. NOTE: Make sure that the vehicle is positioned on a flat, level surface and the tires are inflated to the correct pressure.

To obtain vehicle ride height, measure the distance between points 1 and 2. For additional information, refer to Specifications.


Rear Ride Height Measurement

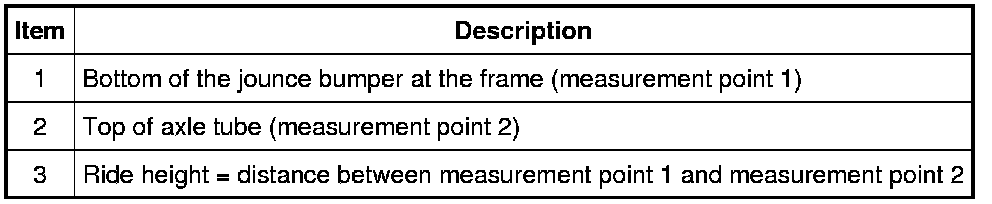

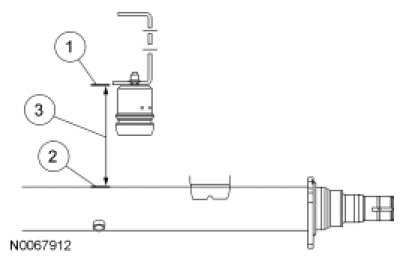

F-250 and F-350, Rear Wheel Drive (RWD) and F-450 and F-550 without Low Deflection Package

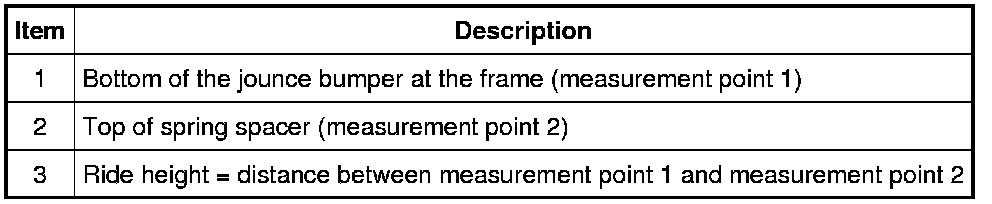

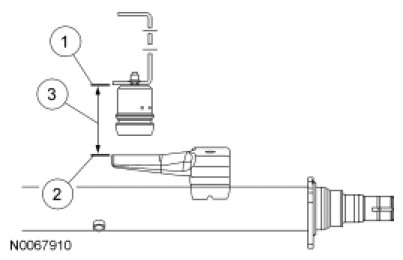

F-250 and F-350, Four-Wheel Drive (4WD) and F-450 and F-550 with Low Deflection Package










1. NOTE: Make sure that the vehicle is positioned on a flat, level surface and the tires are inflated to the correct pressure.

To obtain vehicle ride height, measure the distance between points 1 and 2. For additional information, refer to Specifications.
