Glow Plug

Glow Plug

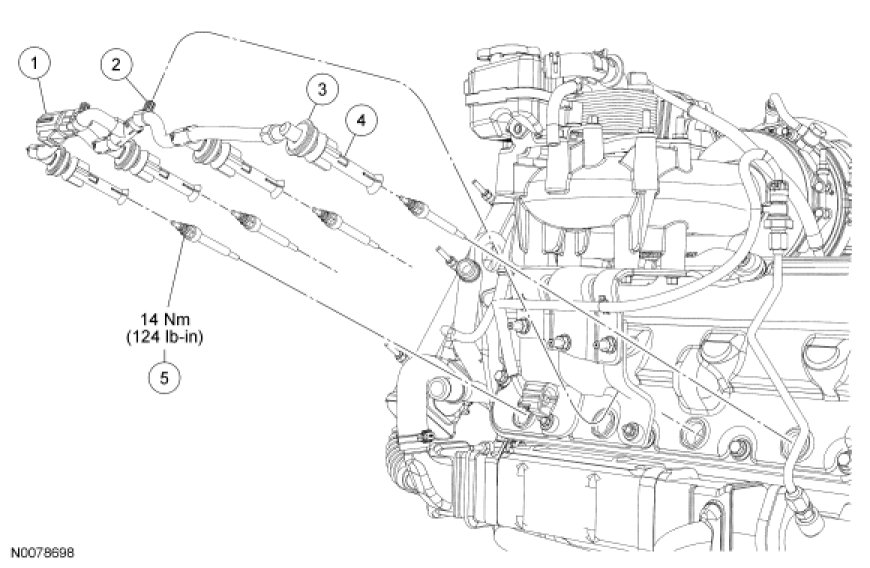

RH Glow Plugs

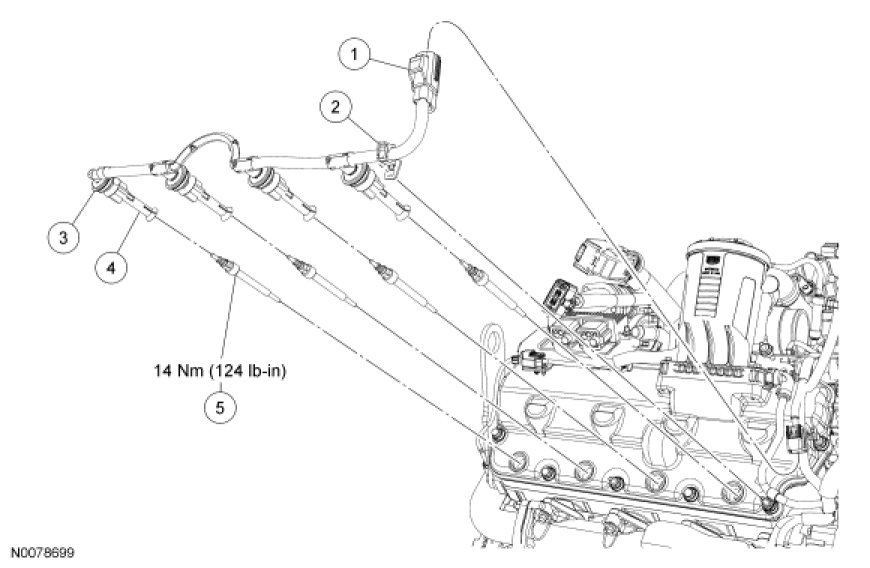

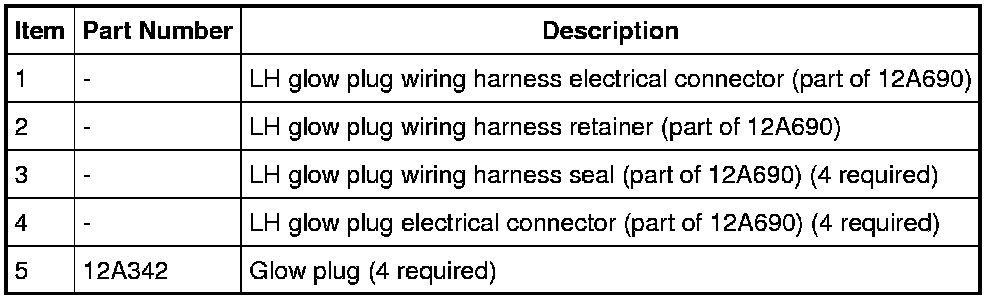

LH Glow Plugs










LH Frame Rail Electrical Connectors









Removal

Both sides

1. NOTICE: Make sure the ignition switch is in the OFF position prior to working on the glow plug system or the vehicle may be damaged.

Turn the ignition switch to the OFF position.

RH side

2. If removing glow plug No. 1, 3 or 5, remove the Air Cleaner (ACL).

3. If removing glow plug No. 7, remove the RH fender splash shield.

LH side

4. Remove the LH fender splash shield.

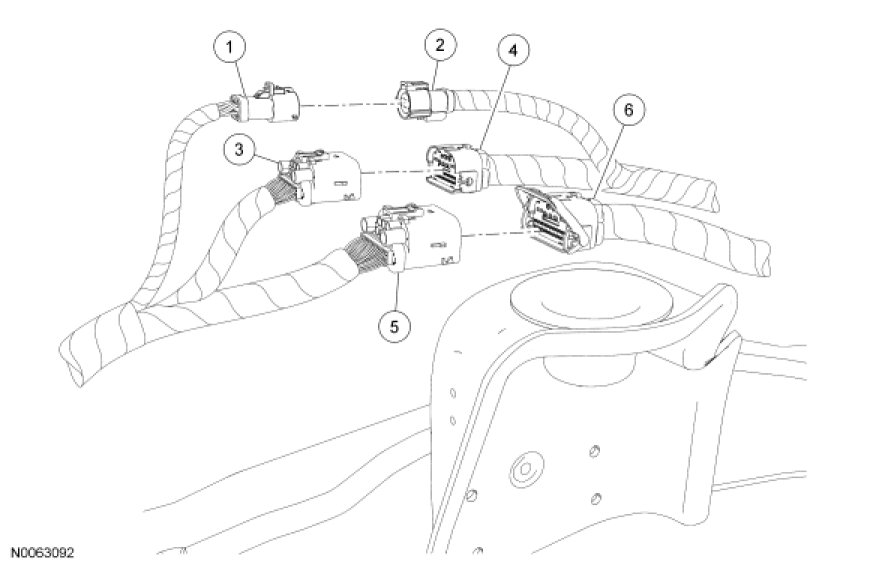

5. Disconnect the 3 wiring harness in-line electrical connectors at the LH frame rail, detach the electrical connectors from the bracket and position the wiring harnesses aside.

Both sides

6. If necessary, detach the glow plug wiring harness retainer.

7. NOTICE: Do not disconnect the glow plug electrical connector before dislodging the seal from the valve cover or the wiring harness may be damaged.

NOTE: Use a tool such as a body bone or trim fork to dislodge the seal. Do not use a screwdriver.

Using an appropriate tool, dislodge the glow plug wiring harness seal from the valve cover.

8. Disconnect the glow plug electrical connector by pulling on the glow plug wiring harness tee above the seal.

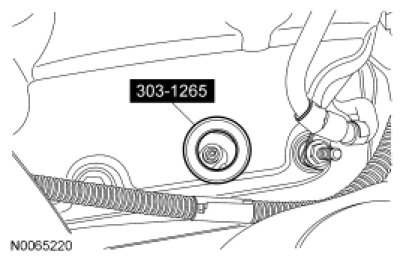

9. Install the Glow Plug Sleeve.





10. Remove the glow plug.

Installation

Both sides

1. Using the Glow Plug Sleeve, install the glow plug.
- Tighten to 14 Nm (124 lb-in).





2. Connect the glow plug electrical connector and press the seal on the valve cover.

3. If necessary, attach the glow plug wiring harness retainer.

LH side

4. Connect the 3 wiring harness in-line electrical connectors at the LH frame rail and attach the electrical connectors to the bracket.

5. Install the LH fender splash shield.

RH side

6. If removed, install the RH fender splash shield.

7. If removed, install the ACL.
