Home >> Ford >> 2009 >> F 550 4WD Super Duty V10-6.8L >> Repair and Diagnosis >> Body and Frame >> Relays and Modules - Body and Frame >> Sunroof / Moonroof Module >> Diagrams

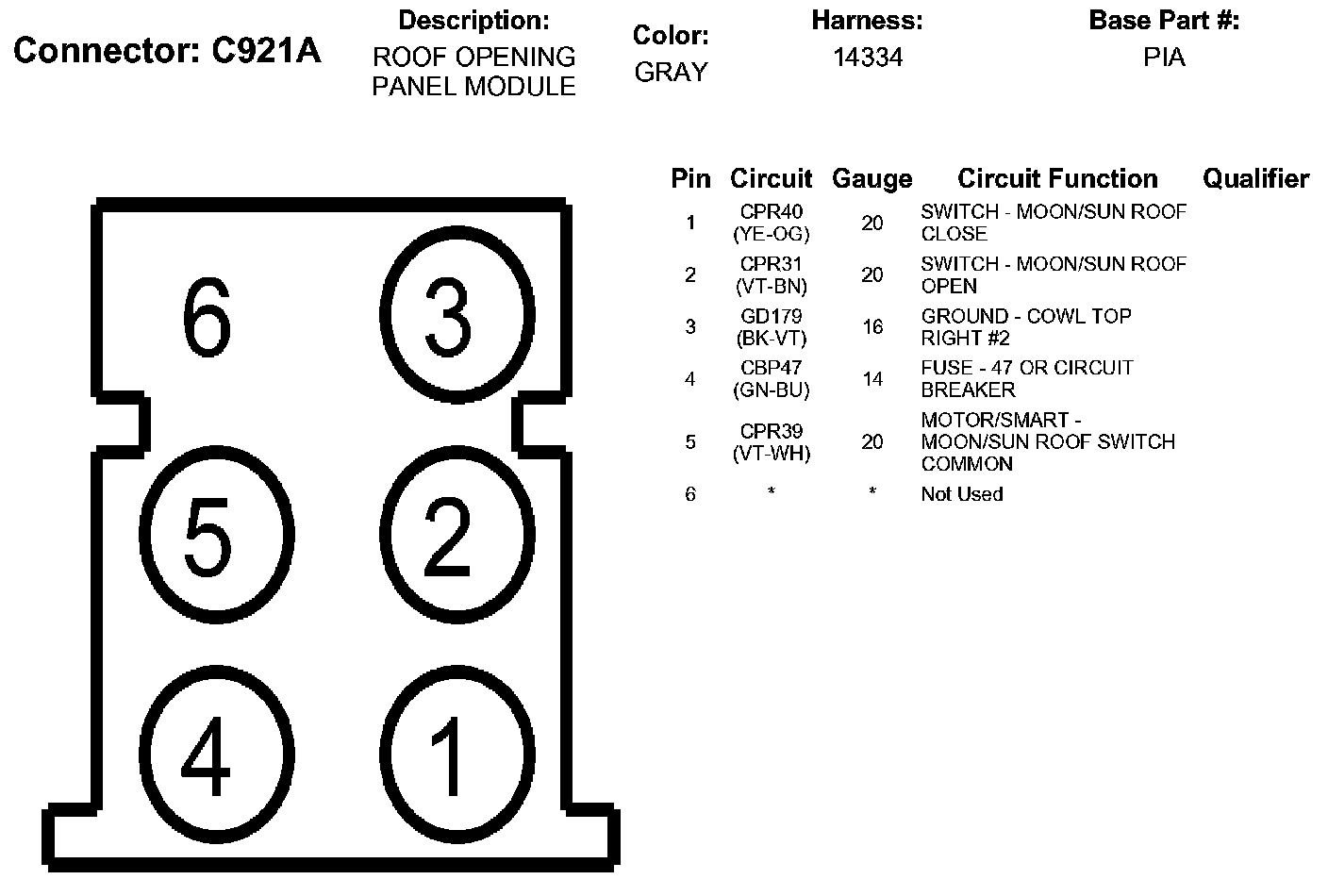

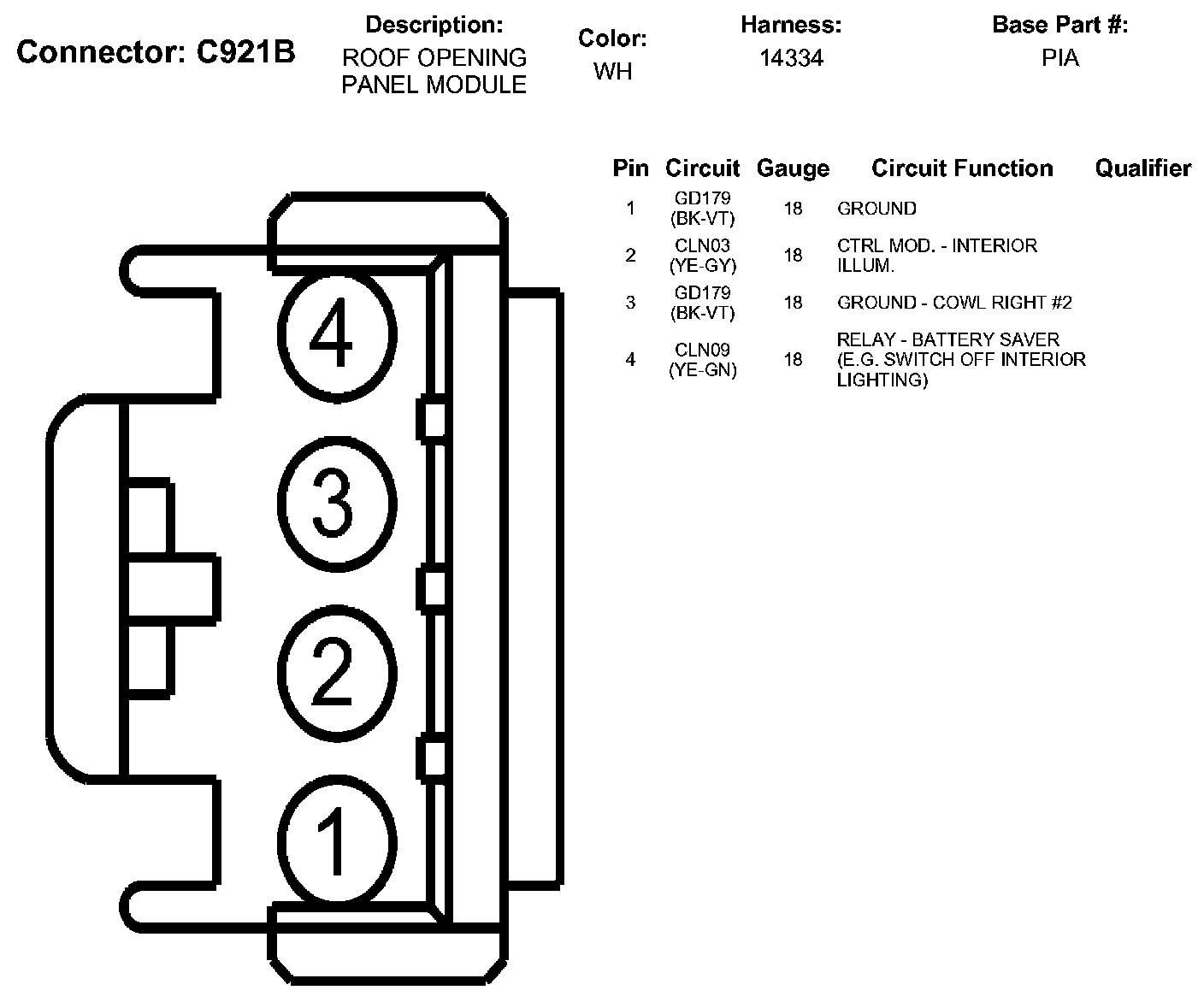

Sunroof / Moonroof Module: Diagrams
