Seat Temperature Control Module: Service and Repair

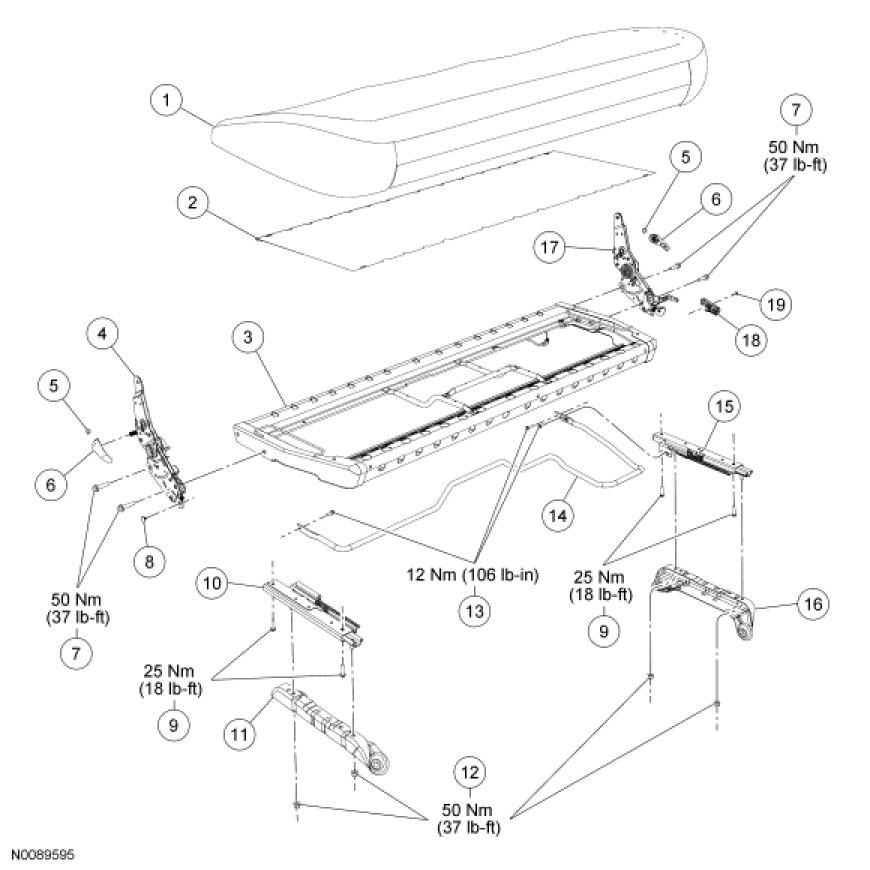

Seat - Exploded View, Front

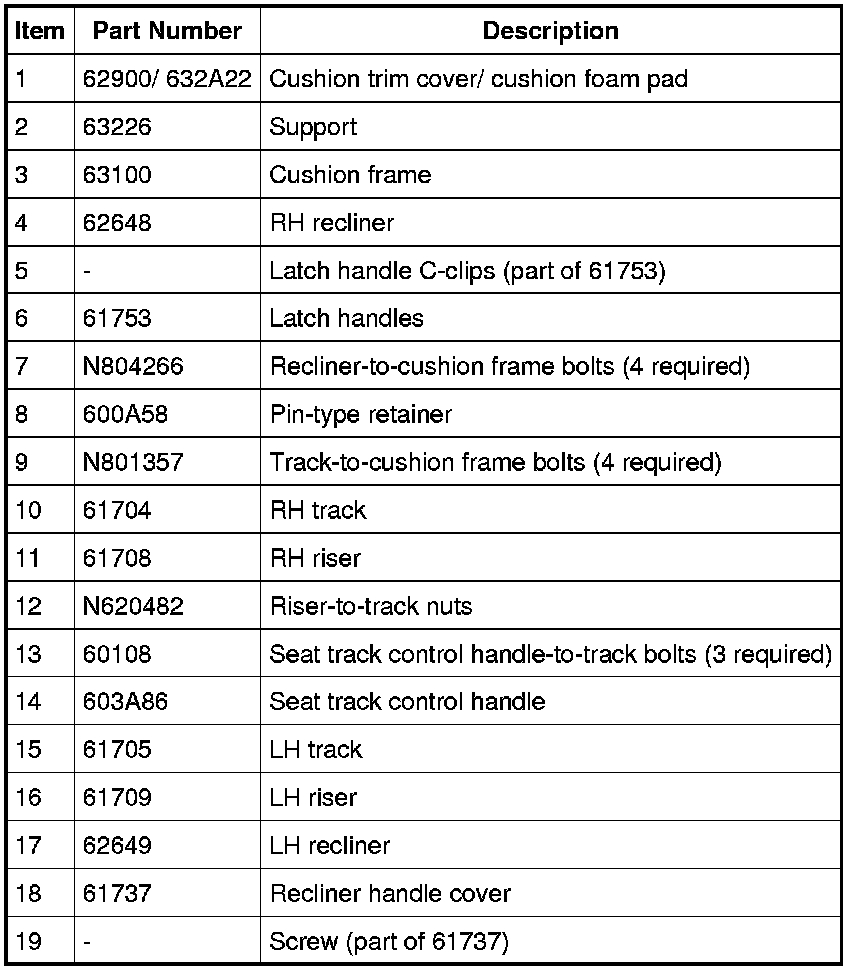

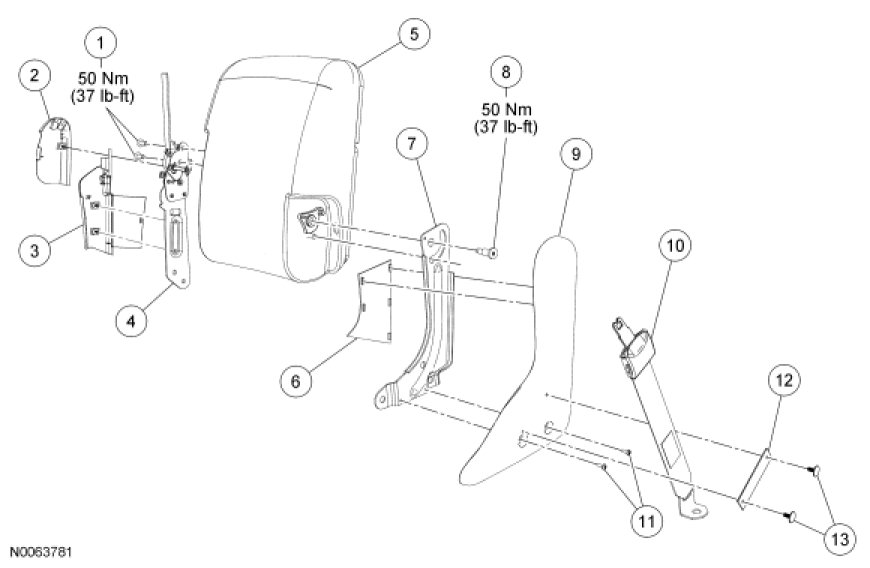

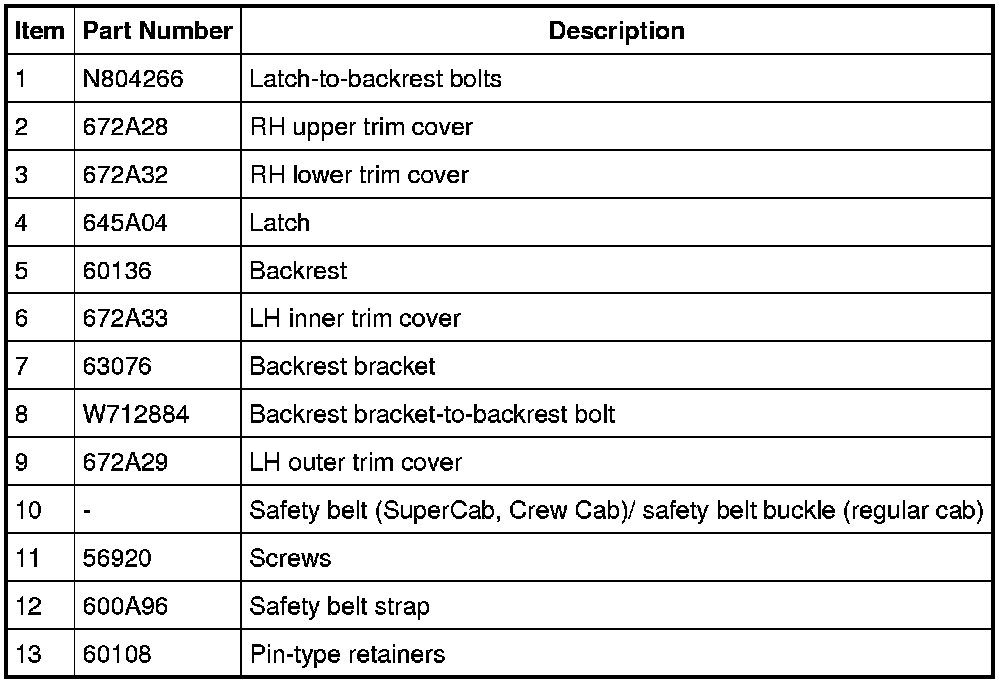

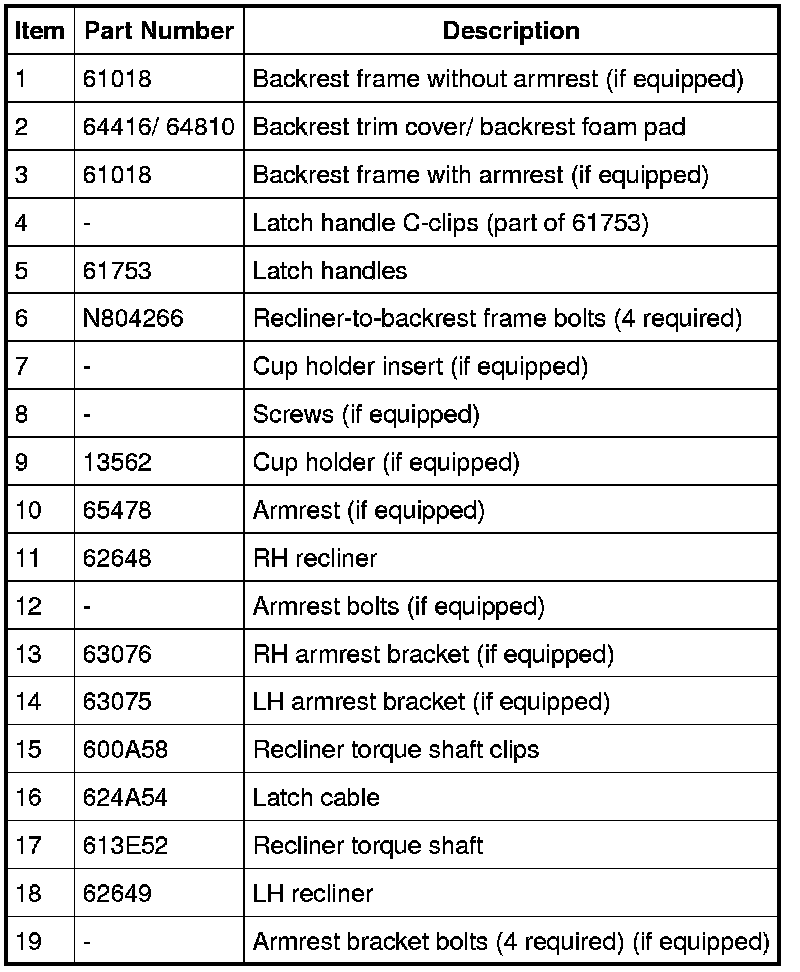

20 Percent Seat Backrest

NOTE: SuperCab and Crew Cab have safety belt and tongue, regular cab has safety belt buckle.

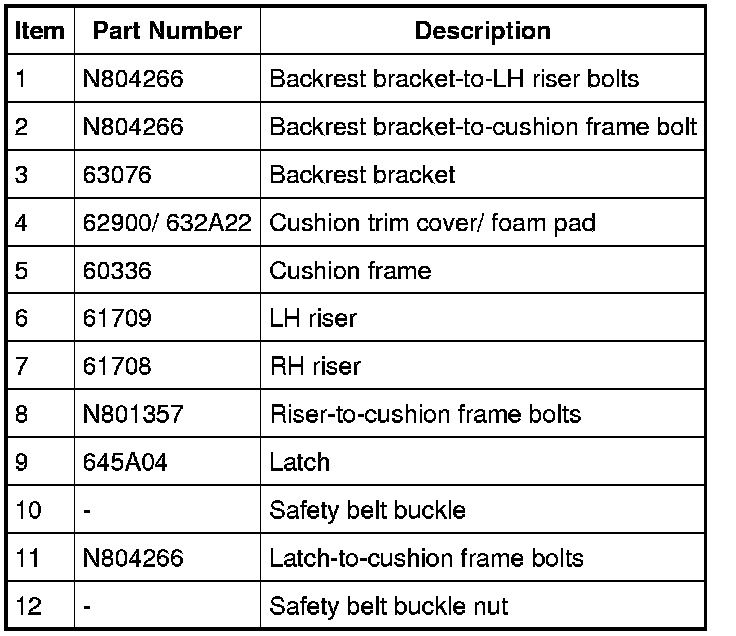

20 Percent Seat Cushion

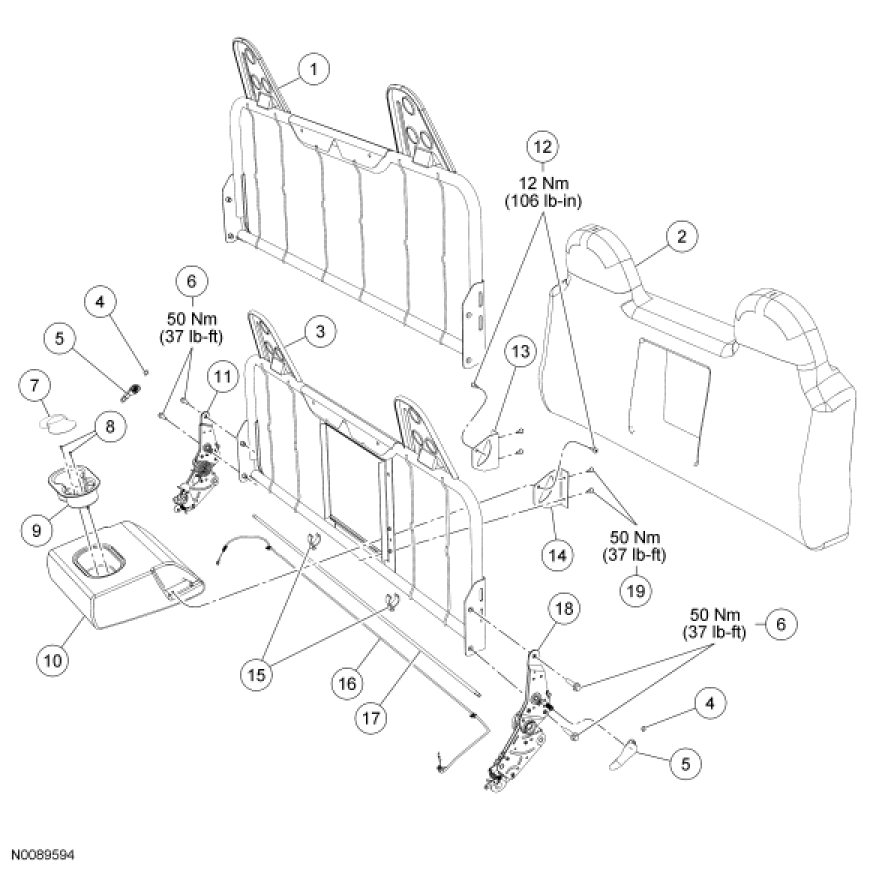

Bench Seat Backrest










Bench Seat Cushion

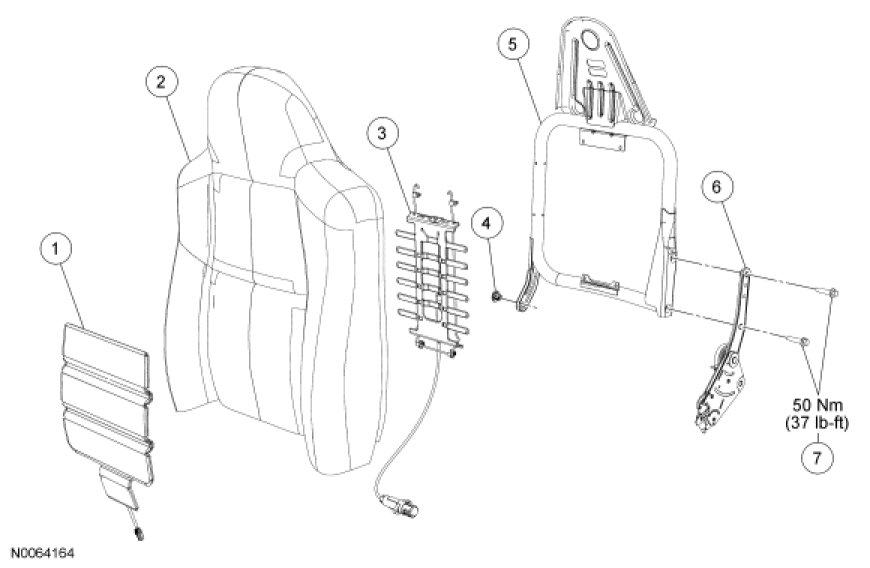

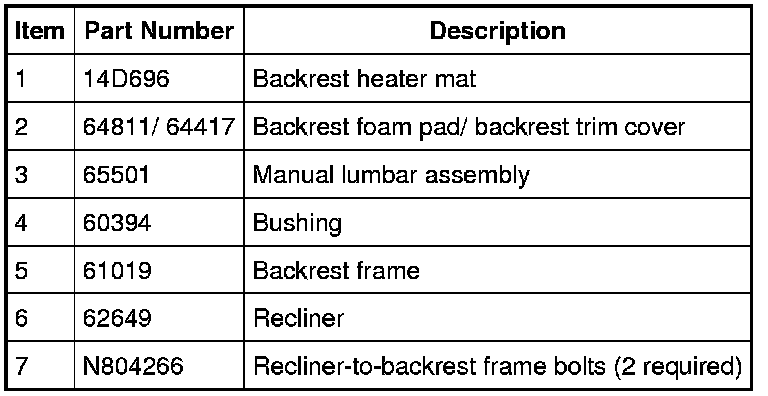

Bucket Seat Backrest

NOTE: LH shown, RH similar.

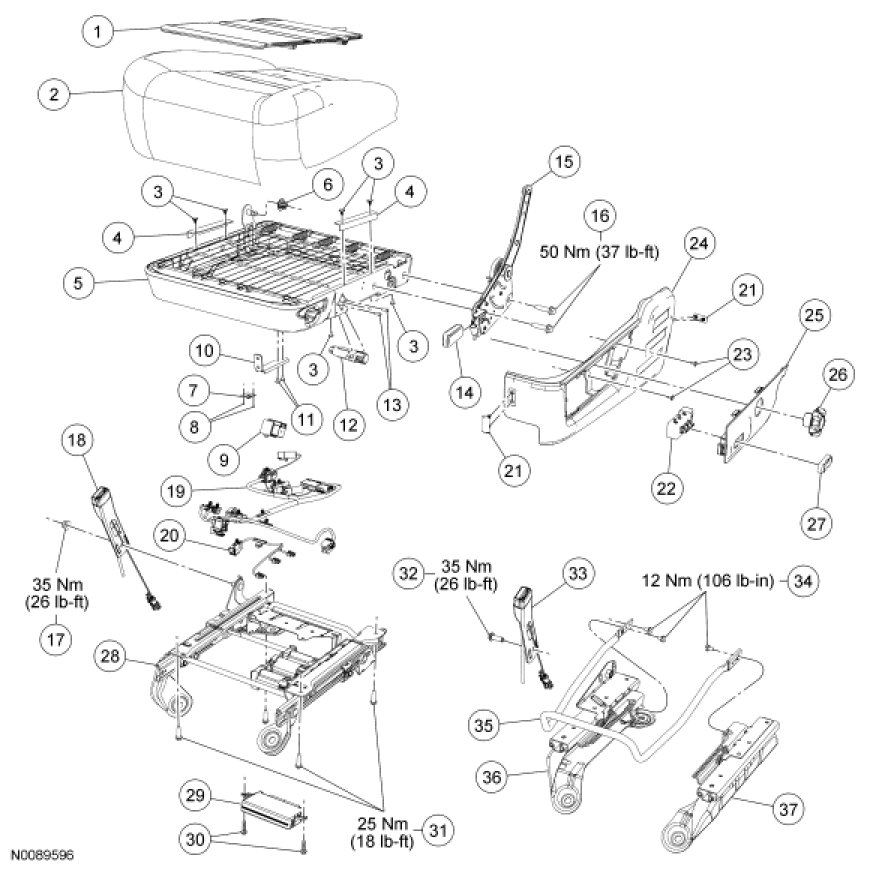

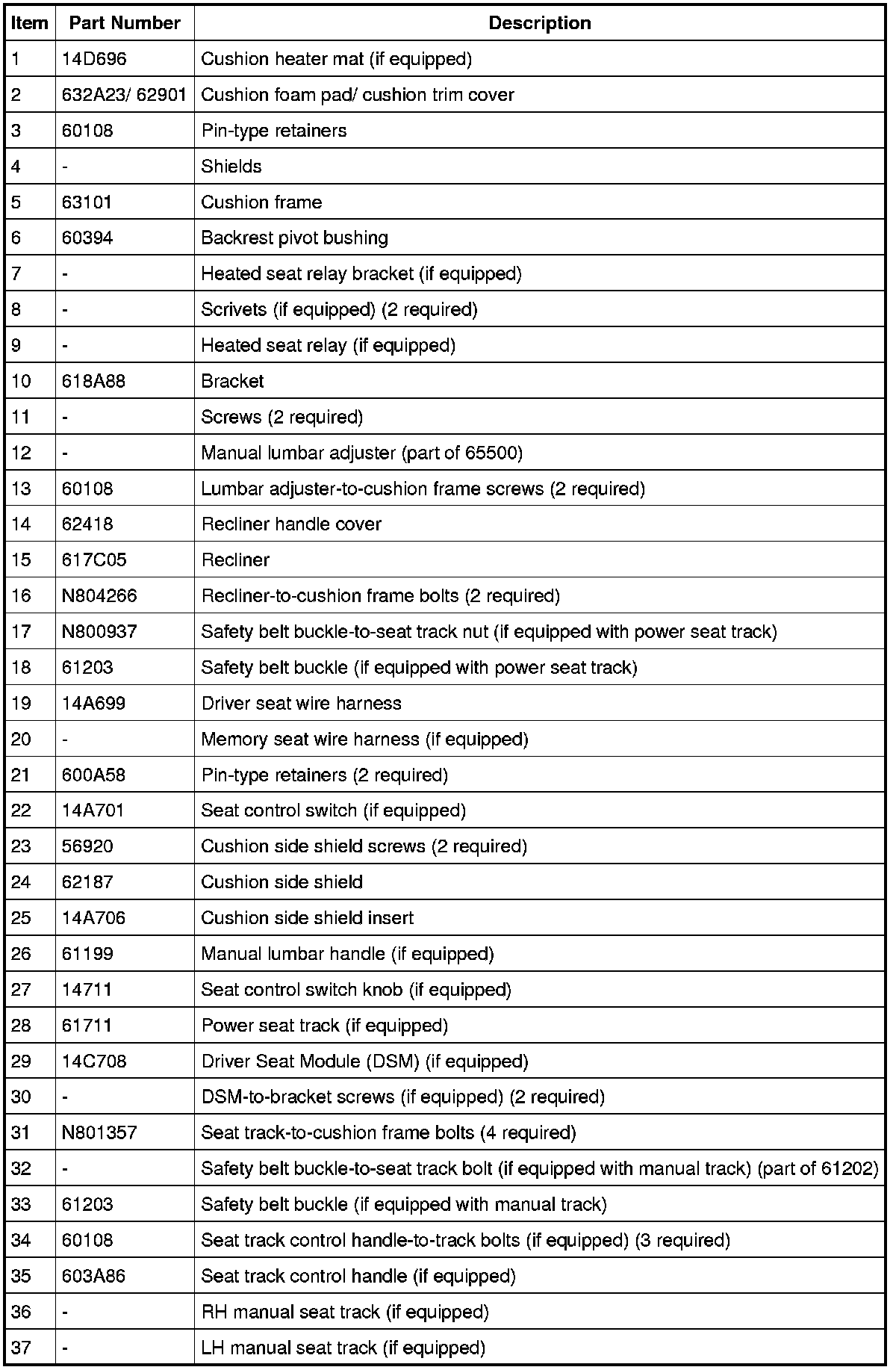

Bucket Seat Cushion

NOTE: LH shown, RH similar.










1. For additional information, refer to the procedures.
