Home
>>
Ford
>>
2009
>>
F 550 4WD Super Duty V10-6.8L
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Power and Ground Distribution
>>
Relay Box
>>

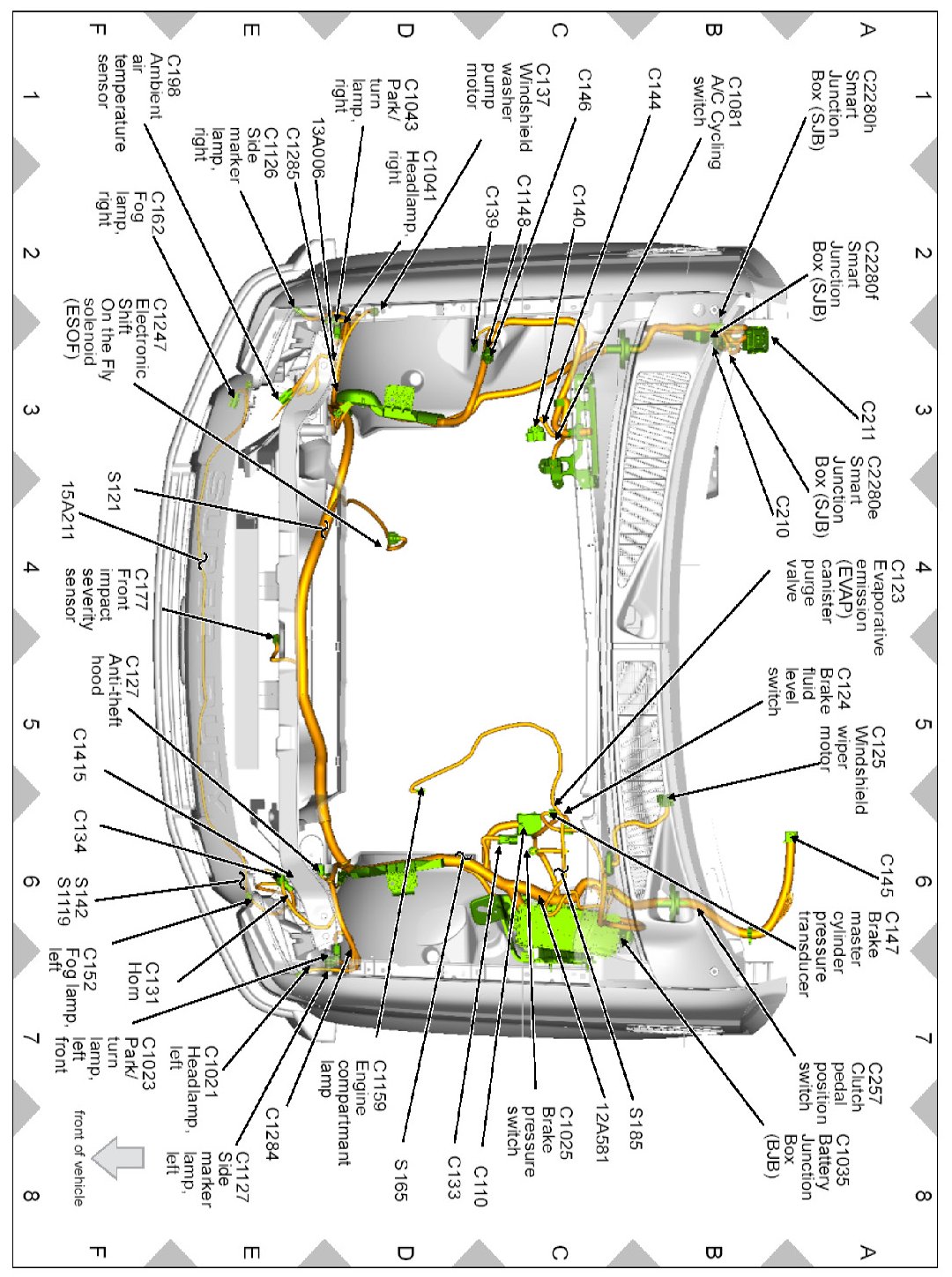

Locations
>>
Smart Junction Box (SJB)
Smart Junction Box (SJB)
