Diagnostic Trouble Code Tests and Associated Procedures
Four Wheel Drive (4WD) Systems - Electronic Shift

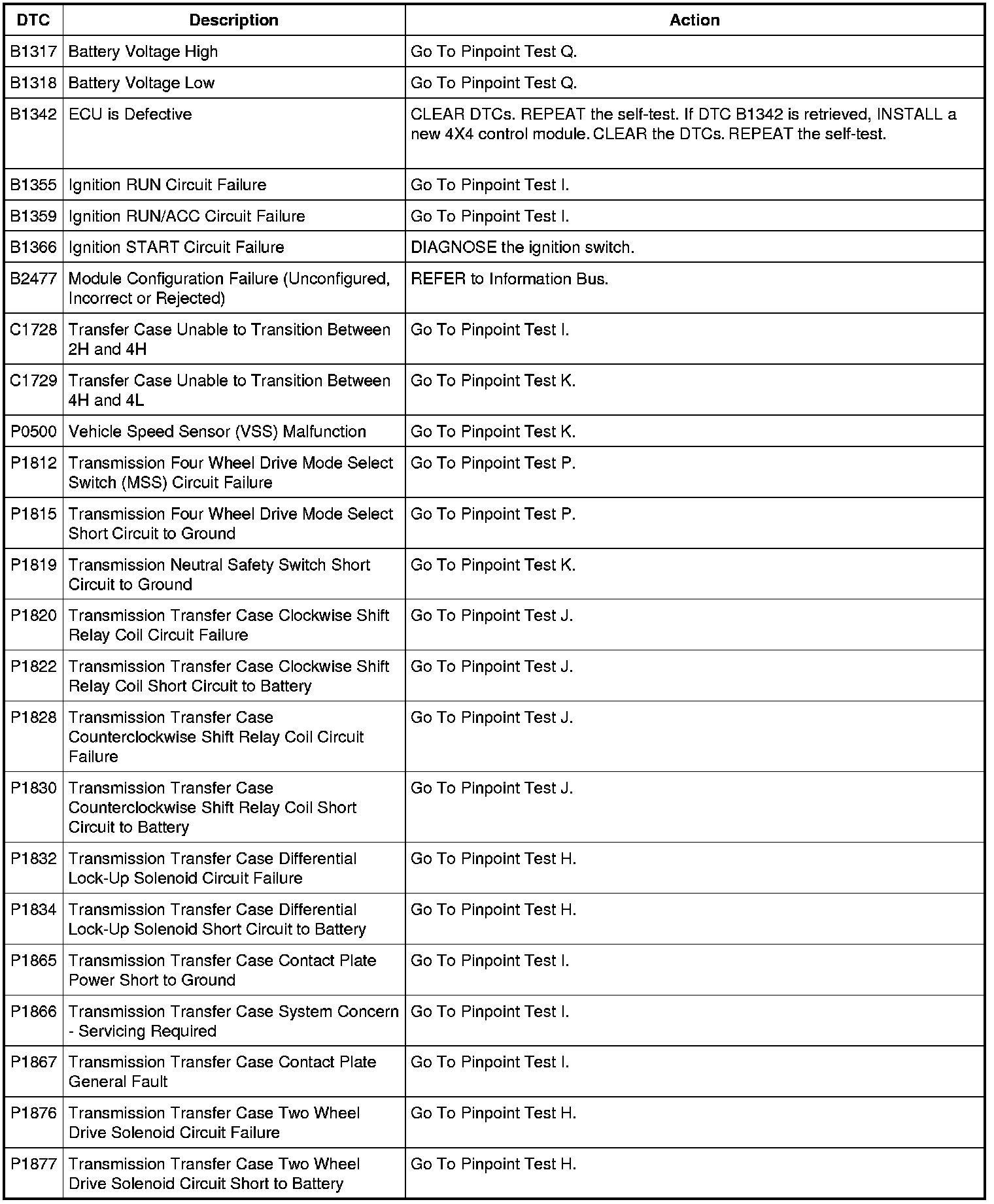

4X4 Control Module DTC Chart
NOTE: After repairing the cause of the 4WD system faults, the engine must be started in order to clear the 4X4 control module DTCs.
4X4 Control Module DTC Chart
