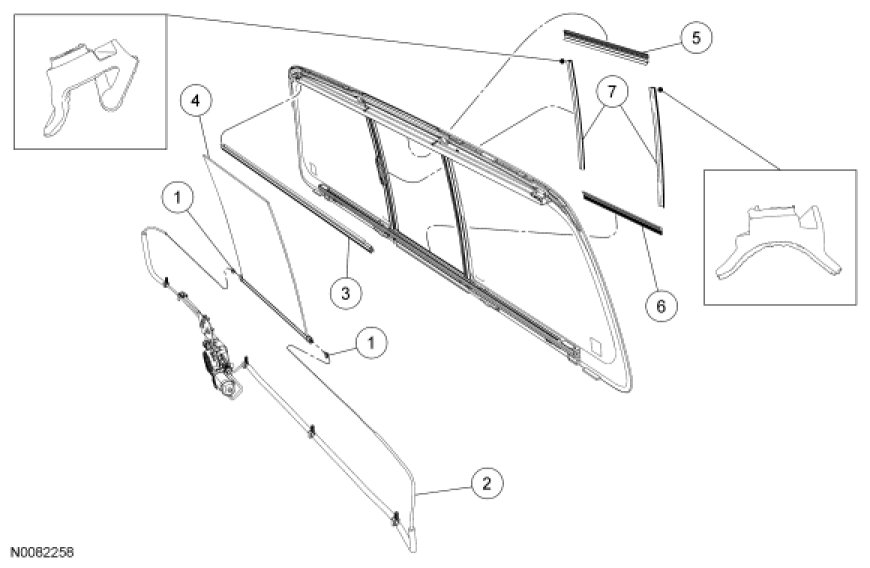

Glass, Frames and Mechanisms - Exploded View, Rear

Glass, Frames and Mechanisms - Exploded View, Rear

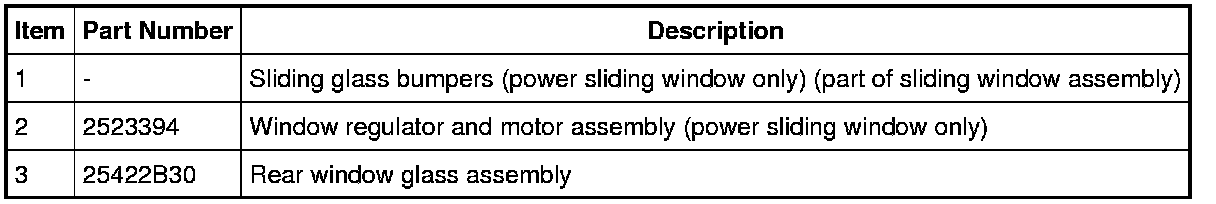

Rear Window Glass

NOTE: Power sliding window shown, all others similar.

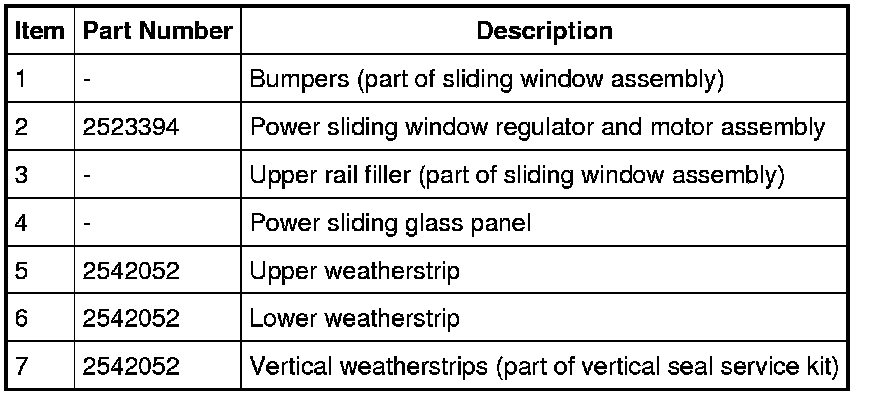

Power Sliding Glass Panel










Manual Sliding Glass Panel

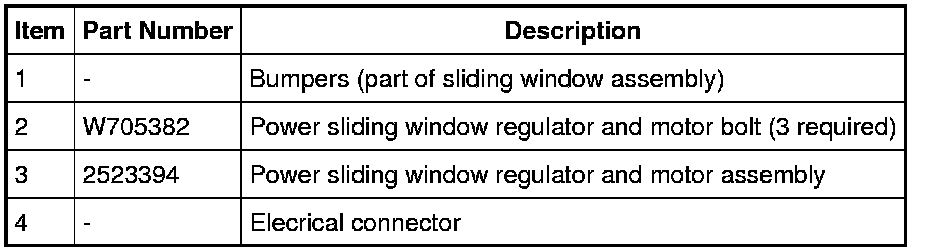

Window Regulator and Motor









1. For additional information, refer to the individual procedures.
