Exhaust System
Exhaust System

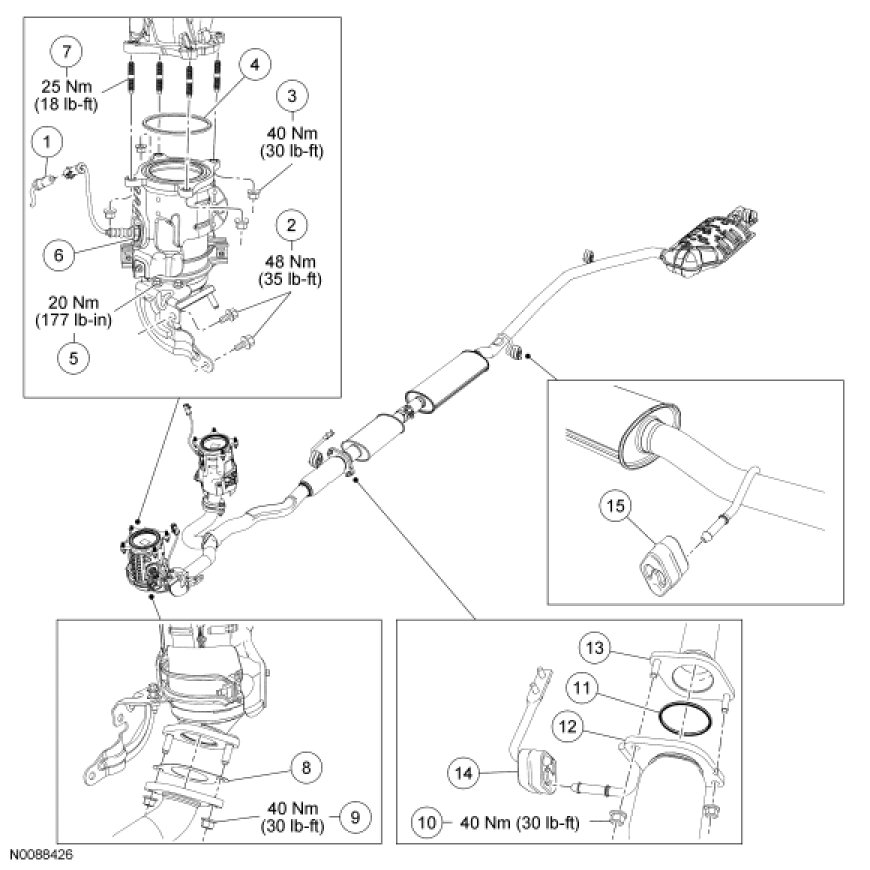

- Exploded View
1.
For additional information, refer to the procedures.
