Register - Center

Register - Center









Removal and Installation

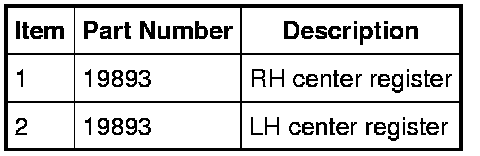

NOTE: The RH and LH center registers share the same base service part number but are not interchangeable. When obtaining service parts, be sure the correct register is ordered for the correct side.

1. Remove the center instrument panel finish panel.

2. Release the 6 clips and remove the RH center register.

3. Release the 6 clips and remove the LH center register.

4. To install, reverse the removal procedure.
