Register - Driver Side

Register - Driver Side









Removal and Installation

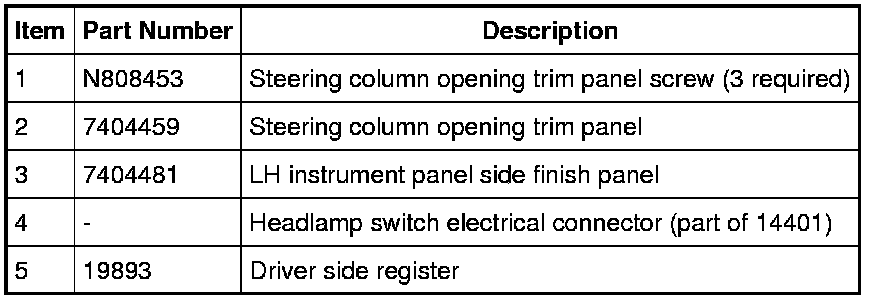

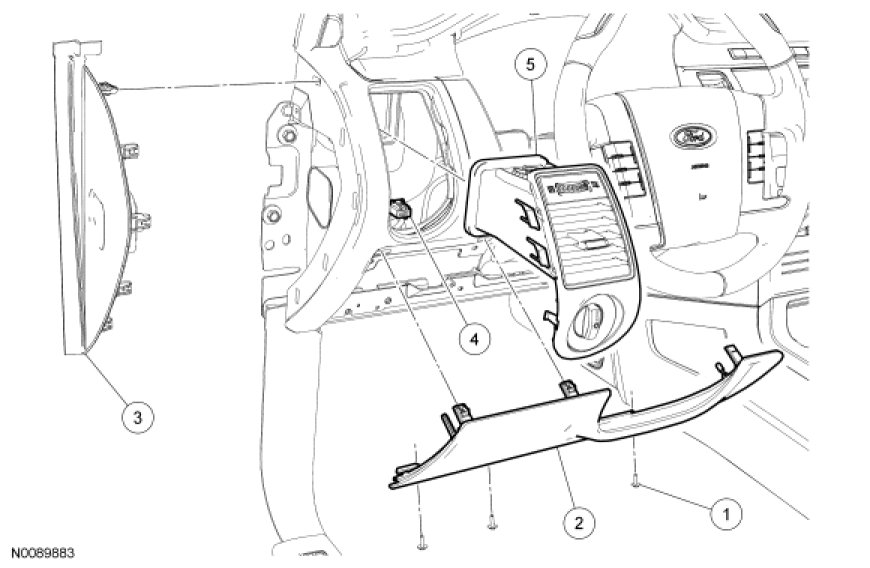

1. Remove the 3 steering column opening trim panel screws.

2. Detach and remove the steering column opening trim panel.

3. Remove the LH instrument panel side finish panel.

4. Release the 7 clips and remove the driver side register.
- Disconnect the headlamp switch electrical connector.

5. To install, reverse the removal procedure.
