Rear Bumper: Service and Repair

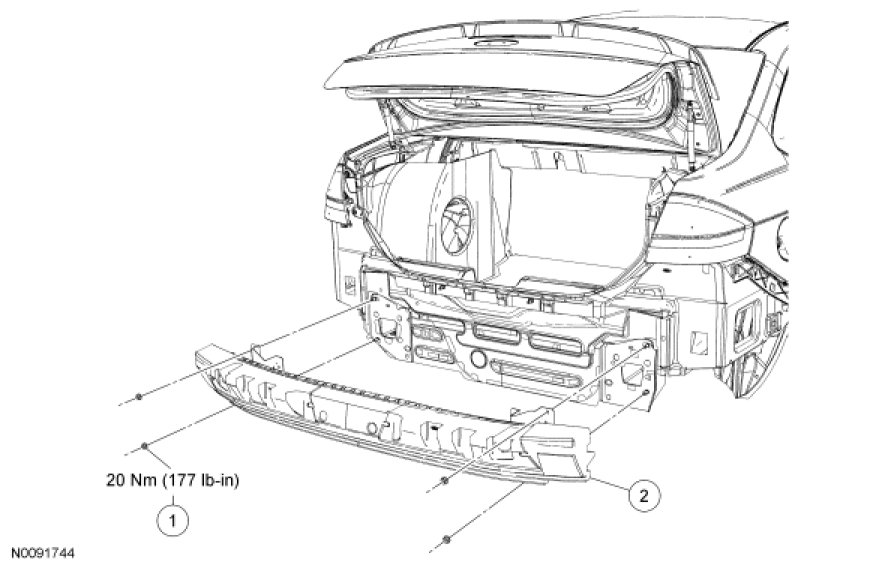

Bumper - RearNOTE: Sedan shown, coupe similar.
Removal and Installation 1.
Remove the rear
bumper cover. For additional information, refer to Bumper Cover - Rear
Removal and Replacement.
2.

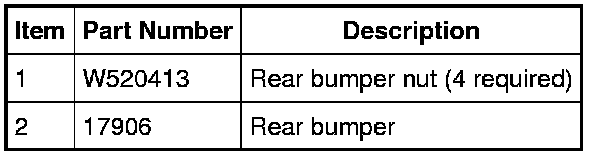

Remove the 4 rear
bumper retainer nuts and the rear bumper.
-
To install, tighten to 20 Nm (177 lb-in).
3.
To install, reverse the removal procedure.
