Exterior Moulding / Trim: Service and Repair
Air Deflector - Lower, RadiatorRemoval and Installation 1.
NOTE: LH shown, RH similar.

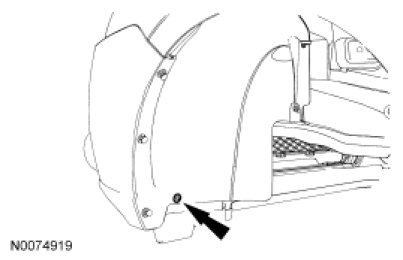

Remove the 2 screws from rear of the air deflector.
2.

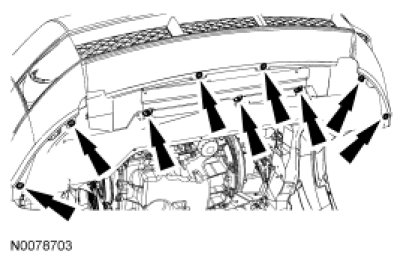

Remove the 6 screws and 3 pin-type retainers from the bottom of the air deflector.
3.
To install, reverse the removal procedure.
