Radiator Grille

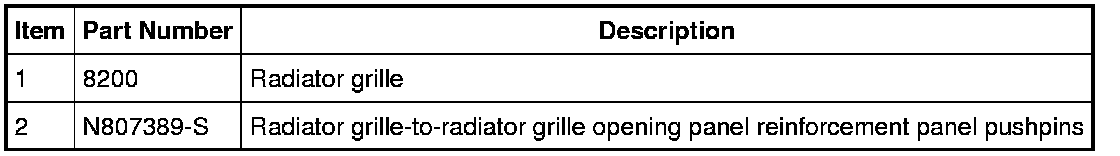

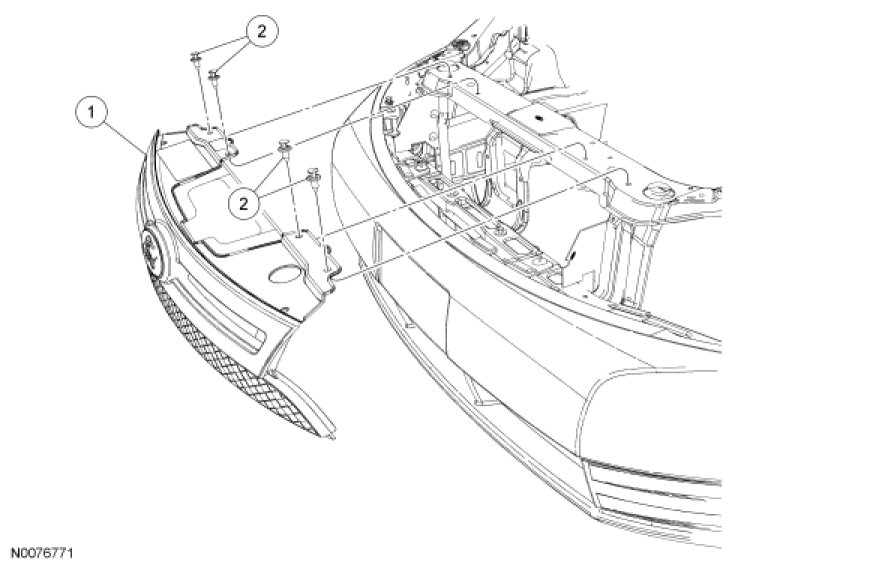

Radiator GrilleRemoval and Installation 1.
Remove the radiator grille-to-radiator grille opening panel reinforcement panel pushpins.
2.
Disengage the radiator grille from the clips on the front
bumper cover.
3.
To install, reverse the removal procedure.
