Door Lock Cylinder: Service and Repair




Door Lock Cylinder

Removal and Installation

1. Remove the front door exterior handle reinforcement. For additional information, refer to Door Handle Reinforcement - Exterior, Front Door Handle Reinforcement - Exterior, Front.

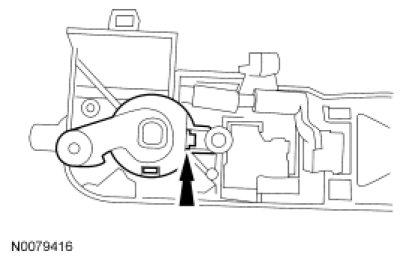

2. Release the clip and slide the door lock cylinder out of the exterior front door handle reinforcement.





3. NOTE: Make sure to align the D-slot on the door lock cylinder with the D-slot on the door lock cylinder lever.

To install, reverse the removal procedure.
