Wheel Speed Sensor - Front
Wheel Speed Sensor - FrontRemoval and Installation 1.
Remove the wheel and tire.
2.

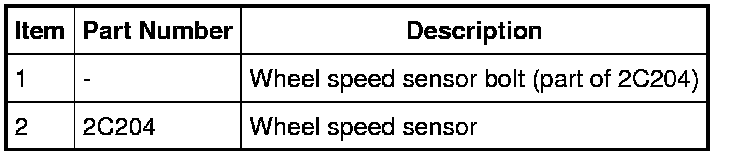

Remove the
wheel speed sensor bolt.
-
To install, tighten to 9 Nm (80 lb-in).
3.
Disconnect the
wheel speed sensor electrical connector.
-
Remove the sensor by pulling the sensor grommets out of the clips.
4.
To install, reverse the removal procedure.
