Accelerator Pedal: Service and Repair

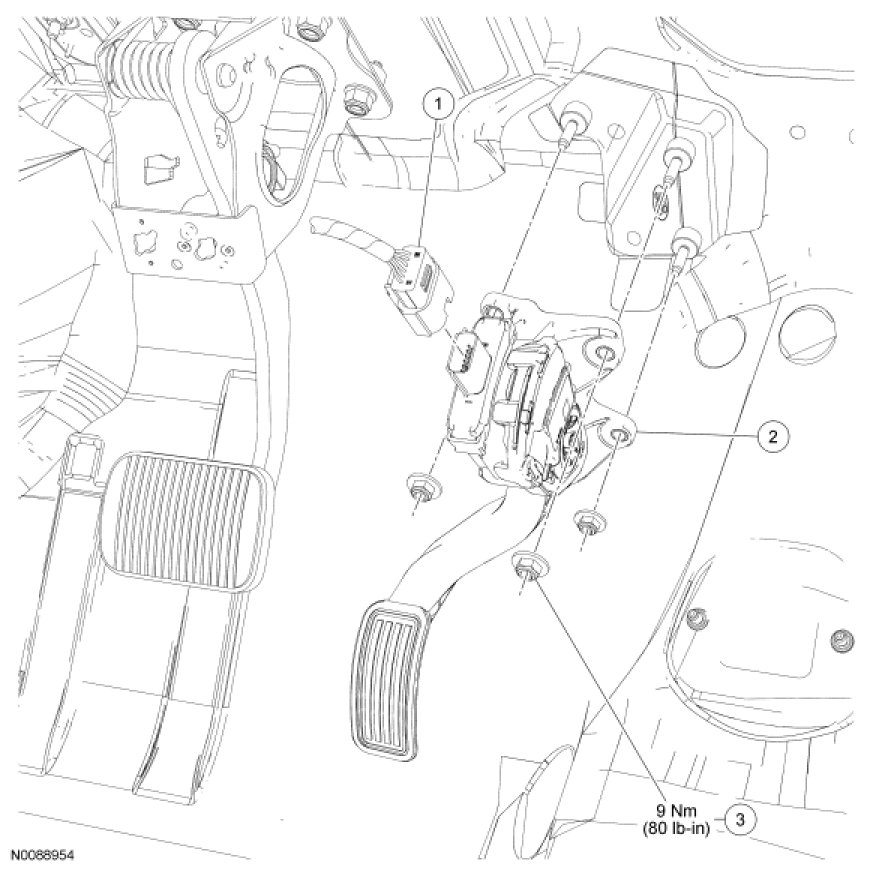

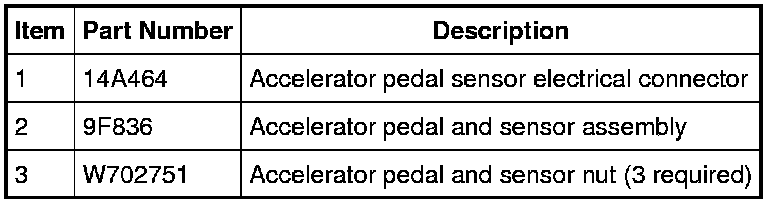

Accelerator PedalRemoval and Installation 1.
Disconnect the accelerator pedal sensor electrical connector.
2.
Remove the 3 nuts and the
accelerator pedal and sensor assembly.
-
To install, tighten to 9 Nm (80 lb-in).
3.
To install, reverse the removal procedure.
