Resonator: Service and Repair

Intake Air Resonator

Removal and Installation

1. Loosen the clamp and separate the Air Cleaner (ACL) outlet pipe from the intake air resonator.
- To install, tighten to 4 Nm (35 lb-in).

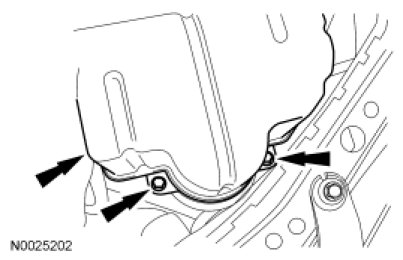

2. Remove the 2 bolts and detach the intake air resonator from the grommets.
- Remove the intake air resonator.

- To install, tighten to 7 Nm (62 lb-in).

3. To install, reverse the removal procedure.
