Transfer Shaft

4F27E

Transfer Shaft





Disassembly

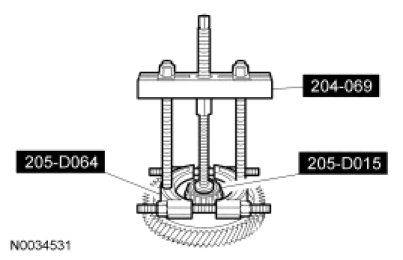

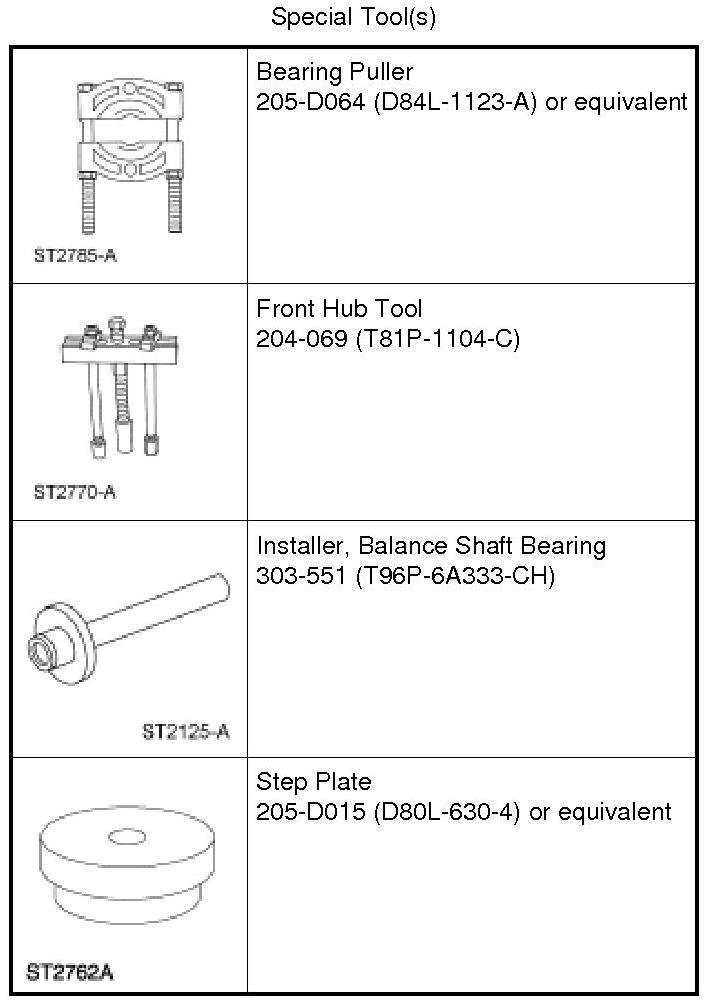

1. Using the Bearing Puller, Front Hub Tool and Step Plate, remove the RH transfer shaft gear bearing.

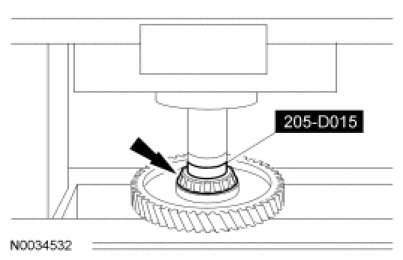

2. Using the Step Plate and a press, remove the LH transfer shaft gear bearing while separating the gears.





Assembly

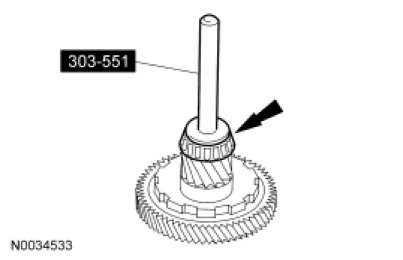

1. Using the Balance Shaft Bearing Installer, install the RH transfer shaft gear and park gear assembly.

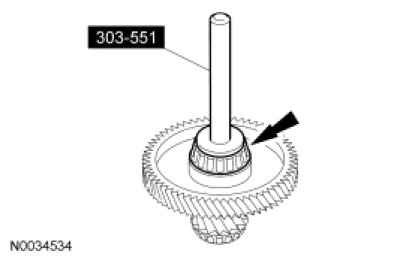

2. Using the Balance Shaft Bearing Installer, assemble the gears and install the LH transfer shaft gear bearing.
