Cabin Air Filter / Purifier: Service and Repair

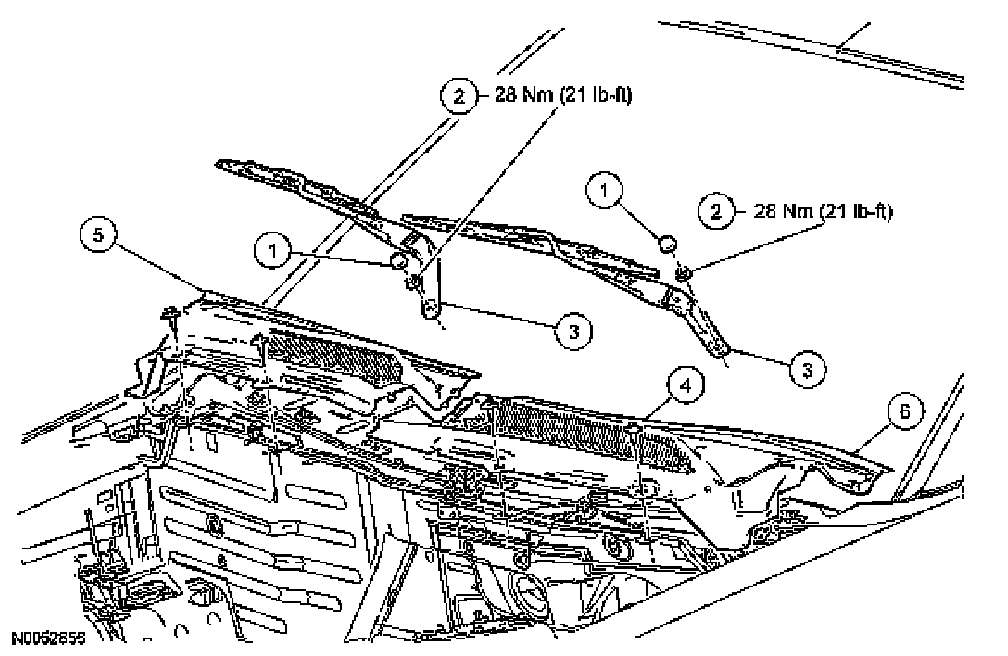

Cabin Air Filter Removal and InstallationNote: The cabin airfilter is located under the RH cowl vent screen.
1.

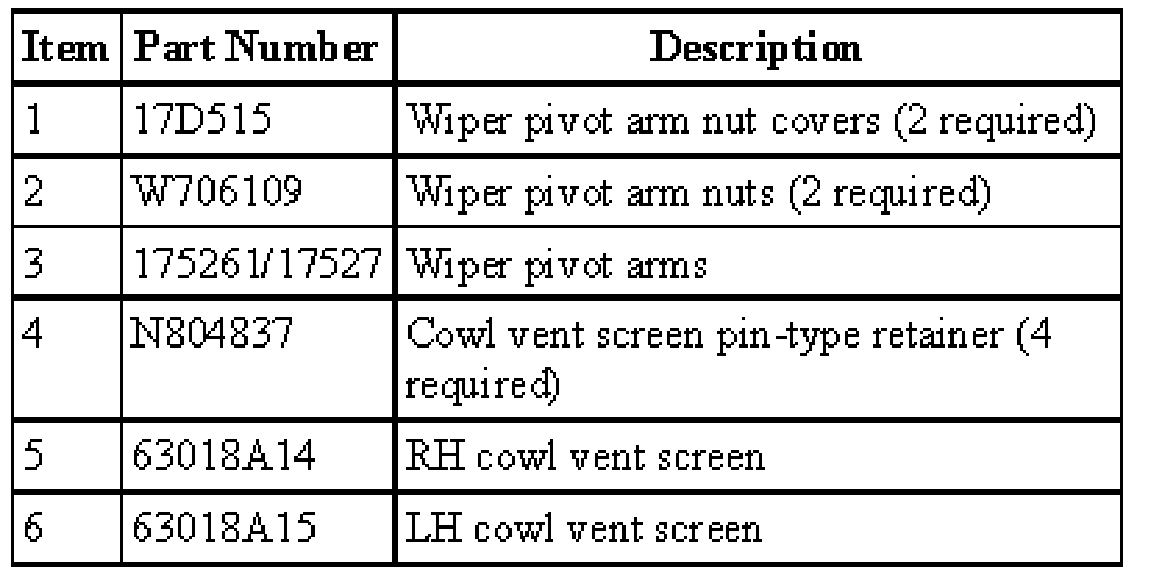

Remove the 2 wiper pivot arms.
2.
Remove the 4 cowl vent screen pin-type retainers.
Note: The RH cowl vent screen overlaps the LH cowl vent screen and must be removed first.
3.
Remove the RH and LH cowl vent screens.
4.
To install, reverse the removal procedure.
