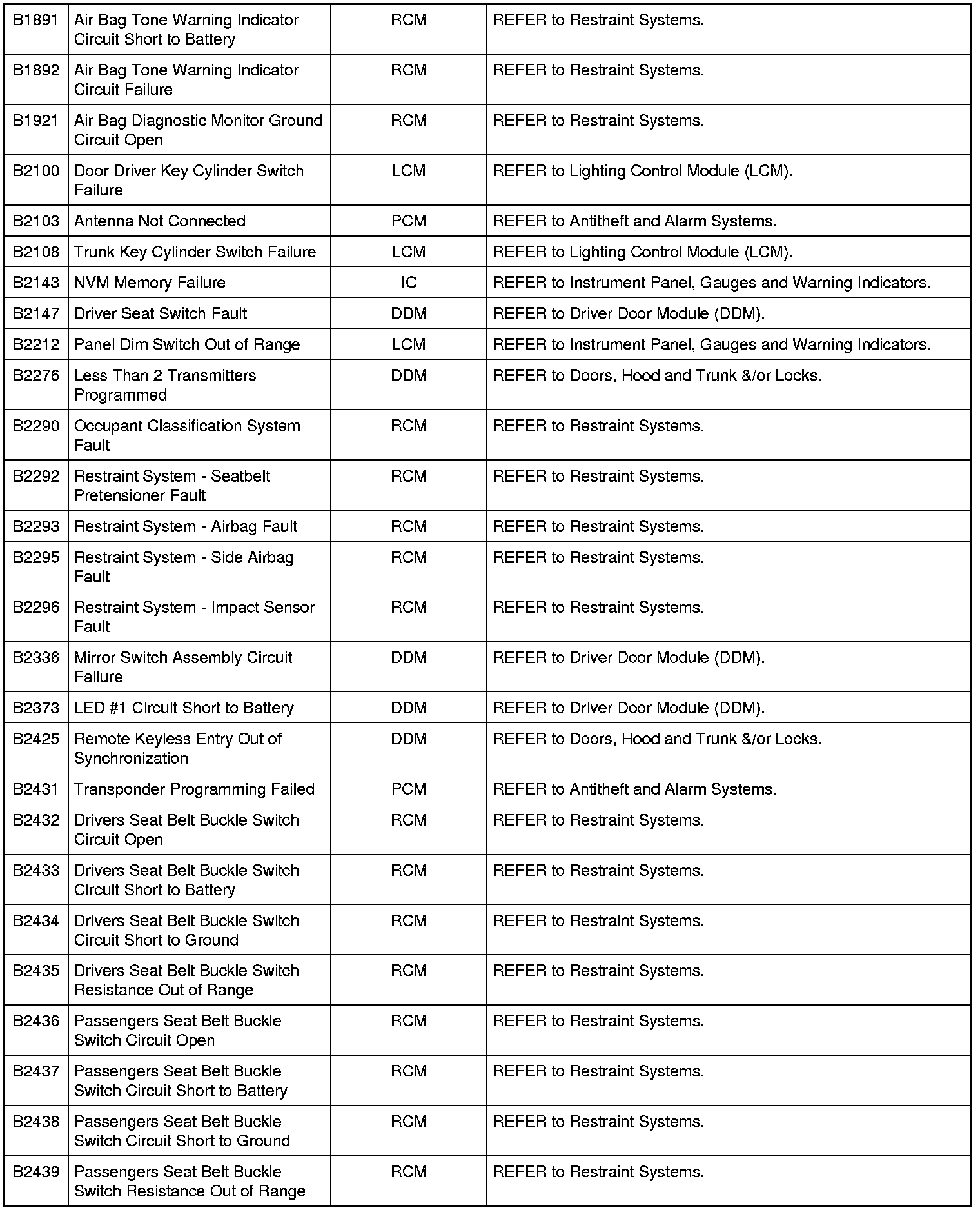

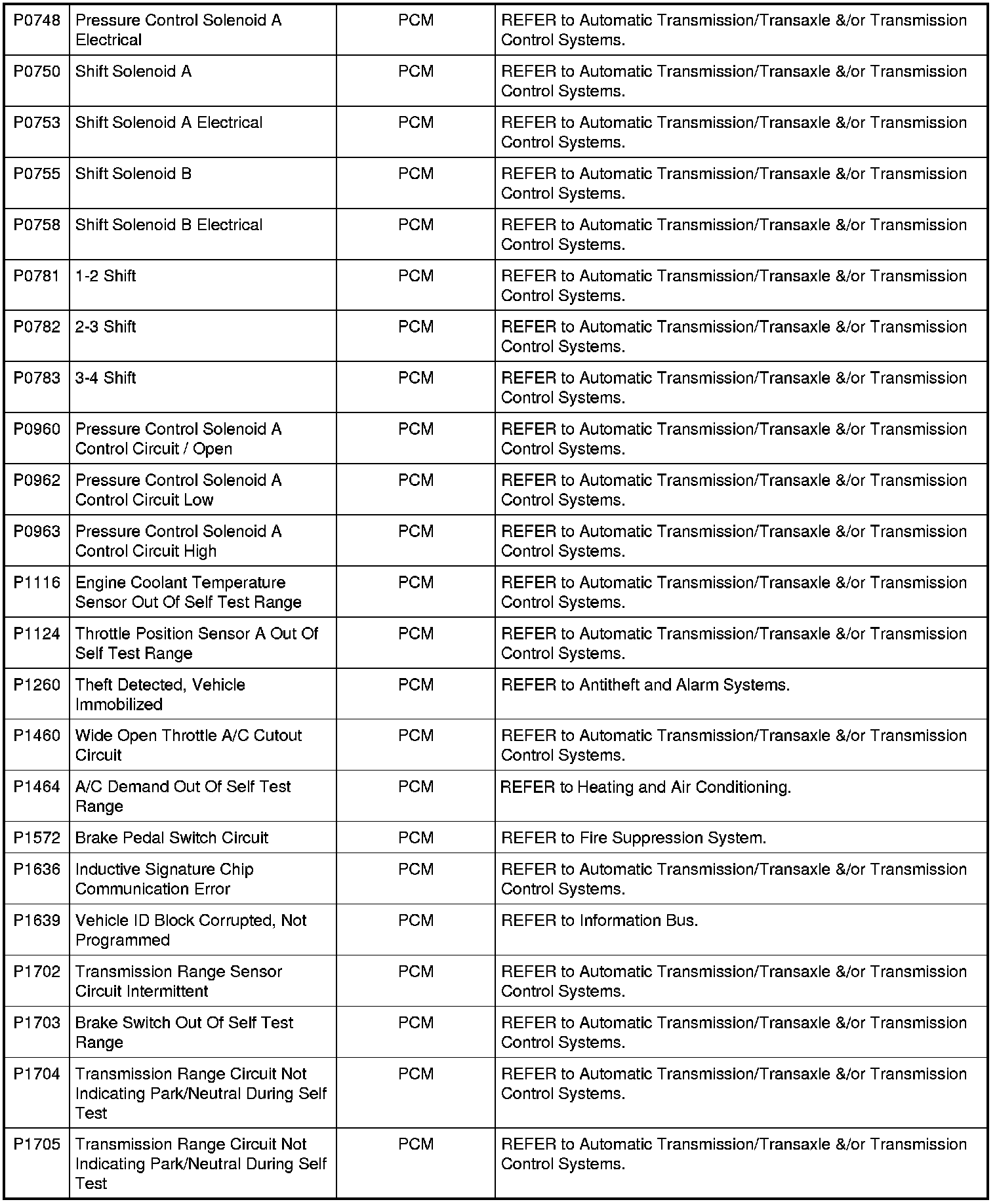

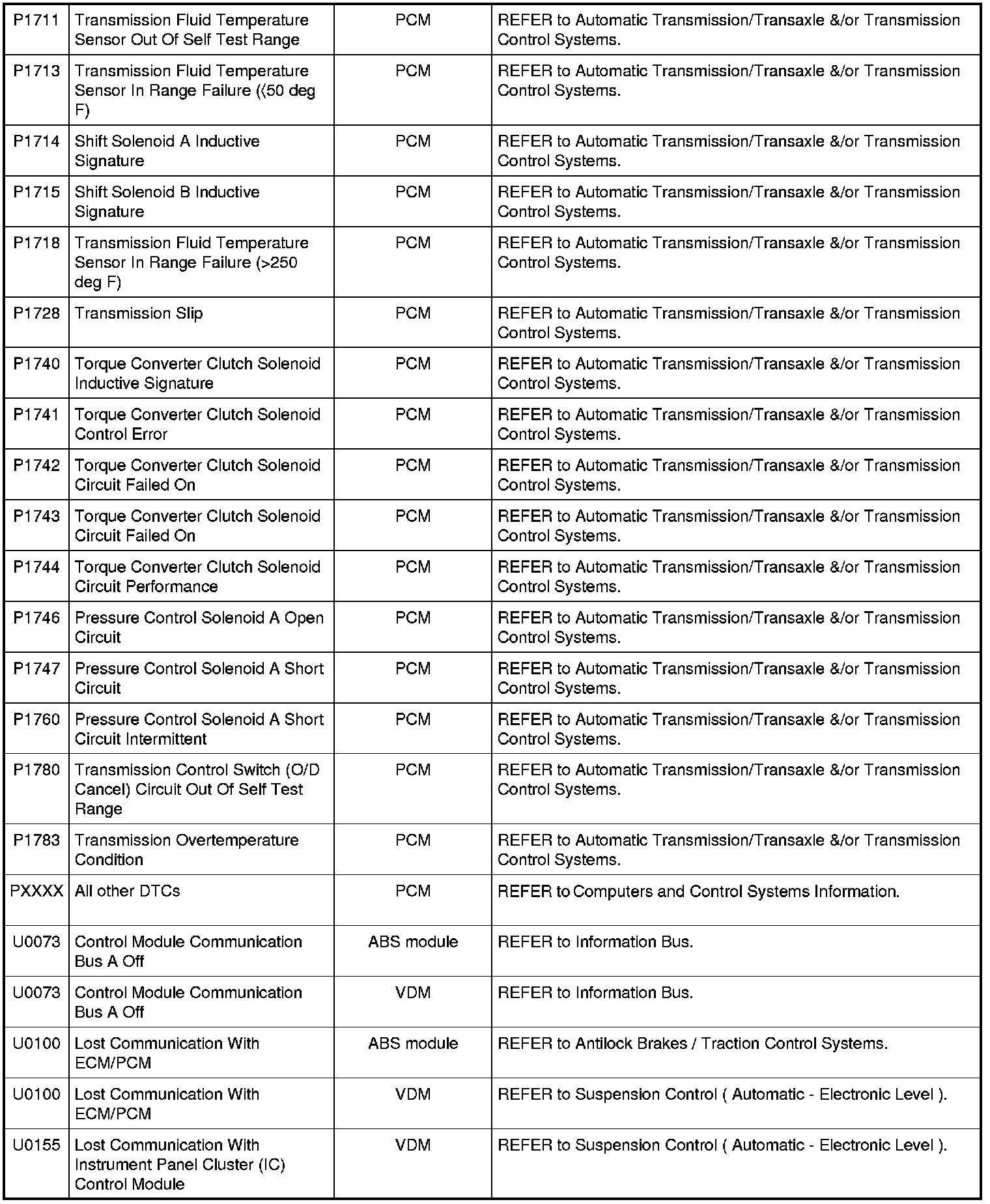

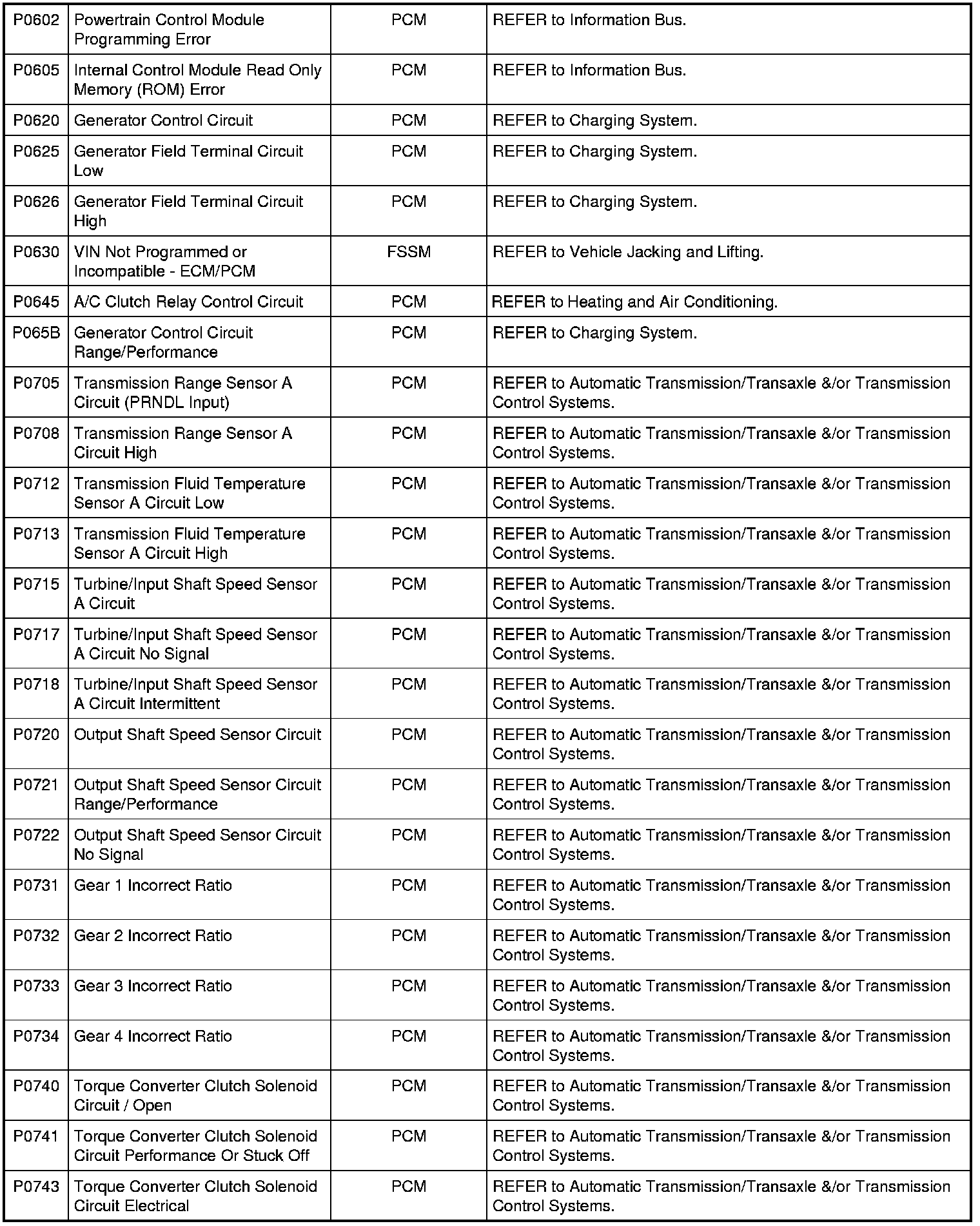

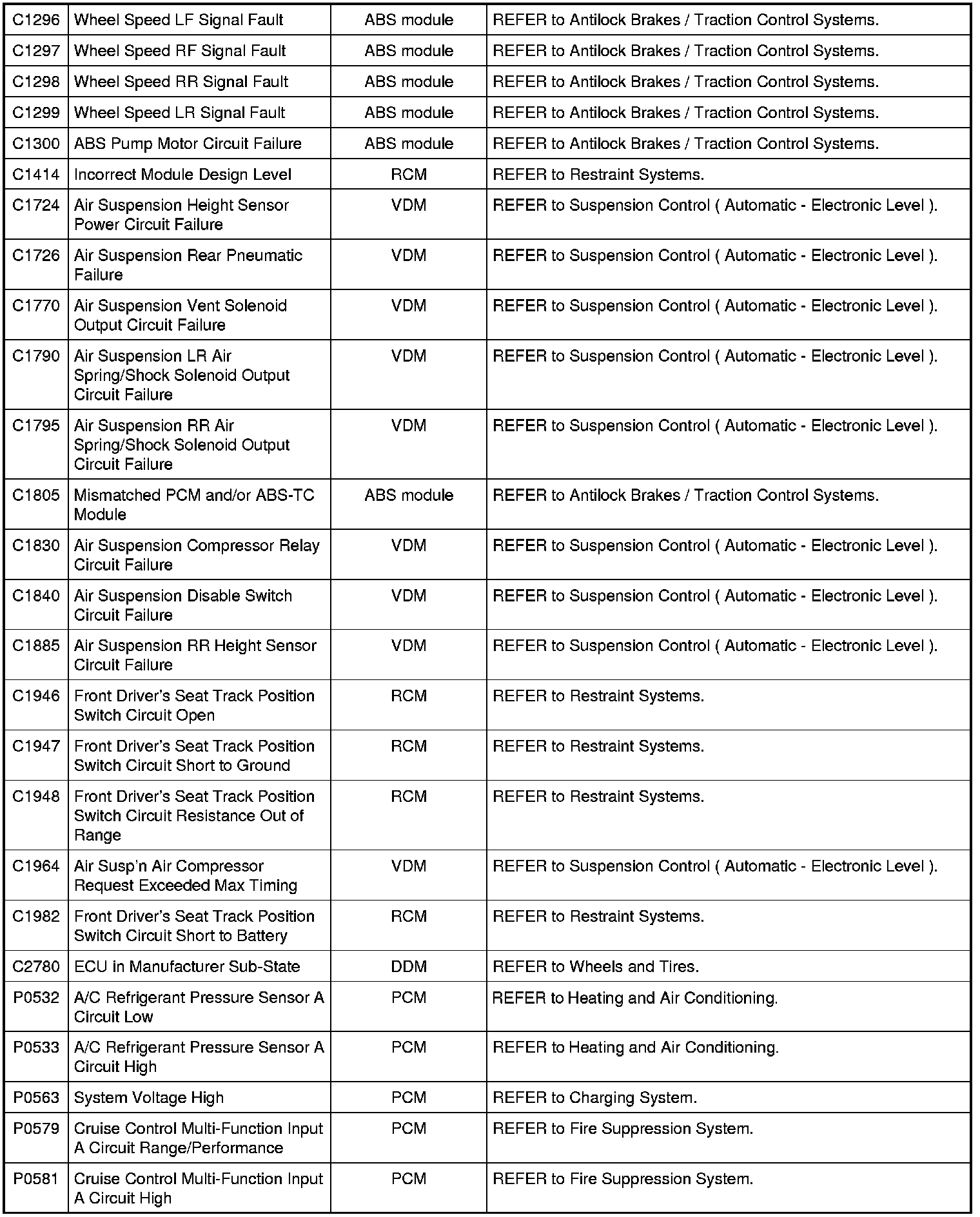

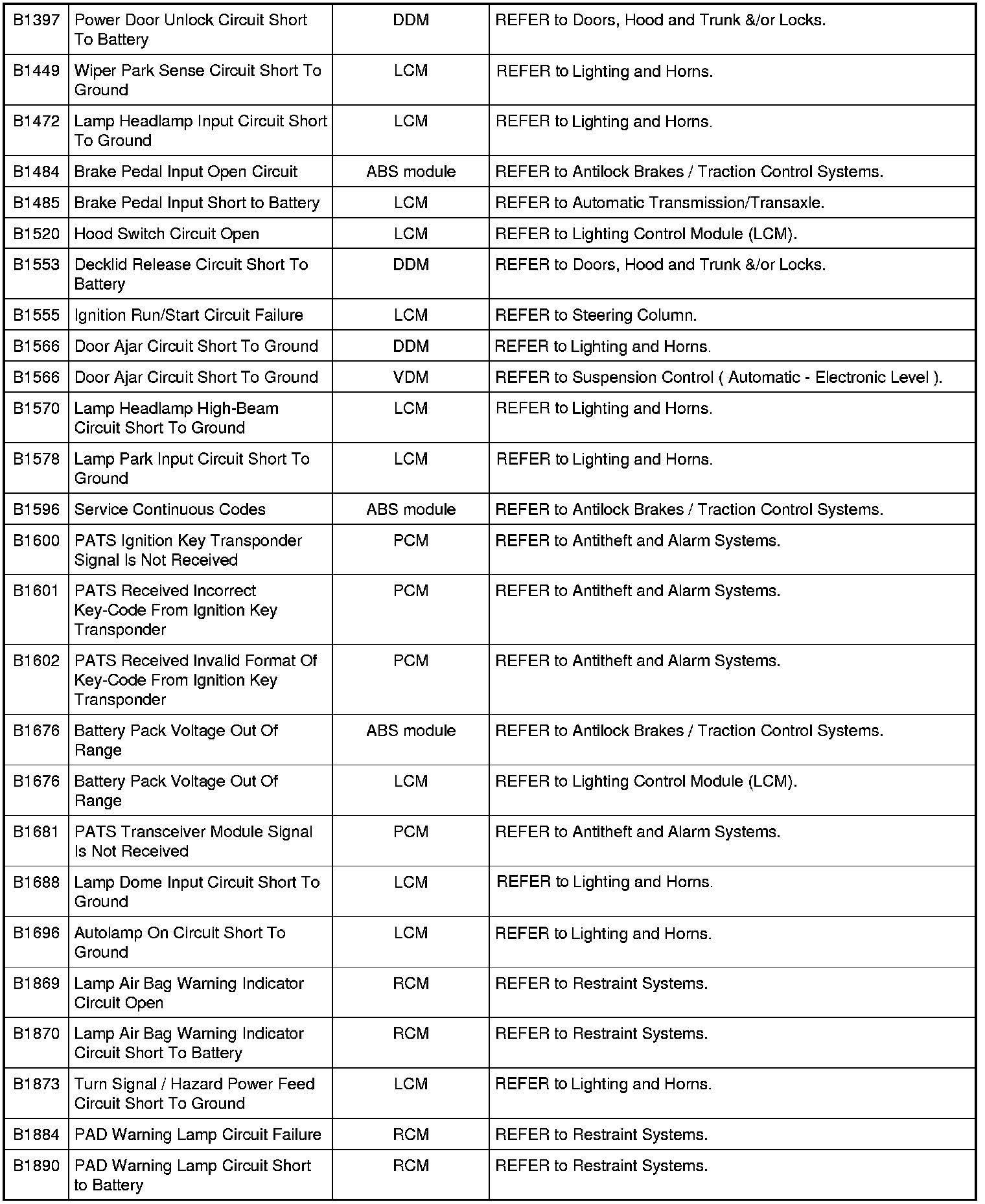

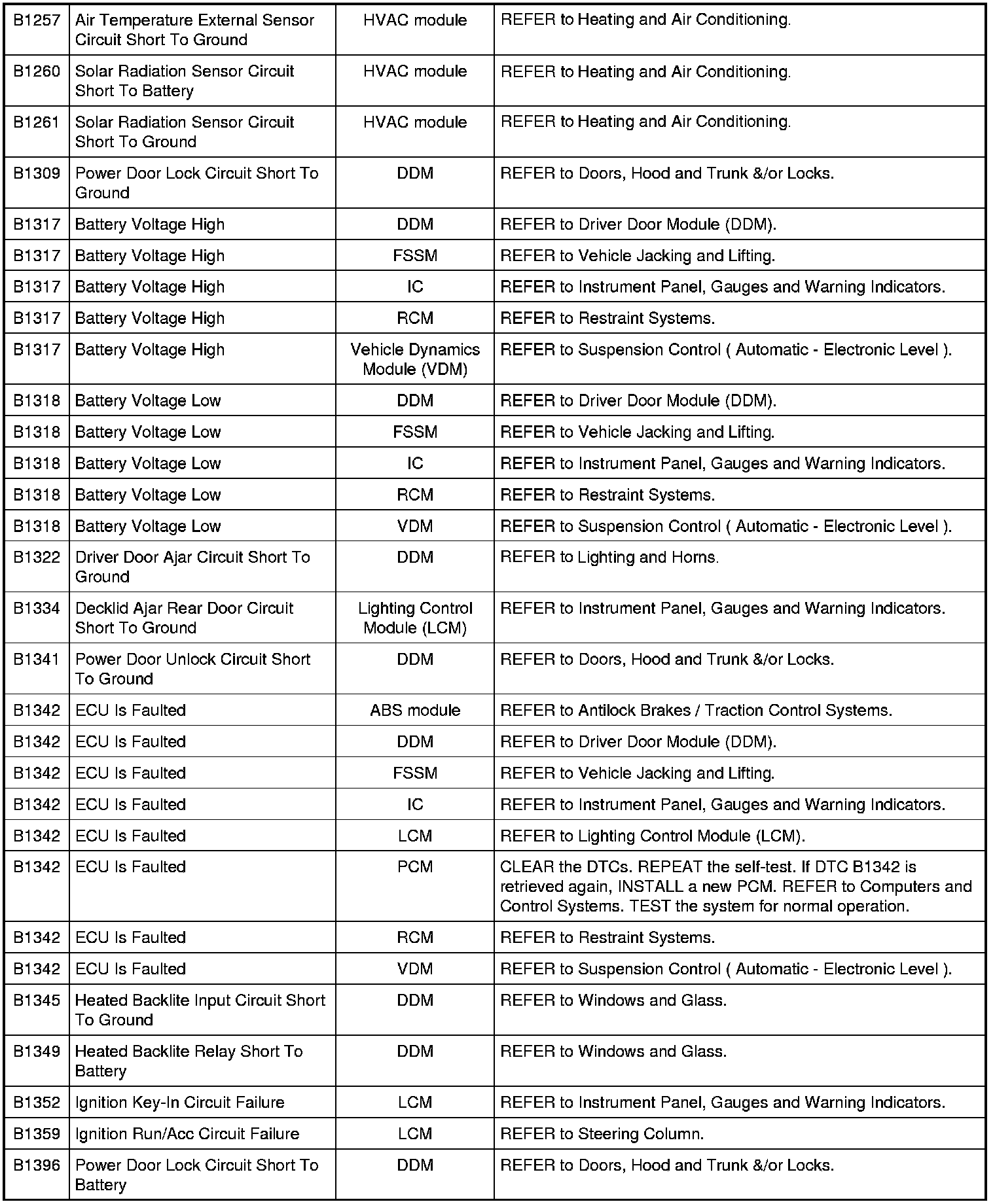

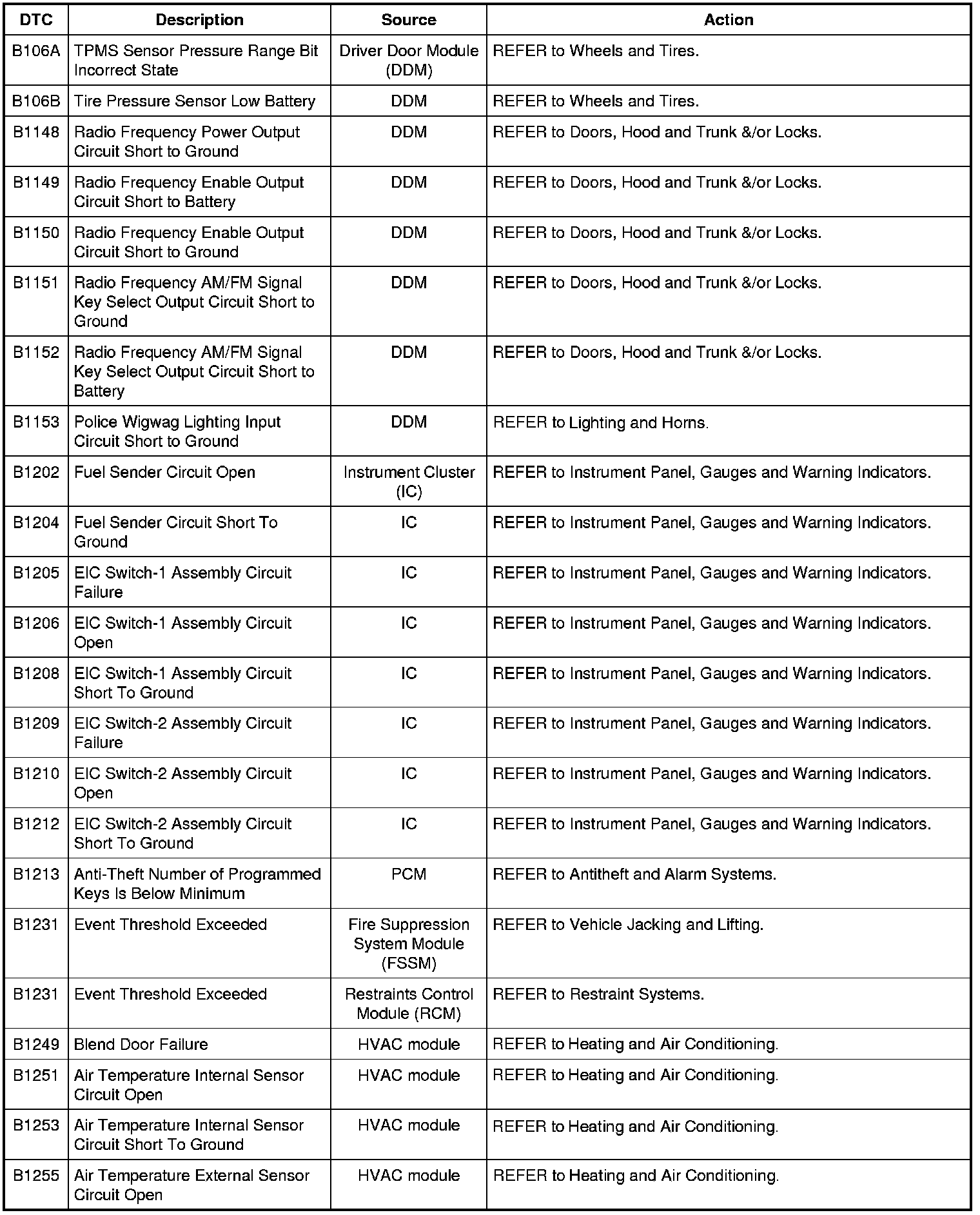

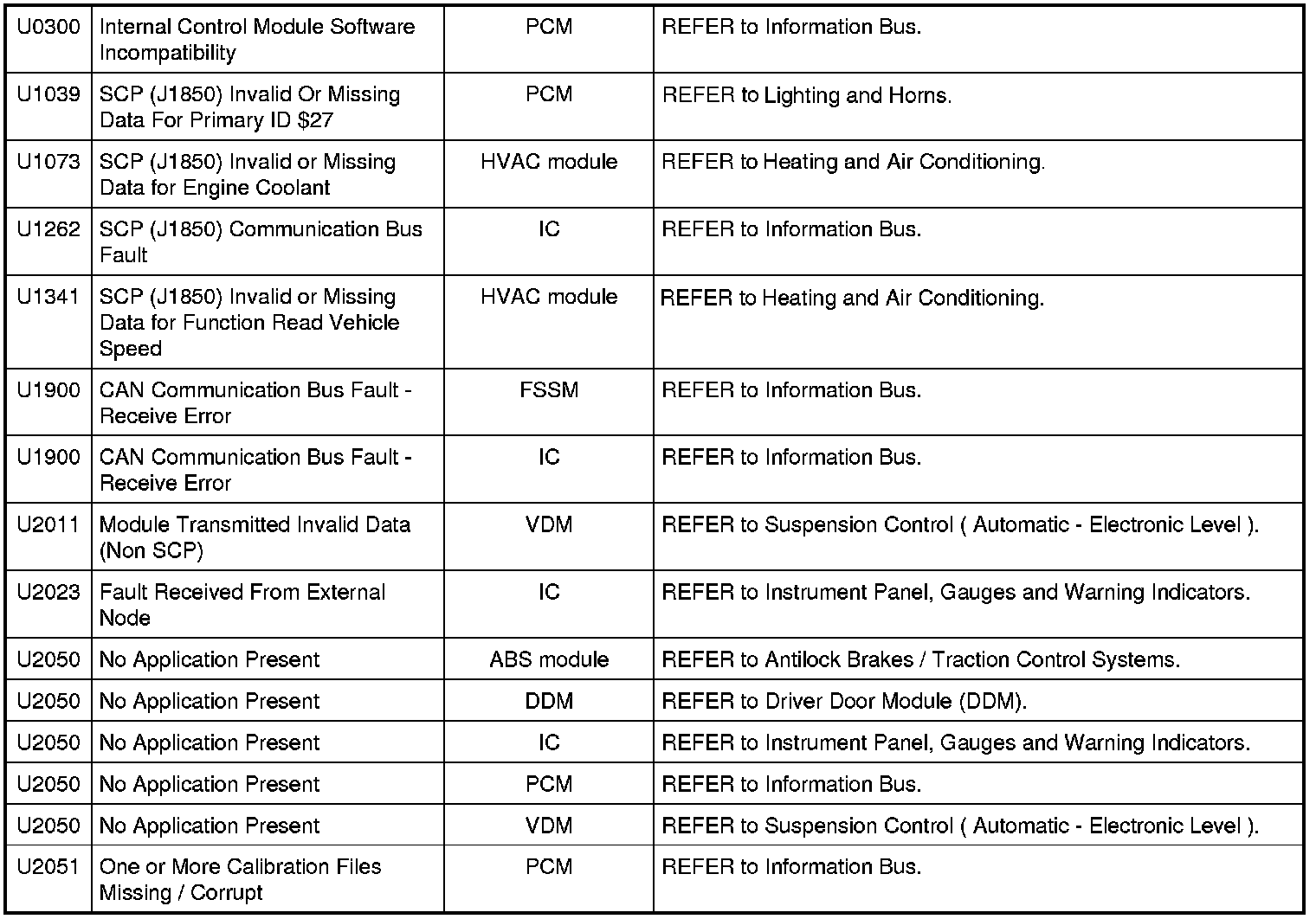

Diagnostic Trouble Code (DTC) Chart




Diagnostic Trouble Code (DTC) Chart

NOTE: Most powertrain (P-code) DTCs are diagnosed in Computers and Control Systems Information. If the P-code retrieved is not listed below, refer to Computers and Control Systems Information to continue diagnostics.
