Heating Ventilation Air Conditioning (HVAC) Module




Heating Ventilation Air Conditioning (HVAC) Module

Removal and Installation

1. Depower the Supplemental Restraint System (SRS). For additional information, refer to Supplemental Restraint System (SRS) Depowering and Repowering in the General Procedures portion of Restraint Systems.

2. Detach the finish panel.





3. Disconnect the electrical connector.

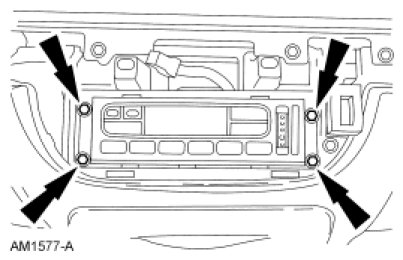

4. Remove the 4 HVAC module screws.





5. Remove the HVAC module.

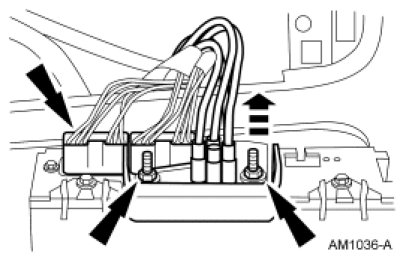

- Remove the nuts and disconnect the vacuum harness.

- Disconnect the wire harness connectors and remove the HVAC module.





6. To install, reverse the removal procedure.
