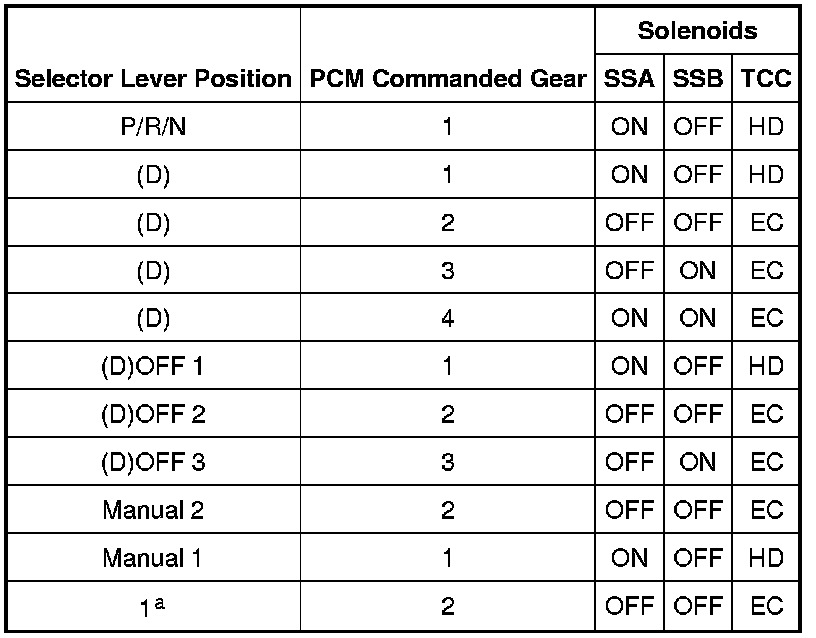

Solenoid Operation Chart
Solenoid Operation Chart a
When a manual pull-in occurs above a calibrated speed, the transmission will not downshift from the higher gear until the vehicle speed drops below this calibrated speed.
EC
= Electronically Controlled
HD
= Hydraulically Disabled
