Oil Separator: Service and Repair

Crankcase Vent Oil Separator

Removal and Installation

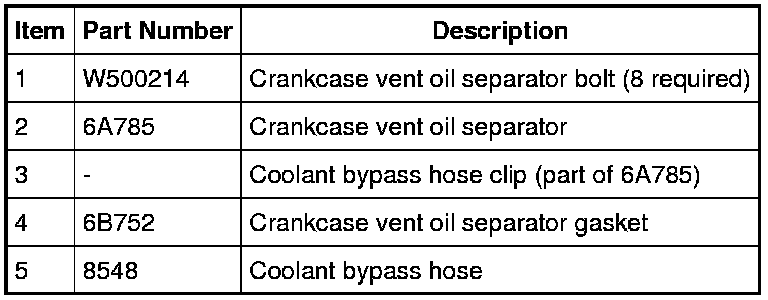

1. Remove the intake manifold. For additional information, refer to Engine.

2. Release the coolant bypass hose from the clip.

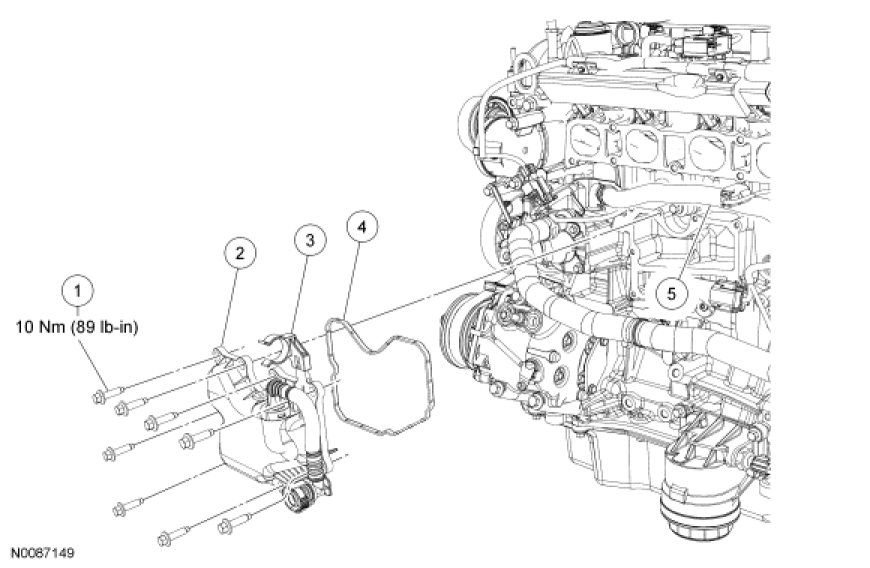

3. Remove the 8 bolts, the crankcase vent oil separator and gasket.
- To install, tighten to 10 Nm (89 lb-in).

4. To install, reverse the removal procedure.
- Clean and inspect the crankcase oil vent separator gasket and replace if necessary.
