Register - Driver Side

Register - Driver Side









Removal and Installation

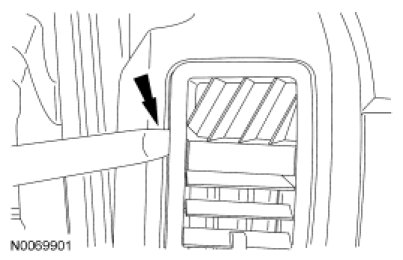

1. NOTICE: Make sure that the tool is inserted behind the register housing, not the register trim ring. Prying on the register trim ring will damage the register assembly.

Using a suitable tool, gently pry to disengage the register clips from the instrument panel while working around the perimeter of the register.

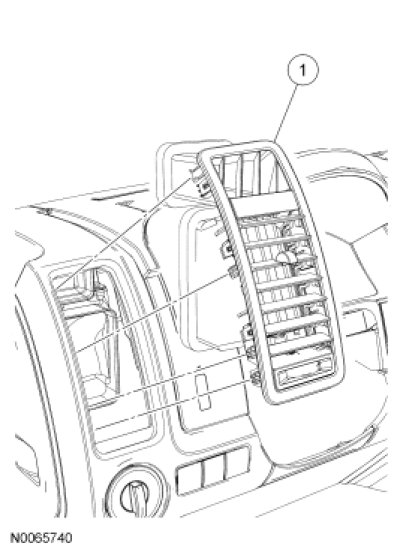

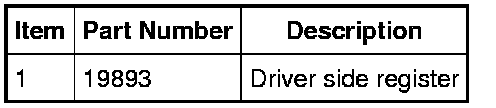

2. Remove the driver side register.

3. To install, reverse the removal procedure.
