Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2010
>>
Escape 2WD V6-3.0L
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Diagnostic Trouble Code Tests and Associated Procedures
>>
Instrumentation, Message Center and Warning Chimes
>>
Instrument Cluster
Instrument Cluster
Instrumentation, Message Center and Warning Chimes
DTC Charts

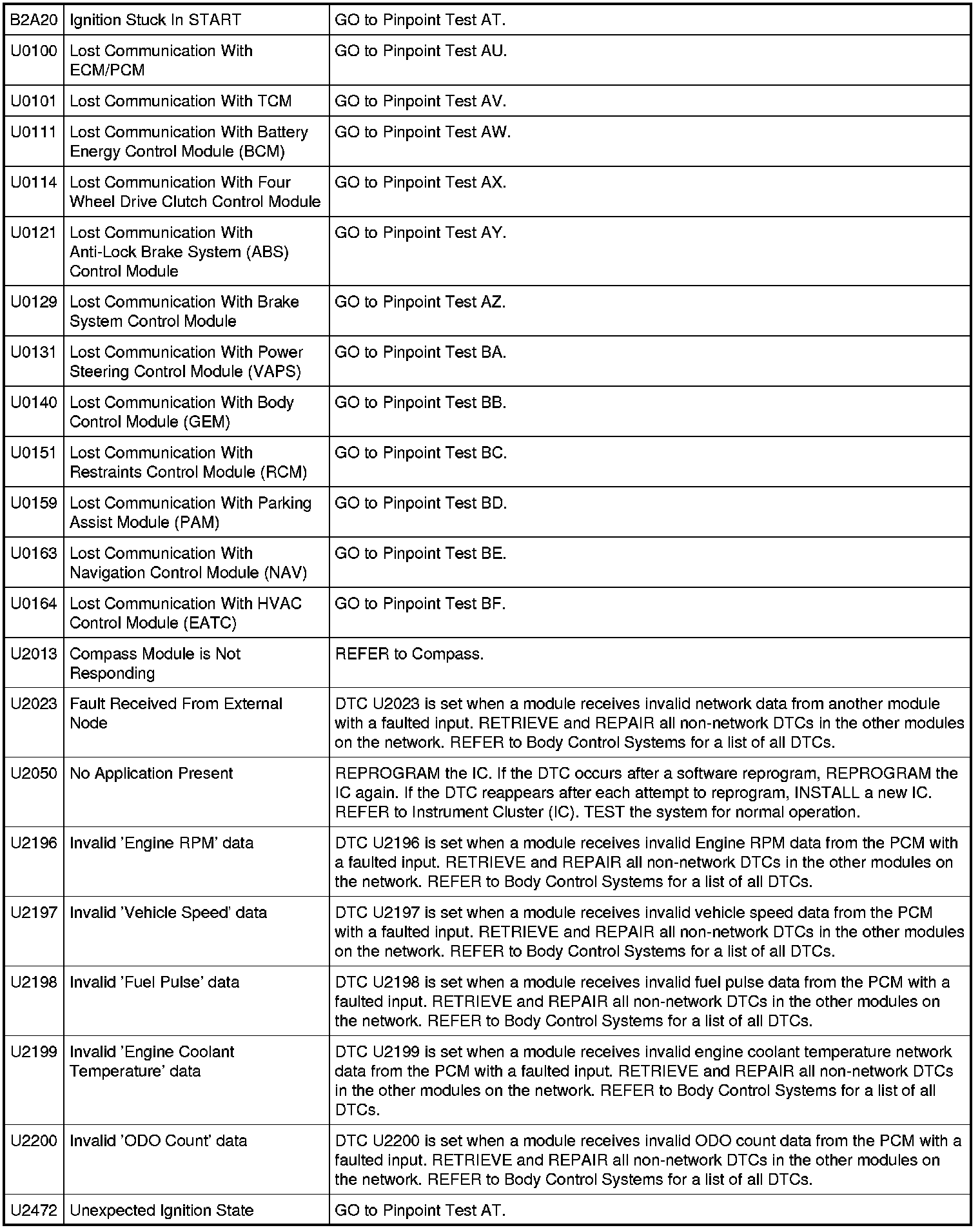

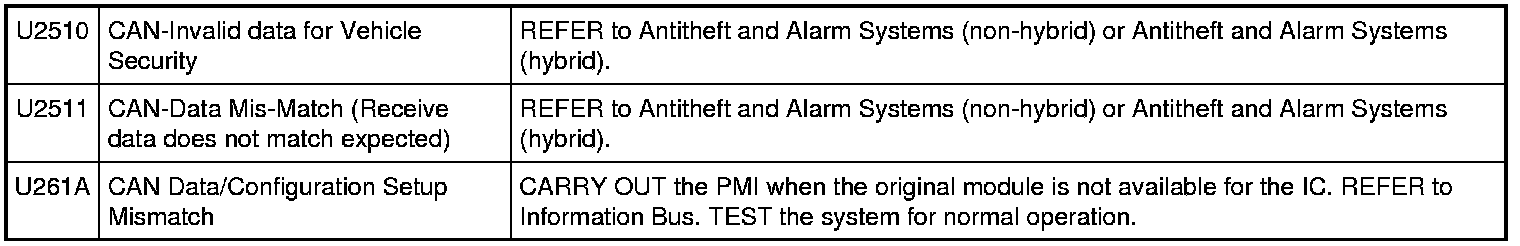

Instrument Cluster (IC) DTC Chart
