Thermostat and Thermostat Housing - Exploded View

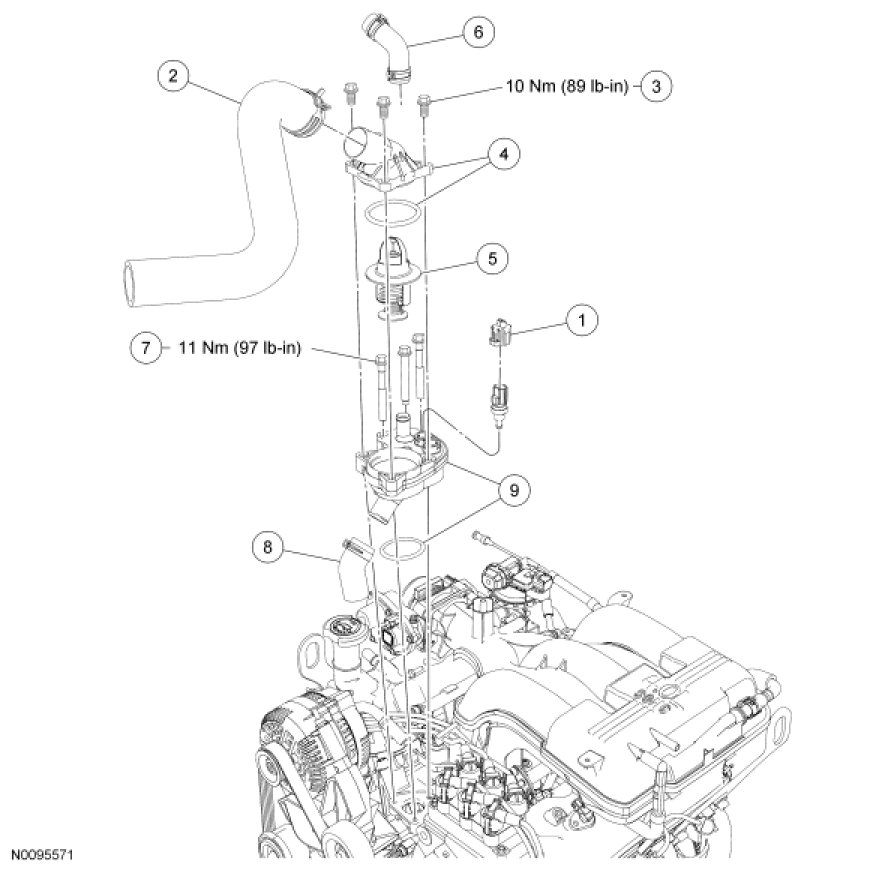

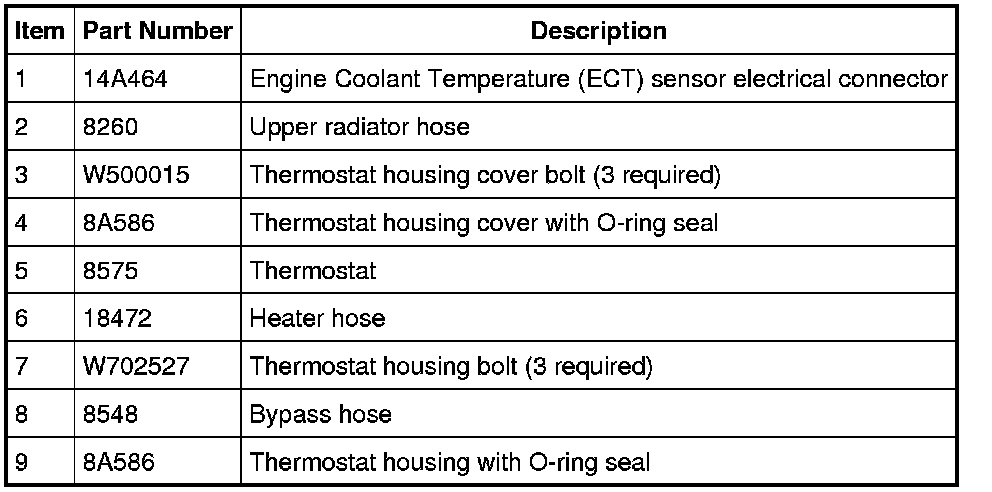

Thermostat and Thermostat Housing - Exploded View, 4.0L SOHC
