Oil Pump

Oil Pump





1. Remove the cylinder block cradle. For additional information, refer to Cylinder Block Cradle Cylinder Block Cradle.

2. Remove the 2 bolts and the oil pump.
- To install, tighten to 19 Nm (168 lb-in).

3. To install, reverse the removal procedure.

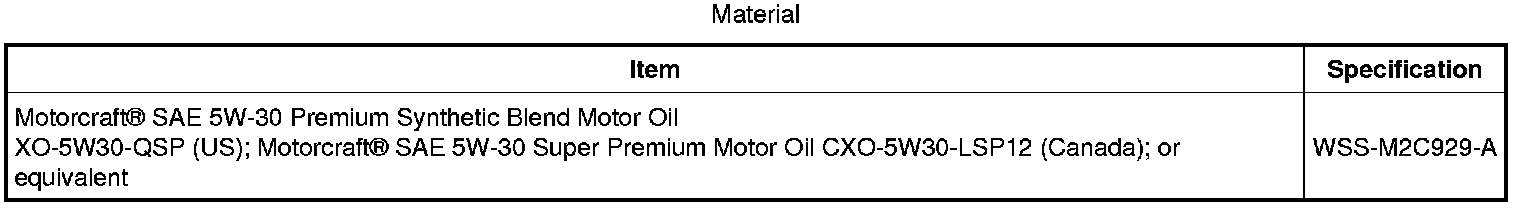

- Lubricate the oil pump with clean engine oil.
