Transmission Fluid Level Check

Transmission Fluid Level Check

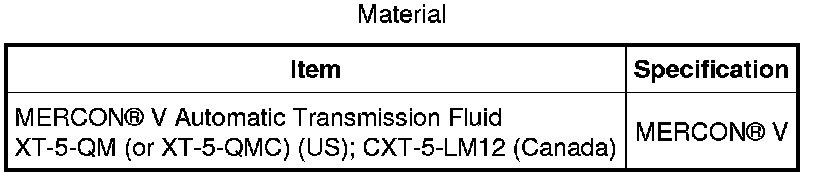

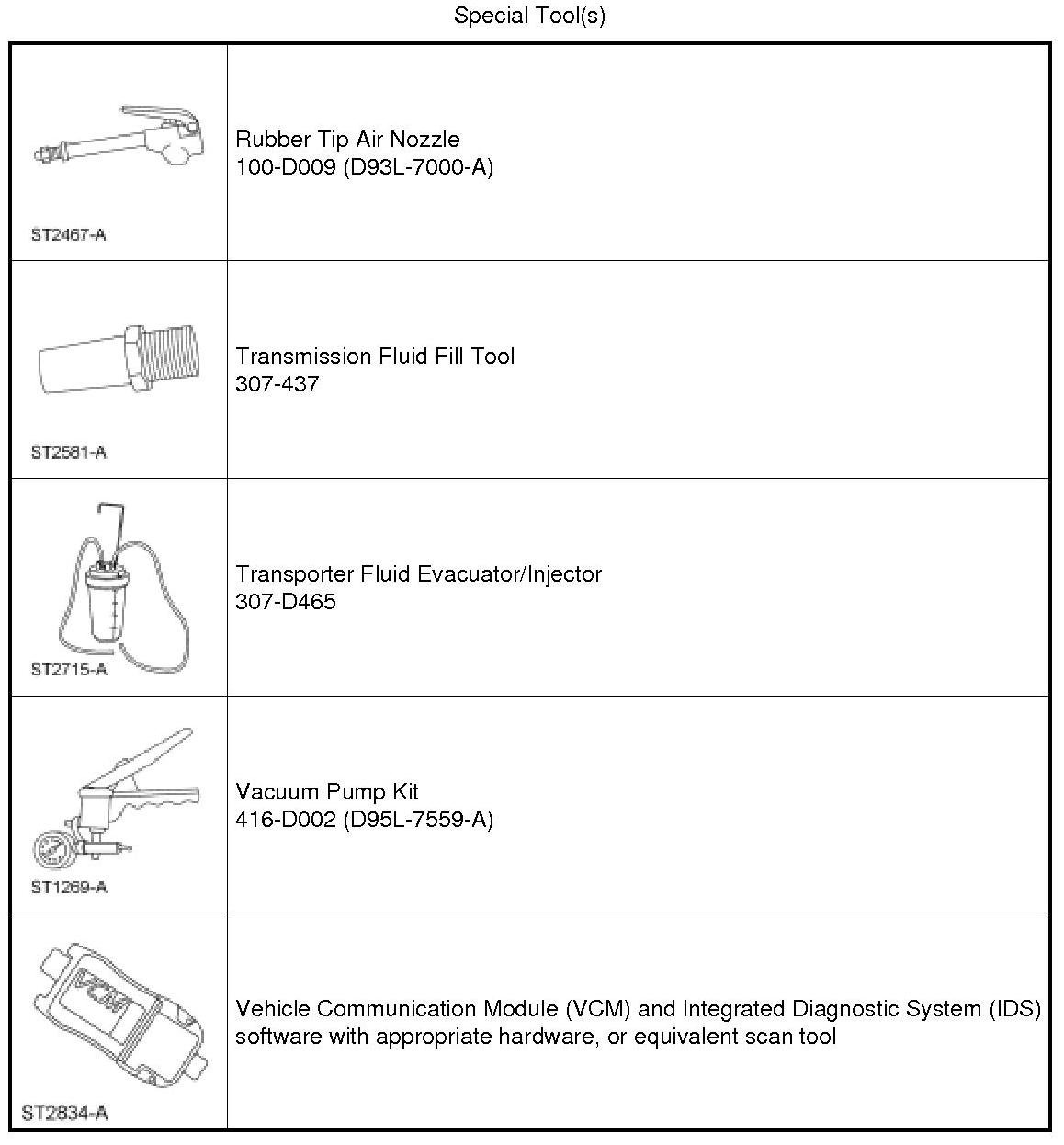

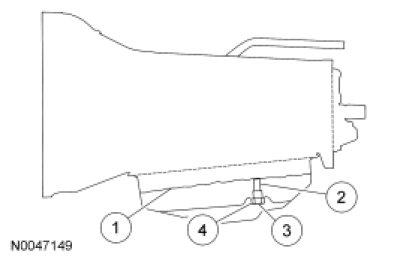

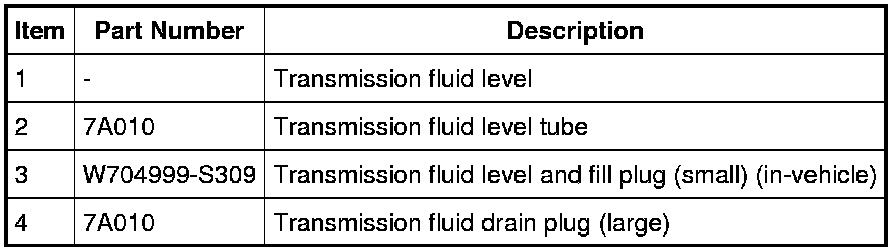

Transmission Fluid Fill Reference

NOTE: Left side of case shown.











1. Using the scan tool, monitor the Transmission Fluid Temperature (TFT).

2. Start the engine.

3. NOTE: Engine idle speed is approximately 650 rpm.

Run the engine until the TFT is between 27-49°C (80-120°F).

4. Move the selector lever slowly through each gear, stopping in each position and allowing the transmission to engage.





5. Place the selector lever in the PARK position.

6. With the engine running and the vehicle set as close to level as possible, position it on a hoist. For additional information, refer to Vehicle Jacking and Lifting.

7. Hold the larger transmission fluid drain plug with a wrench and remove the small (center) transmission fluid level indicating plug.





8. Install the Transmission Fluid Fill Tool into the pan.





9. NOTE: Prior to filling the Transporter Fluid Evacuator/Injector with transmission fluid, make sure that the canister is clean.

Fill the Transporter Fluid Evacuator/Injector with transmission fluid.

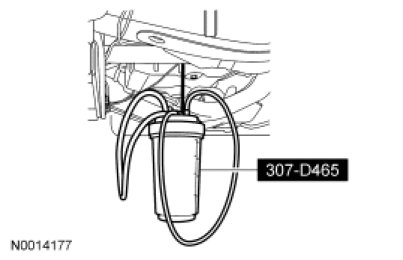

10. Hang the Transporter Fluid Evacuator/Injector under the vehicle. Position it upright and close to the transmission.

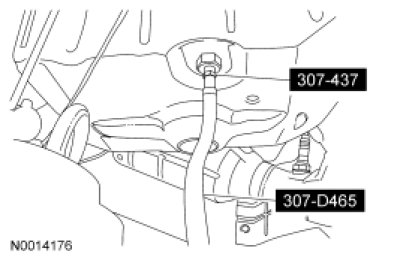

11. Connect the Transporter Fluid Evacuator/Injector.
- Connect the open end of the fluid hose from the Transporter Fluid Evacuator/Injector to the Transmission Fluid Fill Tool at the bottom of the transmission fluid pan.





12. Apply a maximum of 206.85 kPa (30 psi) to the open end of the vacuum/pressure hose from the Rubber Tip Air Nozzle. Transmission fluid will immediately start flowing out of the Transporter Fluid Evacuator/Injector into the transmission fluid pan.





13. Add 0.5L (1 pt) of transmission fluid into the transmission fluid pan. Stop the process by releasing the air pressure and removing the Rubber Tip Air Nozzle from the end of the hose.

14. Inspect the transmission fluid level in the Transporter Fluid Evacuator/Injector. If the transmission fluid drains back into the canister, the transmission is full. If no transmission fluid drains back, more transmission fluid will need to be added. Repeat Steps 12 and 13.

15. Once the transmission is full, place a Vacuum Pump Kit on the open end of the vacuum/pressure hose on the Transporter Fluid Evacuator/Injector and apply vacuum to the system. This will pull out any extra transmission fluid trapped in the system and direct it into the container.

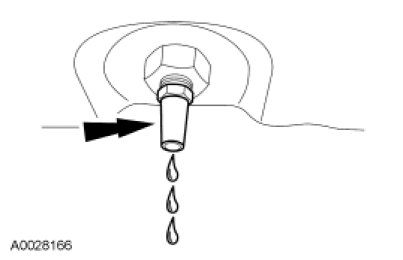

16. Allow the transmission fluid to drain. Make sure that the TFT is between 27-49°C (80-120°F). When the transmission fluid comes out as a thin stream or drip, the transmission fluid is at the correct level.





17. Reinstall the small (center) transmission fluid level indicating plug.
- Tighten to 10 Nm (89 lb-in).





18. Check the operation of the transmission by moving the selector lever slowly through each gear, stopping in each position and allowing the transmission to engage.
