Auxiliary Heater Outlet and Inlet Line - Rear

Auxiliary Heater Outlet and Inlet Line - Rear

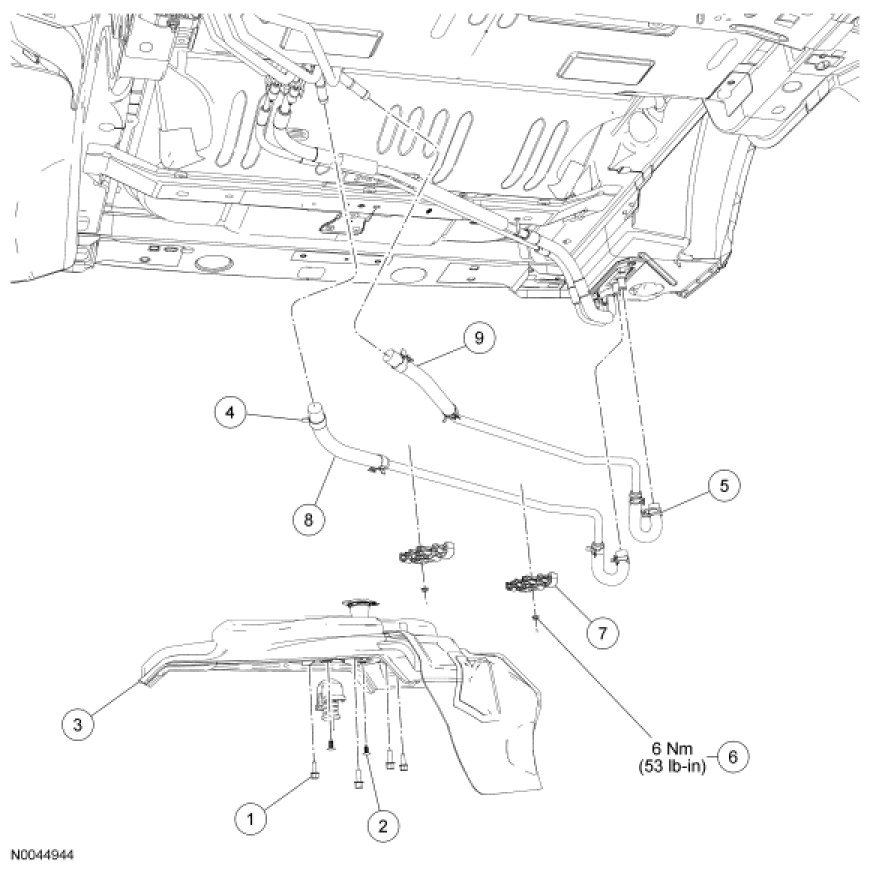

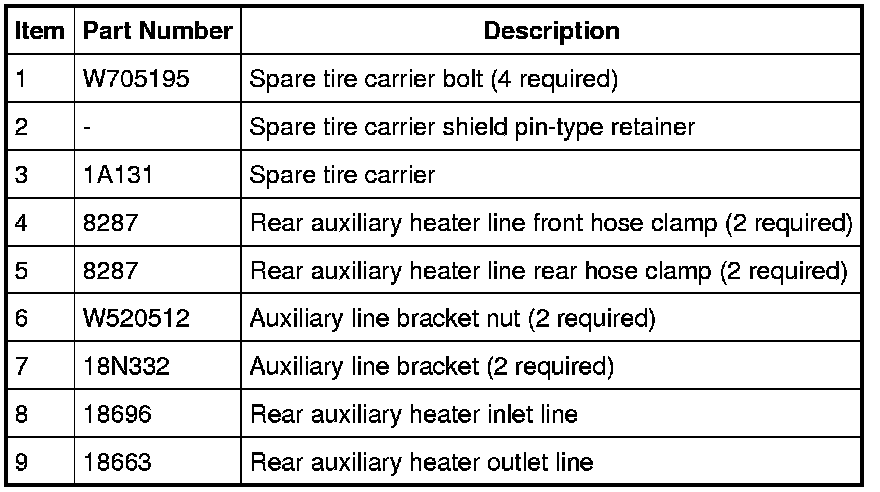

Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Vehicle Jacking and Lifting.

2. Drain the engine coolant. For additional information, refer to Cooling System &/or Engine Block Heater.

3. Remove the spare tire.

4. Remove the 4 spare tire carrier bolts and the 2 spare tire carrier shield pin-type retainers.

5. Remove the spare tire carrier.

6. Release the 2 rear auxiliary heater line front hose clamps and disconnect the hoses.

7. Release the 2 rear auxiliary heater line rear hose clamps and disconnect the hoses.

8. Remove the 2 auxiliary line bracket nuts.
- To install, tighten to 6 Nm (53 lb-in).

9. Remove the 2 auxiliary line brackets.

10. Remove the rear auxiliary heater outlet line.

11. Remove the rear auxiliary heater inlet line.

12. To install, reverse the removal procedure.

13. Fill the engine cooling system. For additional information, refer to Cooling System &/or Engine Block Heater.
