Selector Lever

Selector Lever









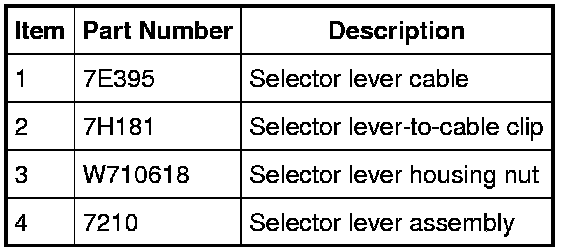

Removal

1. Remove the front floor console. For additional information, refer to Instrument Cluster / Carrier &/or Interior Moulding / Trim.

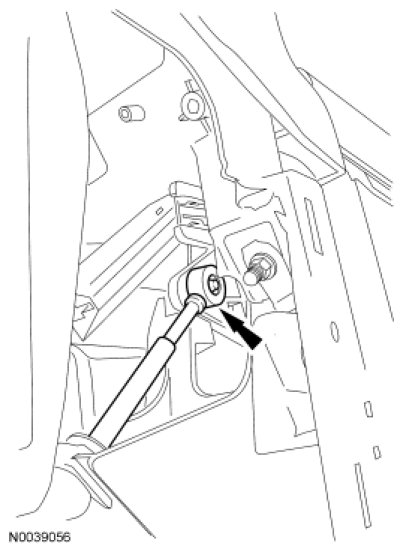

2. Disconnect the selector lever cable from the selector lever.

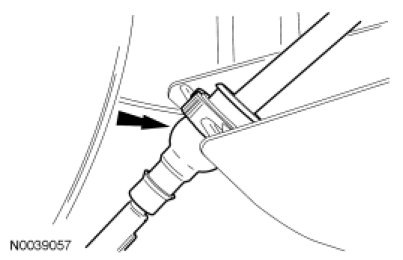

3. Disconnect the selector lever cable from the selector lever housing.

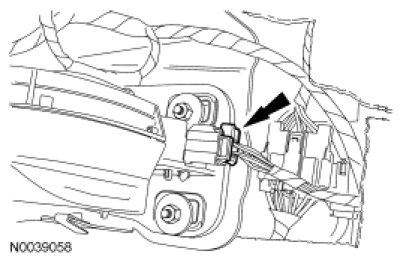

4. Disconnect the selector lever housing electrical connector.

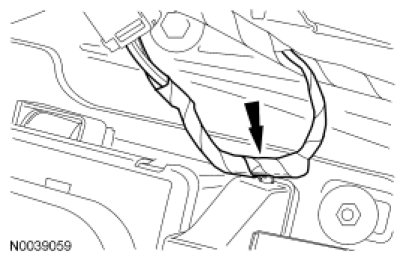

5. Disconnect the wiring harness from the selector lever housing.

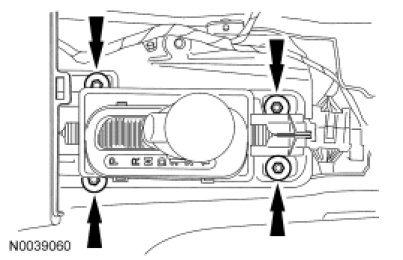

6. Remove the 4 nuts and remove the selector lever housing from the vehicle.





Installation

1. Install the selector lever housing.

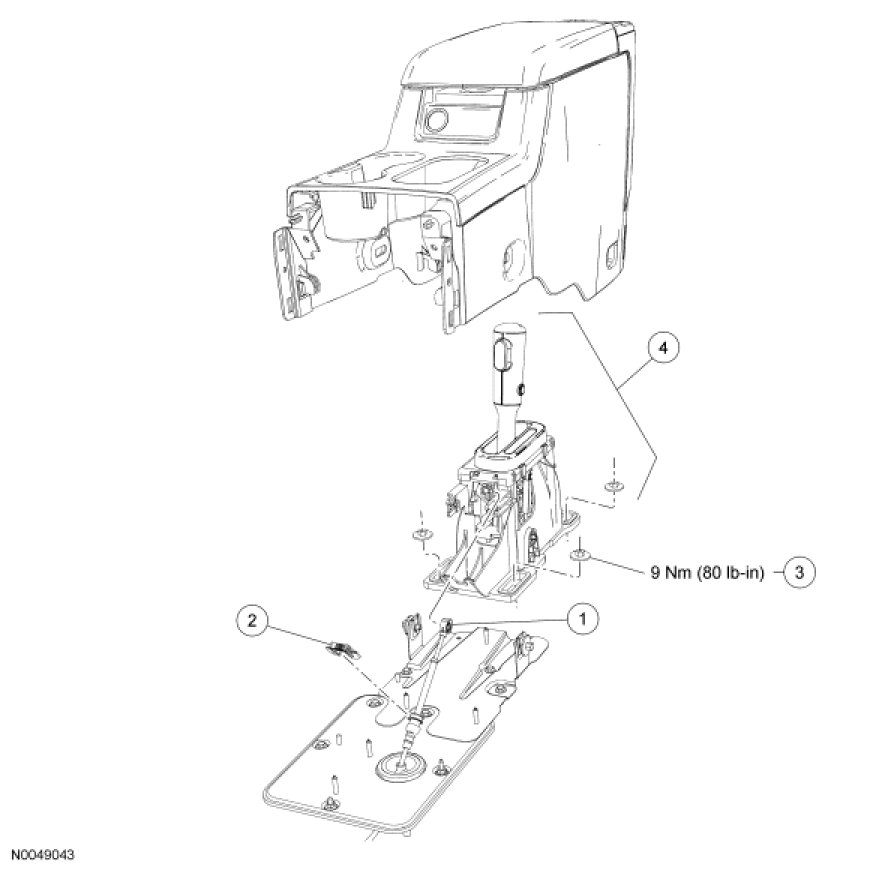

- Tighten to 9 Nm (80 lb-in).





2. Connect the wiring harness to the selector lever housing.





3. Connect the selector lever housing electrical connector.





4. Install the selector lever cable onto the selector lever housing.





5. NOTE: When installing the selector lever cable end, make sure that the selector lever cable end is correctly installed onto the selector housing. Pull back on the selector lever cable end to make sure that the selector lever cable end is correctly installed onto the selector lever housing.

Install the selector lever cable end onto the selector lever housing.





6. Install the front floor console. For additional information, refer to Instrument Cluster / Carrier &/or Interior Moulding / Trim.
