Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2010
>>
Explorer 2WD V6-4.0L
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
5R55S
>>
Diagnostic Routines
>>
Shift Concerns: 210 - 275
>>
214, Feel - Harsh (Some/All)
214, Feel - Harsh (Some/All)
Diagnostic Routines

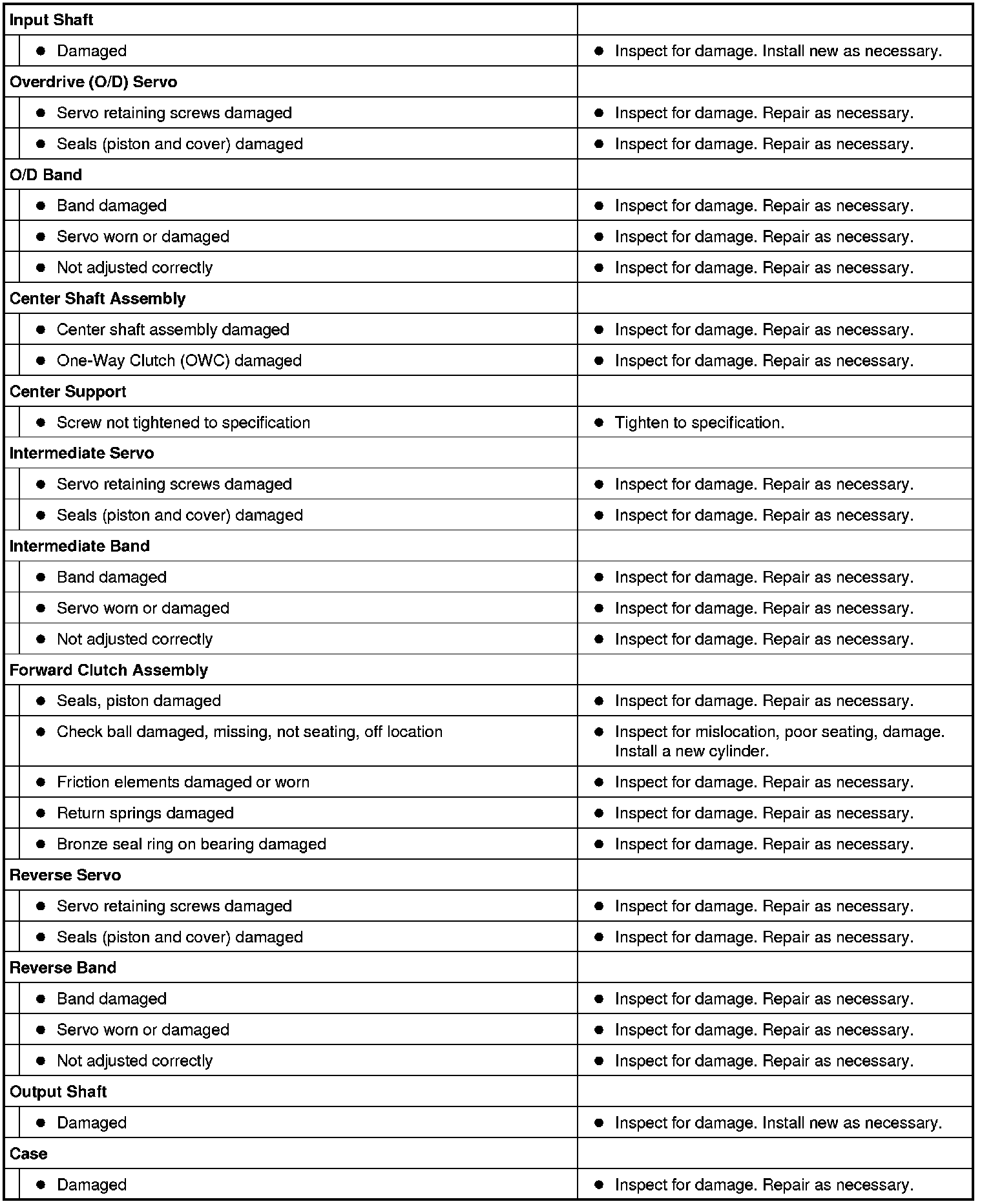

Shift Concern: Feel - Harsh (Some/All)
