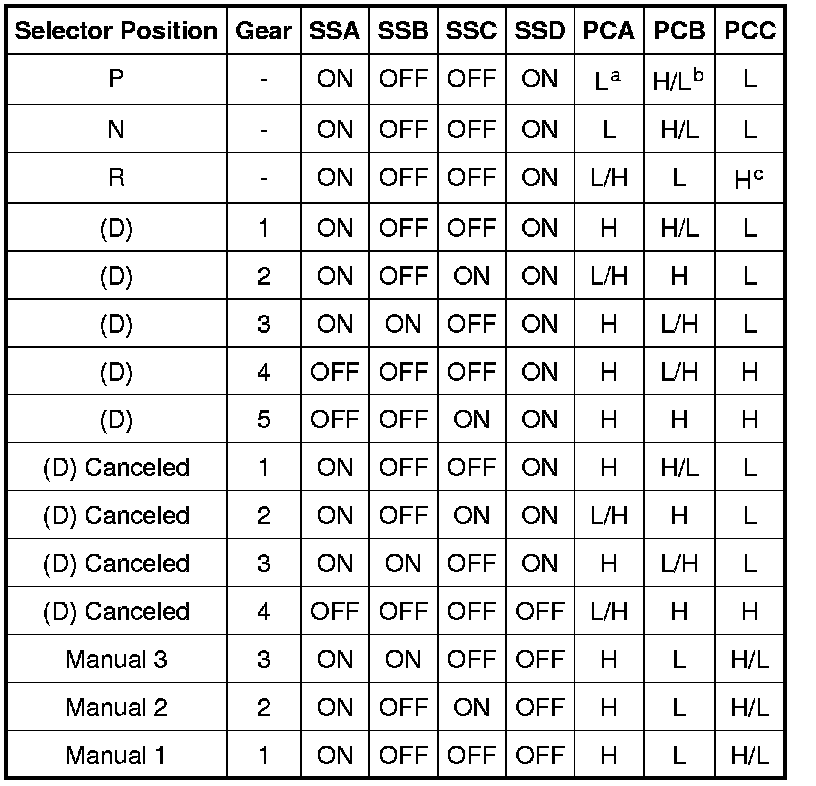

Solenoid Operation Chart
Solenoid Operation Chart
Solenoid Operation Chart
a
Low
b
PCM Controlled
c
High
