Shift Concerns: 210 - 275
>>
216, No 1st Gear In Manual 1 Position
216, No 1st Gear In Manual 1 Position
Diagnostic Routines

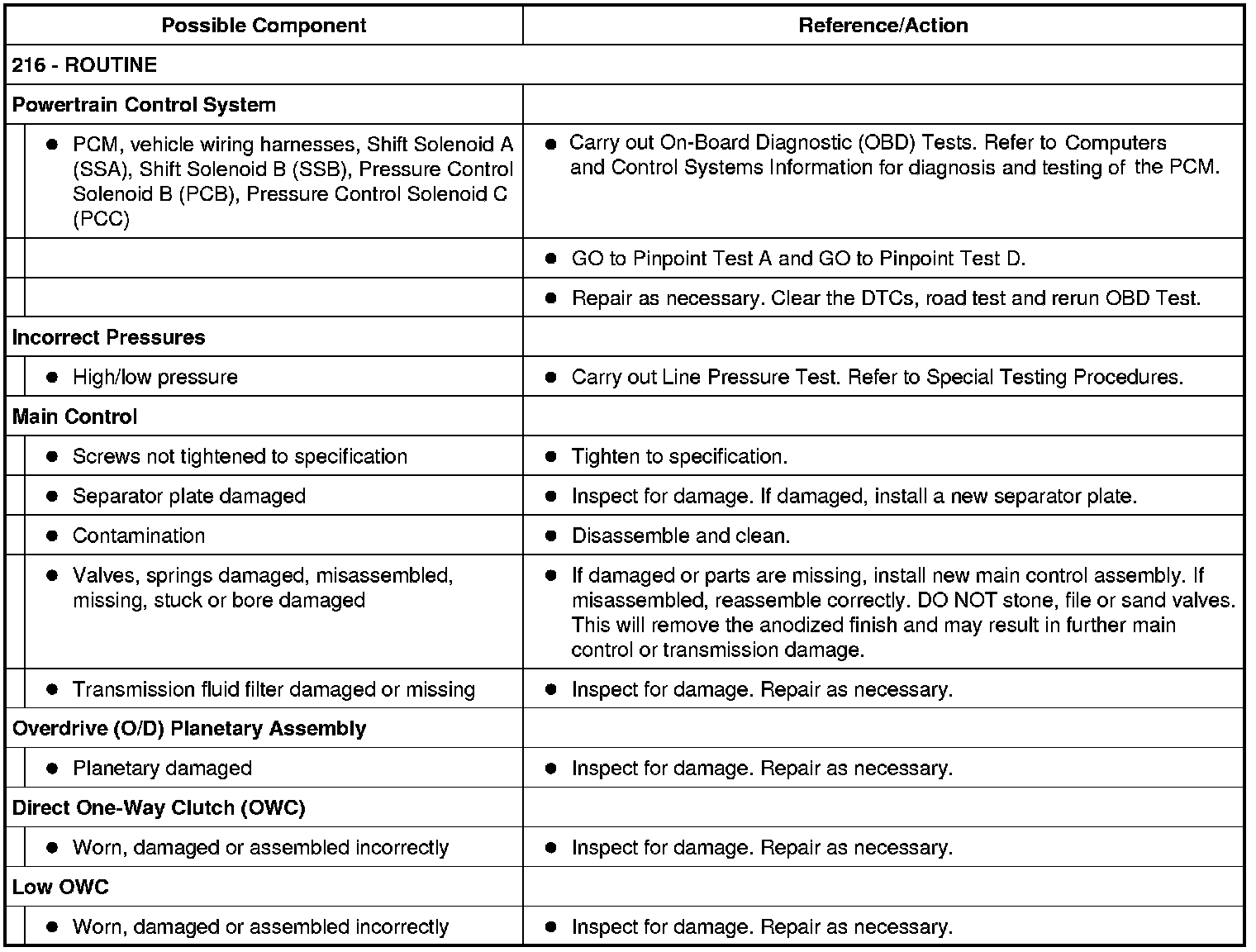

Engagement Concern: No 1st Gear in Manual 1 Position
