Front Door: Service and Repair

Door

Removal and Installation

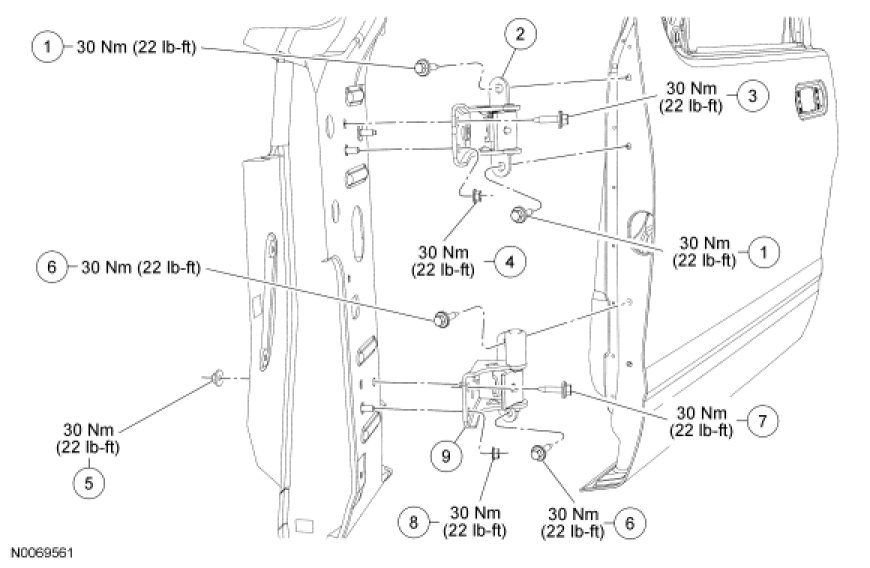

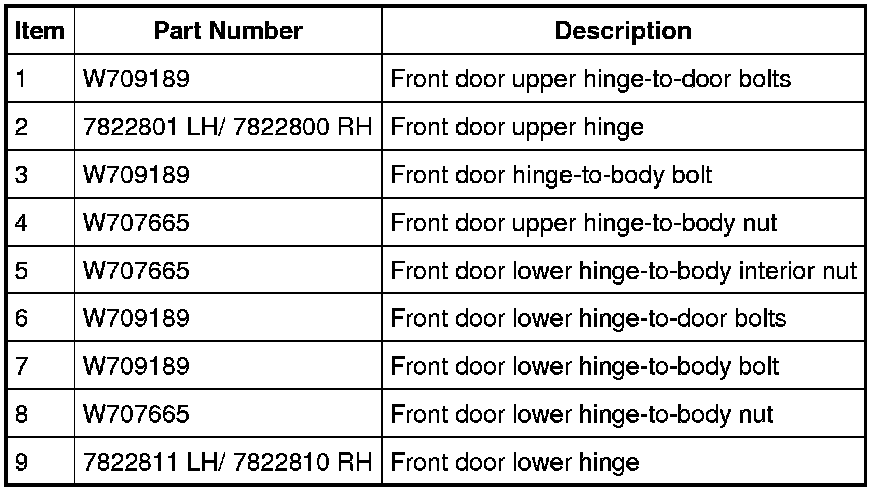

NOTE: Front door shown, rear door similar.











1. Disconnect the front door electrical connector at the A-pillar.

2. NOTICE: To minimize the possibility of cross threading, hand start all fasteners during the installation.

NOTICE: To avoid damaging the door, this step requires an assistant.

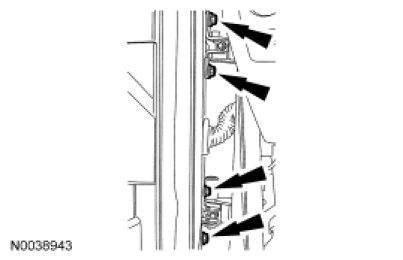

Mark the position of each hinge and remove the hinge-to-door bolts.

- To install, tighten to 30 Nm (22 lb-ft).





3. Remove the front door.
