Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2010
>>
Explorer AWD V8-4.6L
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
5R55S
>>
Diagnostic Routines
>>
Shift Concerns: 210 - 275
>>
210, Some/All Shifts Missing (Automatic Mode Only)
210, Some/All Shifts Missing (Automatic Mode Only)
Diagnostic Routines

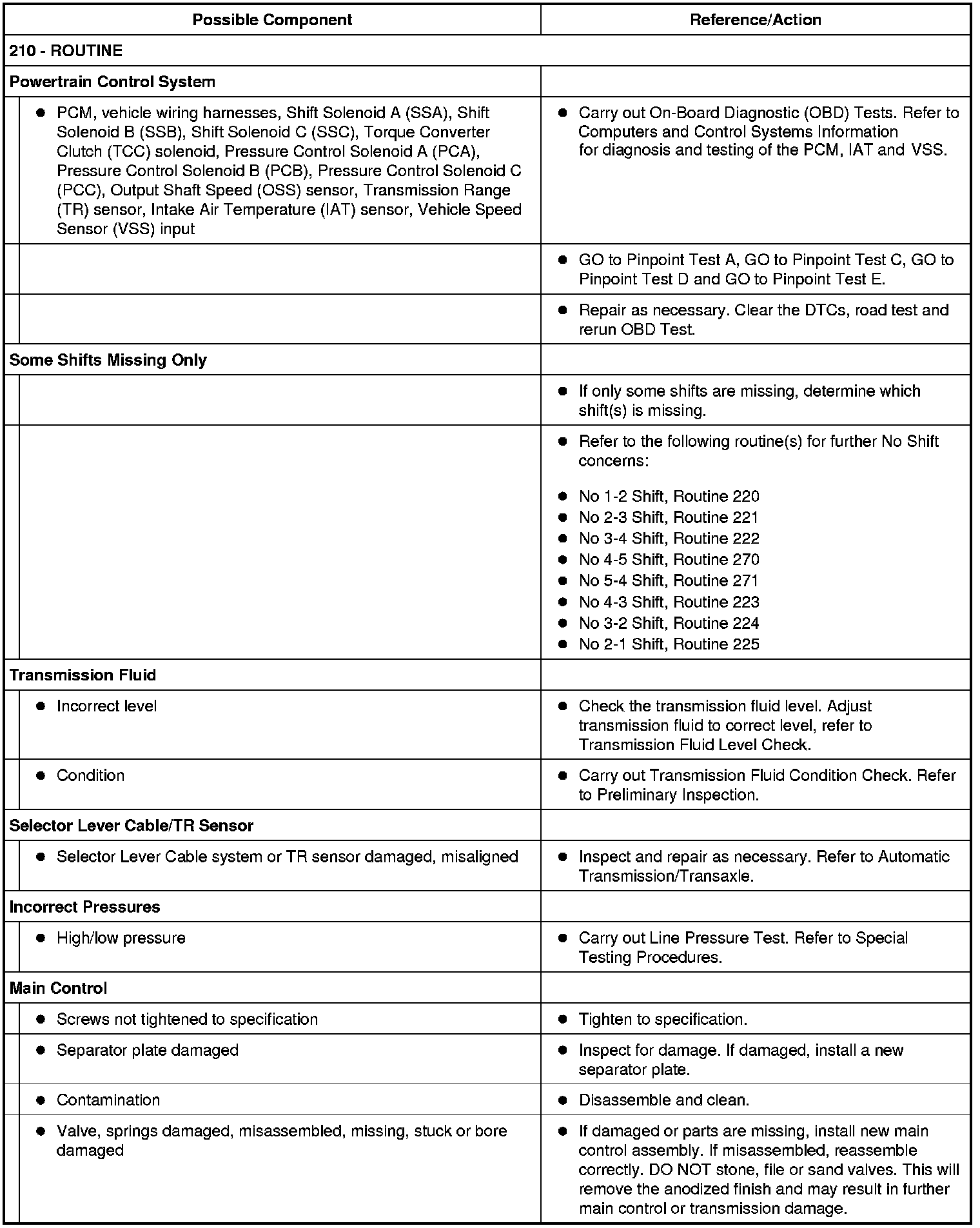

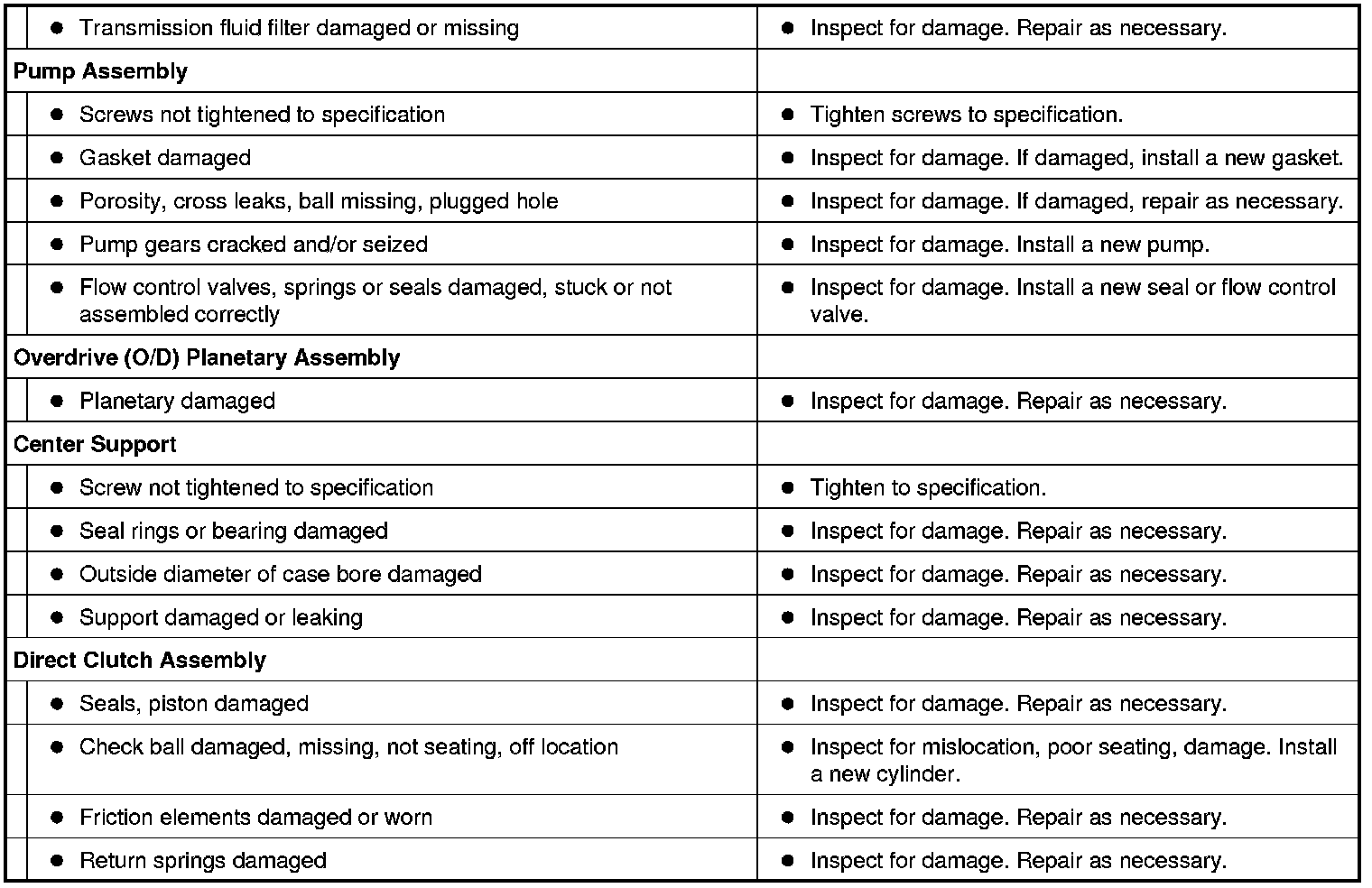

Shift Concern: Some/All Shifts Missing (Automatic Mode Only)
