Warning Indicator Bulb

Warning Indicator Bulb

Removal and Installation

1. Remove the Instrument Cluster (IC). For additional information, refer to Instrument Cluster (IC) Instrument Cluster (IC).

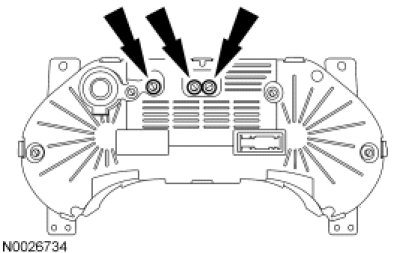

2. NOTE: To remove a warning indicator bulb, rotate the bulb one quarter turn counterclockwise and lift it out from the IC.

Remove the warning indicator bulb(s) in question.





3. To install, reverse the removal procedure.
